FTTH Networking Fiber Optic WDM , ABS Box Digital Optical Splitter 8 Channels
All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket
Contact Us
Mrs. Alice
sales03@newlightfiber.com
0086-13534063703
wechat 86 13534063703
Contact Now
FTTH Networking Fiber Optic WDM , ABS Box Digital Optical Splitter 8 Channels
  • Name
  • Name

FTTH Networking Fiber Optic WDM , ABS Box Digital Optical Splitter 8 Channels

Brand Name: New Light
Model Number: LC UPC
MOQ: 1
Price: 1~30
Packaging Details: export packing
Payment Terms: L/C, T/T, Western Union, MoneyGram, paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO ,ROSH
Brand Name:
New Light
Fiber Type:
2.0
Connector Type:
LC UPC
OEM / ODM:
Acceptable
Fiber Length:
As Your Requirement
Warranty:
3 Years
Delivery Time:
2-10 Working Days After Receive Payment
Payment:
T/T , L/C , Paypal , Westen Union , Money Gram
Products Name:
FTTH Networking ABS Box Fiber Optic Splitter 1x3 1x4 PLC Splitter WithSC Connector
Supply Ability:
1000000
Highlight:

wall mount fiber termination box

,

wdm in optical fiber

Product Description



1. Mechanical Specification

Performance Specifications





Parameter



8 Channel EAST & West MUX/DMUX
Channel Wavelength/ (nm) ITU 100 GHz Grid(C31-C38)
Center wavelength Accuracy/ (nm) ±0.05
Channel Spacing (GHz) / GHz) 100
Channel Passband (@-0.5dB bandwidth) (nm)/ ≥0.22



Insertion Loss/ (dB) EAST & West



≤2.8(with Connector)
Channel Uniformity/ (dB) ≤1.0
Channel Ripple/ (dB) ≤0.3



Isolation (dB)

 Adjacent/ >30
Non-adjacent/ >40
Polarization Dependent Loss/ (dB) <0.15
Polarization Mode Dispersion/ (PS) <0.1
Directivity/ (dB) >50
Return Loss/(dB) >45
Maximum Power Handling/ (mW) 500
Operating Temperature/ (℃) -20~+70
Storage Temperature / (℃) -40~85



2. Case



Parameters Values
Packaging Dimension LGX (EAST & West)
Fiber Type SM28e
Connector LC/PC



  • Configuration



3.1 Port Insertion Loss



No Wavelength(nm) IL(dB) Max (DEMUX) IL(dB) Max. (mux)
1 1552.52 C31 2.8 1.0
2 1551.72 C32 2.6 1.3
3 1550.92 C33 2.4 1.6
4 1550.12 C34 2.2 1.9
5 1549.32 C35 1.9 2.2
6 1548.51 C36 1.6 2.4
7 1547.72 C37 1.3 2.6
8 1546.92 C38 1.0 2.8



3.2.The principle diagram of the module



FTTH Networking Fiber Optic WDM , ABS Box Digital Optical Splitter 8 Channels 0





FTTH Networking Fiber Optic WDM , ABS Box Digital Optical Splitter 8 Channels 1

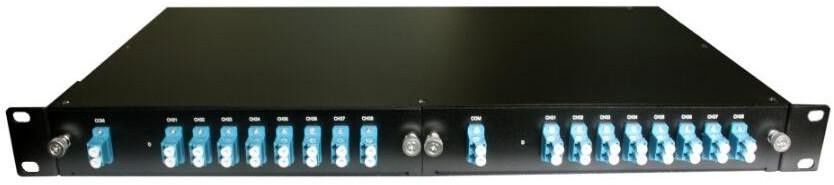

3.4 LGX(EAST and West) loaded in on a 19’1U Rack



FTTH Networking Fiber Optic WDM , ABS Box Digital Optical Splitter 8 Channels 2





Packaging : bags&carton box

  • Shipping: International Express: Fedex, DHL, UPS, TNT and EMS , or by sea ..If you have another

preferred carrier, please notify us in advance.

  • FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
  • DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.




Delivery and payment


1. T/T/ , PAYPAL , WESTEN UNION , MONEY GRAM , L/C .
2. 30% deposit in advance , 70% balance paid before delivery .
