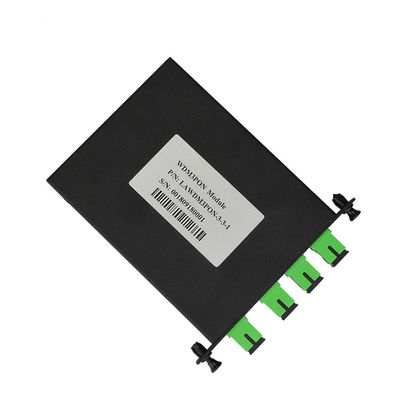

1310/1490/1550nm Single Mode Optical Fiber FWDM CWDM WDM Mux / Demux 3 Pon

Brand Name:	New Light
Model Number:	WDM
MOQ:	1
Price:	1~30
Packaging Details:	export packing
Payment Terms:	L/C, T/T, Western Union, MoneyGram, paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

New Light

Certification:

ISO ,ROSH

Model Number:

WDM

Brand Name:

New Light

OEM / ODM:

Acceptable

Warranty:

3 Years

Delivery Time:

2-10 Working Days After Receive Payment

Payment:

T/T , L/C , Paypal , Westen Union , Money Gram

Products Name:

Fiber Optic Single Mode 1310/1490/1550nm FWDM CWDM WDM Mux / Demux 3pon

Mode Type:

Plug-in Module

Insertion Loss:

≤ 0.5dB

Connector Type:

SC/UPC,SC/APC

Nuber Of Channels:

Minimum Order Quantity:

Price:

1~30

Packaging Details:

export packing

Delivery Time:

7~15 working days

Payment Terms:

L/C, T/T, Western Union, MoneyGram, paypal

Supply Ability:

1000000

Highlight:

wall mount fiber termination box

wdm in optical fiber

Product Description

FTTH ABS Box 1x16 Channel Fiber Optic CWDM Module with LC Connectors Mux/Demux

3 port FWDM use the thin film filter to ensure high quality and perfect optical performance. It can achieve

1310/1490, 1550 two channel optical signal Mux and Demux, and was widely used in CATV, Telecommunications, Internet and so on. 3 Wavelengths, 1RU 19” rack mount chassis, 8 slots & Standalone

Parameter		Unit	Specification
Pass band wavelength range		nm	1540~1620
Reflection band wavelength range			1260~1500
Insertion loss	Reflec channel	dB	≤ 0.5
Insertion loss	Pass channel	dB	≤ 0.6
Isolation	Reflec channel	dB	≥24
Isolation	Pass channel		≥30
Polarization dependent loss		dB	≤ 0.1
Ripple in Pass band		dB	≤ 0.4
Return loss		dB	≥ 50
Directivity		dB	≥ 50
Insertion loss temperature sensitivity		dB/°C	≤ 0.005
Operating temperature		°C	-10~70
Storage temperature		°C	-40~85
Fiber type		/	Corning SMF-28e
Connector type		COM	SC/APC
		P1550	SC/APC
		R1310/1490	SC/UPC

Features

Cost-effective CWDM technology

Wide Operating Wavelength Range

Low Insertion Loss

Ultra Flat Wide Pass band

High Channel Isolation

High Stability and reliability

1×N CWDM Mux/Demux Module

OADM

ITU

Channels Number

Application Type

Central Wavelength

Fiber diameter

Fiber Length

Connector

1=100G

2=200G

4=4 Channels

8=8 Channels

16=16 Channels

M=Mux
D=DeMux

41=1410nm

43=1430nm

45=1450nm

47=1470nm

49=1490nm

51=1510nm
53=1530nm
55=1550nm
57=1570nm
59=1590nm

1=250um

2=900um

3=2.0mm

4=3.0mm

XX=Other

05=0.5m

10=1.0m

15=1.5m

20=2.0m

XX=Other

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC

X=Other

Applications:

CWDM System

Add/Drop

PON Networks

CATV Links

1310/1490/1550nm Single Mode Optical Fiber FWDM CWDM WDM Mux / Demux 3 Pon 0

Compliance:

Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS

Packaging : bags&carton box

Shipping: International Express: Fedex, DHL, UPS, TNT and EMS , by air or by sea ..If you have another

preferred carrier, please notify us in advance.

Delivery and payment

1. T/T/ , PAYPAL , WESTEN UNION , MONEY GRAM , L/C .
2. 30% deposit in advance , 70% balance paid before delivery .
