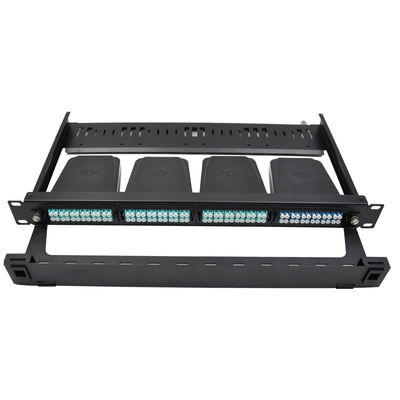

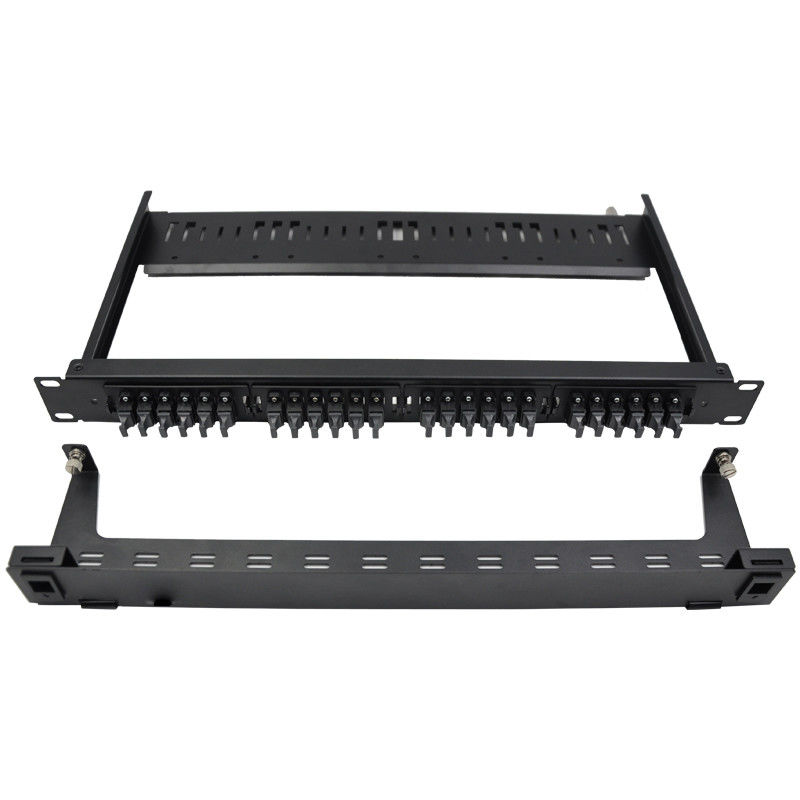

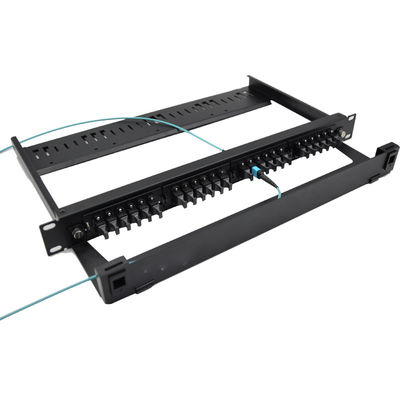

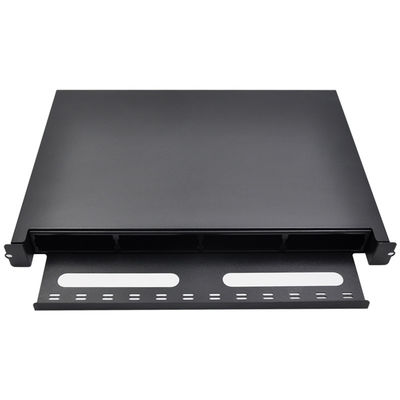

1U Rack Mount Fiber Optic Patch Panel with 96core LC and Pull-Type Box for High Density Applications

Brand Name: NL
Model Number: 1U
MOQ: 1~10000
Price: 10~100
Packaging Details: Nomal packing 495*260*55mm
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001
Capacity:
4x MTP-12 Cassettes
Standard:
1U
Installation:
Standard EIA 19" Rack Rails
Enclosure Type:
Rack Mountable
No. Of Rack Spaces:
1U
Fiber Count:
96core LC
Dimensions (HxWxD):
430*362.4*44mm
Material Thick:
1.2T
Patch Pannel:
SC/LC/FC/ST
Adaptor:
SC/LC/FC/ST/E2000/MPO/MTP
Combination:
Pull-type Box
Apply To:
Data Center & Cloud Computing
Supply Ability:
1000set per day
Highlight:

odf fiber optic patch panel

,

fiber optic distribution box

Product Description
High Density Optical Fiber Distribution Frame
1U rack mount FHD fiber optic patch panel that holds up to 4x MTP-12 cassettes
Product Overview
The MPO/multi-fiber cabling system is ideally suited for high-density environments requiring space-saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber output. We also offer a comprehensive range of MPO products including cassettes, modules, and enclosures.
1U Rack Mount Fiber Optic Patch Panel with 96core LC and Pull-Type Box for High Density Applications 0
Key Features
  • Improves and simplifies fiber routing
  • Decreases fiber management space requirements
  • Low insertion loss and reflectance
  • High density design for maximum efficiency
Applications
  • Optical System Access Network
  • Telecommunications networks
  • Broadband/CATV networks
  • Data communications networks, including high-bandwidth equipment
Product Application
SPCC (black coating) fiber optic distribution frame enclosures provide interconnect or cross-connect capabilities between backbone horizontal cable and active equipment while using minimum rack space. These enclosures facilitate easy installation of pre-terminated solutions and are ideal for ultra high-density fiber applications in data centers, equipment rooms, and central offices.
1U Rack Mount Fiber Optic Patch Panel with 96core LC and Pull-Type Box for High Density Applications 1
Product Specifications
Specification Details
No. of Rack Spaces 1U
Fiber Count 96 core LC; 48 core SC
Enclosure Type Rack Mountable
Material SPCC (Black coating)
Installation Standard EIA 19" Rack Rails
Dimensions (HxWxD) 430 * 362.4 * 44mm
Standards Compliance
TIA/EIA-568-C.3
Technical Specifications
Type/Performance Singlemode (APC polish) Multimode (PC/Flat Polish)
Standard / Elite Low Loss Standard / Elite Low Loss
Maximum Insertion Loss ≤ 0.75dB / ≤ 0.35dB ≤ 0.60dB / ≤ 0.35dB
Return Loss ≥ 50dB / N/A N/A
Operating Temperature -40°C to 80°C 40°C to 80°C
Test Wavelength 1310nm 850nm
Application in Network Layout
1U Rack Mount Fiber Optic Patch Panel with 96core LC and Pull-Type Box for High Density Applications 2
MTP Products Standards Compliance
  • Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5 (FOCIS5); Telcordia GR-1435-CORE compliant
  • Structured cabling per TIA-568-C
  • Parallel Optics
    • Optical Internetworking Forum (OIF) Compliant
    • InfiniBand Compliant
  • InfiniBand Compliant
  • 10G Fiber Channel Compliant
  • 40G and 100G IEEE 802.3
  • QSFP Compliant
