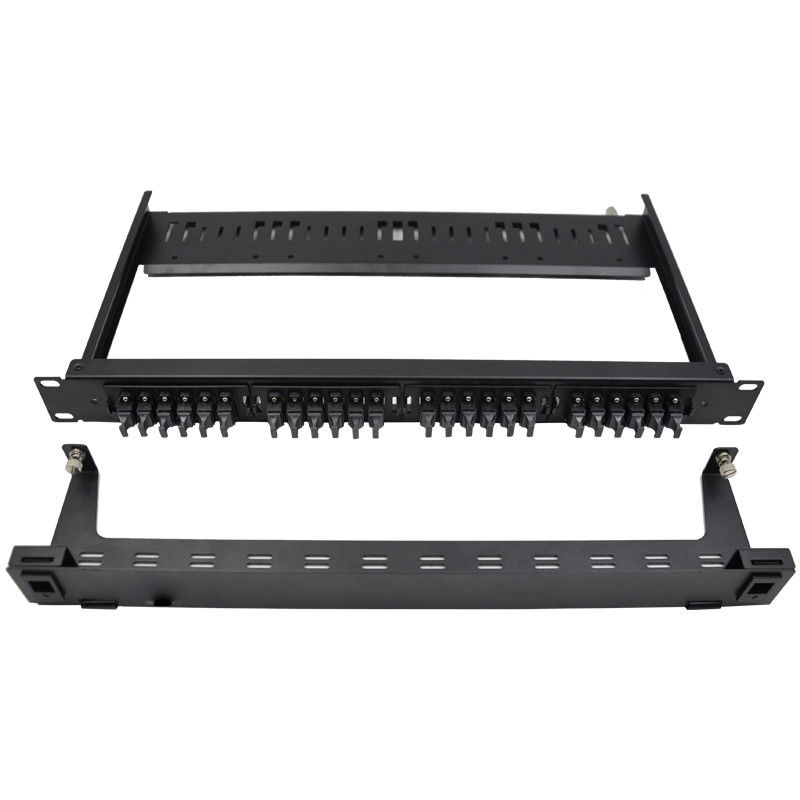

1U Rack Mount Fiber Optic Patch Panel with 96core LC and Pull-Type Box for High Density Applications

Brand Name: NL
Model Number: 1U
MOQ: 1~10000
Price: 10~100
Packaging Details: Nomal packing 495*260*55mm
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001
Capacity:
4x MTP-12 Cassettes
Standard:
1U
Installation:
Standard EIA 19" Rack Rails
Enclosure Type:
Rack Mountable
No. Of Rack Spaces:
1U
Fiber Count:
96core LC
Dimensions (HxWxD):
430*362.4*44mm
Material Thick:
1.2T
Patch Pannel:
SC/LC/FC/ST
Adaptor:
SC/LC/FC/ST/E2000/MPO/MTP
Combination:
Pull-type Box
Apply To:
Data Center & Cloud Computing
Supply Ability:
1000set per day
Highlight:

odf fiber optic patch panel

,

fiber optic distribution box

Product Description
High Density Optical Fiber Distribution Frame
1U rack mount FHD fiber optic patch panel that holds up to 4x MTP-12 cassettes
Product Overview
The MPO/multi-fiber cabling system is ideally suited for high-density environments requiring space-saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber output. We also offer a comprehensive range of MPO products including cassettes, modules, and enclosures.
High Density Optical Fiber Distribution Frame 1U Rack Mount
Key Features
  • Improves and simplifies fiber routing
  • Decreases fiber management space requirements
  • Low insertion loss and reflectance
  • High density design for maximum efficiency
Applications
  • Optical System Access Network
  • Telecommunications networks
  • Broadband/CATV networks
  • Data communications networks, including high-bandwidth equipment
Product Application
SPCC (black coating) fiber optic distribution frame enclosures provide interconnect or cross-connect capabilities between backbone horizontal cable and active equipment while using minimum rack space. These enclosures facilitate easy installation of pre-terminated solutions and are ideal for ultra high-density fiber applications in data centers, equipment rooms, and central offices.
Fiber Optic Distribution Frame Installation Example
Product Specifications
Specification Details
No. of Rack Spaces 1U
Fiber Count 96 core LC; 48 core SC
Enclosure Type Rack Mountable
Material SPCC (Black coating)
Installation Standard EIA 19" Rack Rails
Dimensions (HxWxD) 430 * 362.4 * 44mm
Standards Compliance
TIA/EIA-568-C.3
Technical Specifications
Type/Performance Singlemode (APC polish) Multimode (PC/Flat Polish)
Standard / Elite Low Loss Standard / Elite Low Loss
Maximum Insertion Loss ≤ 0.75dB / ≤ 0.35dB ≤ 0.60dB / ≤ 0.35dB
Return Loss ≥ 50dB / N/A N/A
Operating Temperature -40°C to 80°C 40°C to 80°C
Test Wavelength 1310nm 850nm
Application in Network Layout
Network Layout Application Diagram
MTP Products Standards Compliance
  • Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5 (FOCIS5); Telcordia GR-1435-CORE compliant
  • Structured cabling per TIA-568-C
  • Parallel Optics
    • Optical Internetworking Forum (OIF) Compliant
    • InfiniBand Compliant
  • InfiniBand Compliant
  • 10G Fiber Channel Compliant
  • 40G and 100G IEEE 802.3
  • QSFP Compliant
