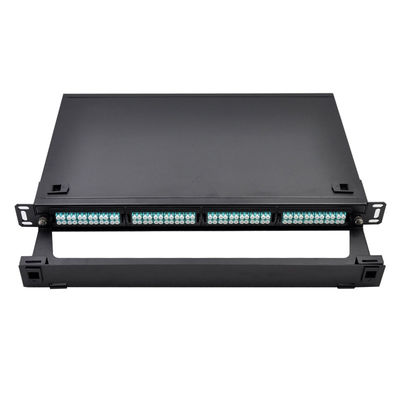

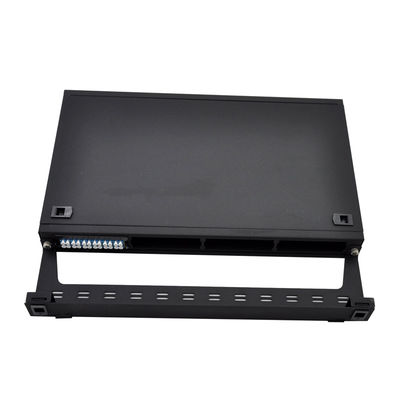

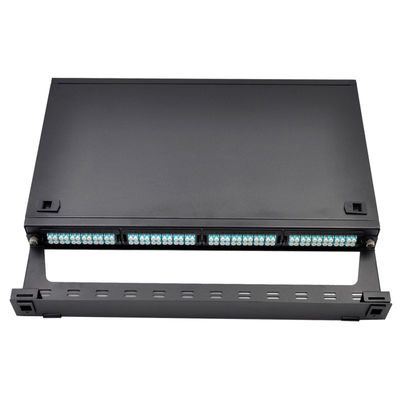

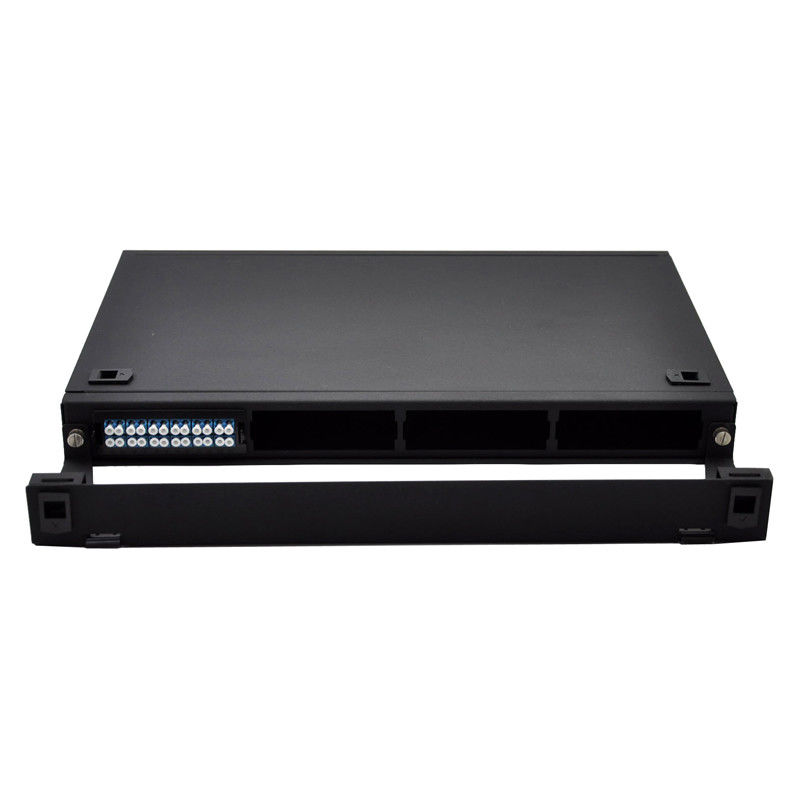

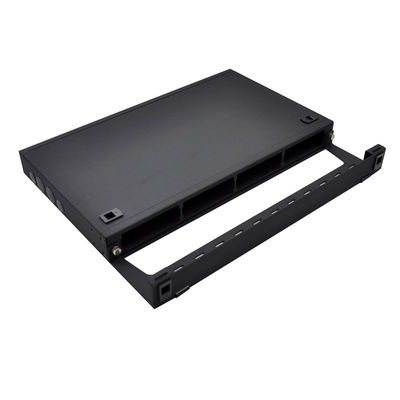

1U Rack Mountable Fiber Optic Patch Panel with 96core LC and 4x MTP-24 Cassettes for High Density Data Centers

Brand Name: NL
Model Number: 1U
MOQ: 1~10000
Price: 10~100
Packaging Details: Nomal packing 495*260*55mm
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001
Capacity:
4x MTP-24 Cassettes
Standard:
1U
Installation:
Standard EIA 19" Rack Rails
Enclosure Type:
Rack Mountable
No. Of Rack Spaces:
1U
Fiber Count:
96core LC
Dimensions (HxWxD):
430*362.4*44mm
Material Thick:
1.2T
Patch Pannel:
SC/LC/FC/ST
Adaptor:
SC/LC/FC/ST/E2000/MPO/MTP
Combination:
Pull-type Box
Apply To:
Data Center & Cloud Computing
Supply Ability:
1000set per day
Highlight:

odf fiber optic patch panel

,

fiber optic distribution box

Product Description
1U Rack Mountable FHD Fiber Optic Patch Panel
High-density 1U rack mount fiber optic patch panel designed to hold up to 4x MTP-24 cassettes for efficient fiber management.
Key Features
  • 12 core fiber configuration available
  • Cross Connection: AB/BA
  • Parallel Connection: AB/AB
  • Compact design for space optimization
  • Easy cable management system
  • Low IL & Standard IL insertion loss options
  • Customizable connection methods for QSFP requirements
Applications
  • Telecom systems
  • Structured cabling systems
  • High density optical laser applications
  • QSFP devices and equipment
Product Overview
MPO multi-fiber cabling system is engineered for high-density environments requiring space-saving solutions and innovative cable management. MPO fan-out supports various connections from multi-fiber to single-fiber outputs. Our comprehensive MPO product line includes cassettes, modules, and enclosures that provide secure transitions between MPO and LC or SC connections.
1U Rack Mountable Fiber Optic Patch Panel with 96core LC and 4x MTP-24 Cassettes for High Density Data Centers 0
Application Details
SPCC (black coating) fiber optic distribution frame enclosures provide interconnect or cross-connect capabilities between backbone horizontal cables and active equipment while minimizing rack space utilization. These enclosures facilitate easy installation of pre-terminated solutions and are ideal for ultra high-density fiber applications in data centers, equipment rooms, and central offices.
1U Rack Mountable Fiber Optic Patch Panel with 96core LC and 4x MTP-24 Cassettes for High Density Data Centers 1
Product Specifications
Specification Details
Rack Spaces 1U
Fiber Count 96 core LC; 48 core SC
Enclosure Type Rack Mountable
Material SPCC (Black Coating)
Installation Standard EIA 19" Rack Rails
Dimensions (HxWxD) 430 * 362.4 * 44mm
Standards Compliance
TIA/EIA-568-C.3
Technical Specifications
Type/Performance Singlemode (APC polish) Multimode (PC / Flat Polish)
Standard | Elite Low Loss Standard | Elite Low Loss
Maximum Insertion Loss ≤ 0.75dB | ≤ 0.35dB ≤ 0.60dB | ≤ 0.35dB
Return Loss ≥ 50dB N/A
Operating Temperature -40°C to 80°C 40°C to 80°C
Test Wavelength 1310nm 850nm
Network Layout Application
1U Rack Mountable Fiber Optic Patch Panel with 96core LC and 4x MTP-24 Cassettes for High Density Data Centers 2
MTP Products Standards Compliance
  • IEC Standard IEC-61754-7; JIS C5982; TIA-604-5 (FOCIS5); Telcordia GR-1435-CORE compliant
  • Structured cabling per TIA-568-C
  • Parallel Optics:
    • Optical Internetworking Forum (OIF) Compliant
    • InfiniBand Compliant
  • InfiniBand Compliant
  • 10G Fiber Channel Compliant
  • 40G and 100G IEEE 802.3
  • QSFP Compliant
