Optical Fiber Patch Cord

E2000 APC Single Mode Duplex Fiber Optic Patch Cord with LSZH Material and Customizable Length

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

E2000 APC Single Mode Duplex Fiber Optic Patch Cord with LSZH Material and Customizable Length

Brand Name:	New Light
Model Number:	E2000 APC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Products Name:

E2000 APC Optical Fiber Patch Cord Single Mode Duplex 5m Length LSZH Material

Connector Type:

E2000 APC

Mode Type:

Single Mode

Cable Type:

G657A1

Cable Material:

Cable Diameter:

2.0mm

Cable Color:

Yellow

Length:

Can Be Customized

Fiber Count:

Duplex

Insertion Loss:

≤ 0.3dB

Return Loss:

≥60dB

OEM /ODM:

Acceptable

Products Name:

E2000 APC Optical Fiber Patch Cord Single Mode Duplex 5m Length LSZH Material

Connector Type:

E2000 APC

Mode Type:

Single Mode

Cable Type:

G657A1

Cable Material:

Cable Diameter:

2.0mm

Cable Color:

Yellow

Length:

Can Be Customized

Fiber Count:

Duplex

Insertion Loss:

≤ 0.3dB

Return Loss:

≥60dB

OEM /ODM:

Acceptable

Supply Ability:

1000000

Highlight:

single mode fiber optic cable

duplex fiber patch cord

Product Description

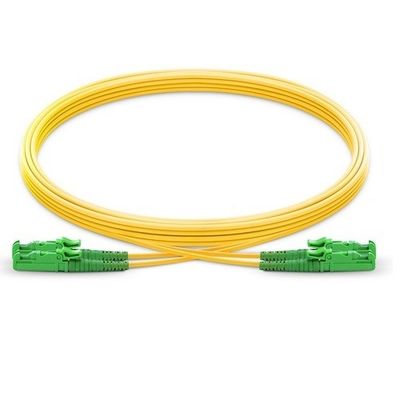

E2000 APC Optical Fiber Patch Cord

Product Overview

The E2000 APC single mode duplex fiber optic patch cord features a unique dust cap design that remains securely attached to the connector, eliminating the risk of lost caps during transport and use. This 5-meter yellow LSZH cable provides reliable optical connectivity with superior protection for the ferrule surface.

The innovative E2000 connector design allows easy access - simply press the button near the boot to open the protective cap. This single mode duplex patch cord includes four connectors and is available in standard yellow coloring for single mode applications, with customization options available.

Technical Specifications

Parameter	Specification
Product Name	E2000 APC Optical Fiber Patch Cord Single Mode Duplex 5m Length LSZH Material
Mode Type	Single Mode
Cable Count	Duplex (simplex and other options available)
Core Type	G657A1 (G652D/G657A1/G657A2/G657B3/G655 available)
Cable Color	Yellow (customizable)
Cable Diameter	2.0mm (3.0mm and custom diameters available)
Patch Cord Length	5 meters (custom lengths available)
Jacket Material	LSZH (PVC available)
Insertion Loss	≤ 0.3dB (≤ 0.1dB available)
Return Loss	≥55-60 dB
Ferrule Polish	APC
Connector Color	Green
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
Cable Print	Standard print (customizable)
OEM/ODM	Acceptable
Warranty	3 years after delivery

Connector Type

How to Order

Connector Type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode Type: Single mode (UPC and APC) / Multi mode (PC)
Cable Diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
Coating Material: PVC / LSZH
Fiber Count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core
Cable Type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch Cord Length: Custom lengths according to your requirements

Frequently Asked Questions

1. Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

2. What's your MOQ?

MOQ can be 1 piece, but we don't recommend ordering single pieces as the cost and price will be higher. Larger quantities receive better pricing.

3. What's the price?

Pricing depends on quantity. We provide our best pricing upon receiving your quantity requirements. Large quantities receive competitive pricing.

4. Can you quote FOB price?

Yes, but due to small size and weight, most shipments go by air (DHL, TNT, UPS, FEDEX). EXW price or CFR price is recommended. Contact us for freight solutions.

5. How is your quality?

We produce according to IEC and European standards in near dust-free workshops using imported production and quality control equipment. All products are 100% tested before delivery.

6. What's your lead time?

We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are in stock. We accommodate urgent orders.

7. What's your warranty?

Patch cords have a 2-year warranty for non-artificial damage. For artificial damage, we repair free of charge but freight is paid by customer.

8. What's your packing?

We use international export packaging and can print your logo on packaging.

9. Can you do OEM/ODM?

Yes, we accept OEM/ODM and can sign confidentiality agreements.

10. Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays freight). For high-value products, sample charges apply but are refunded with orders.

11. How can I order?

Send inquiry with product specifications, quantity, and delivery address
We provide pricing and lead time
Upon acceptance, we issue Proforma Invoice
Production begins after payment
We confirm delivery information and provide tracking
We support long-term cooperation

12. What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.

Packaging Reference
