| Brand Name: | New Light |
| Model Number: | E2000 APC |
| MOQ: | 10 pcs |
| Price: | can be negotiated |
| Packaging Details: | opp bag + carton box |
| Payment Terms: | T/T, Western Union, MoneyGram,paypal |
Optic Fiber Patch Cord Product Name:

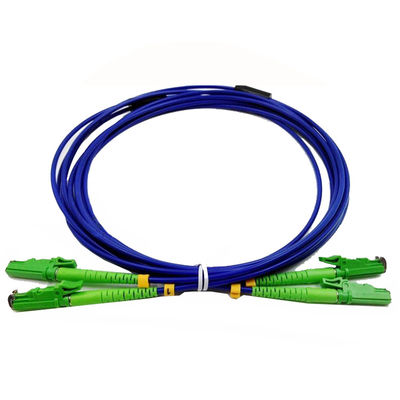

Armored cable E2000 APC single mode type blue cable fiber optic patch cord duplex cable
Optic Fiber Patch Cord Description:
The Armored cable have indoor and outdoor type . We usually use PVC and LSZH material on cable out jaket for the indoor armored cable .
About the Armored cable E2000 APC single mode type blue cable fiber optic patch cord duplex cable , we use indoor armored cable and each fiber use 600um tight buffer ,steel tube protect ,reinforcing steel-wire braiding ( aramid yarn) ,flame-retardant jacket . High indentation strength .gopher protected , small diameter , flexibility and easy bend .
The Armored cable E2000 APC patch cord can rodent resistance .
Optic Fiber Patch Cord Feature
Optic Fiber Patch Cord Parameter
| products name | Armored cable E2000 APC single mode type blue cable fiber optic patch cord duplex cable |
| mode type | single mode |
| cable count | duplex ( can be simplex or others) |
| core type | G652D ( single mode core have G652D/G657A1/G657A2/G657B3/G655) |
| cable color | Blue ( can be customized according to your request ) |
| cable diameter | 3.0 ( can be 2.0 and customized diameter ) |
| patch cord length | 3 meter ( can be customized according to your request ) |
| out jacket material | PVC ( can be PVC or LSZH ) |
| insertion loss | ≤ 0.3dB ( can be ≤ 0.1dB ) |
| return loss | ≥55-60 dB |
| wave length | 1310/1550 |
| ferrule polished | APC |
| connector color | green |
| ferrule material | ceramic |
| operater temperature | -40~ +85℃ |
| cable print | standard print ( can customized ) |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
Optic Fiber Patch Cord Connector type :
How To Order Optic Fiber Patch Cord:
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirements
FQA :
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 working days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products accept OEM /ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide the sample for free . But freight repaid by your side .
For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice with our bank account .
4. We will arrange the production for you after we received payment .
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
Packing for reference :
|
| Brand Name: | New Light |
| Model Number: | E2000 APC |
| MOQ: | 10 pcs |
| Price: | can be negotiated |
| Packaging Details: | opp bag + carton box |
| Payment Terms: | T/T, Western Union, MoneyGram,paypal |
Optic Fiber Patch Cord Product Name:
Armored cable E2000 APC single mode type blue cable fiber optic patch cord duplex cable
Optic Fiber Patch Cord Description:
The Armored cable have indoor and outdoor type . We usually use PVC and LSZH material on cable out jaket for the indoor armored cable .
About the Armored cable E2000 APC single mode type blue cable fiber optic patch cord duplex cable , we use indoor armored cable and each fiber use 600um tight buffer ,steel tube protect ,reinforcing steel-wire braiding ( aramid yarn) ,flame-retardant jacket . High indentation strength .gopher protected , small diameter , flexibility and easy bend .
The Armored cable E2000 APC patch cord can rodent resistance .
Optic Fiber Patch Cord Feature
Optic Fiber Patch Cord Parameter
| products name | Armored cable E2000 APC single mode type blue cable fiber optic patch cord duplex cable |
| mode type | single mode |
| cable count | duplex ( can be simplex or others) |
| core type | G652D ( single mode core have G652D/G657A1/G657A2/G657B3/G655) |
| cable color | Blue ( can be customized according to your request ) |
| cable diameter | 3.0 ( can be 2.0 and customized diameter ) |
| patch cord length | 3 meter ( can be customized according to your request ) |
| out jacket material | PVC ( can be PVC or LSZH ) |
| insertion loss | ≤ 0.3dB ( can be ≤ 0.1dB ) |
| return loss | ≥55-60 dB |
| wave length | 1310/1550 |
| ferrule polished | APC |
| connector color | green |
| ferrule material | ceramic |
| operater temperature | -40~ +85℃ |
| cable print | standard print ( can customized ) |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
Optic Fiber Patch Cord Connector type :
How To Order Optic Fiber Patch Cord:
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirements
FQA :
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 working days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products accept OEM /ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide the sample for free . But freight repaid by your side .
For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice with our bank account .
4. We will arrange the production for you after we received payment .
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
Packing for reference :
