Armored E2000 APC Optical Fiber Patch Cord with High Indentation Strength and Duplex Fiber Count

Brand Name:	New Light
Model Number:	E2000 APC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Products Name:

Armored E2000 APC Optical Fiber Patch Cord Duplex Fiber Count High Indentation Strength

Mode Type:

Single Mode

Cable Type:

G652D Armored Cable

Cable Material:

Cable Diameter:

3.0mm

Cable Color:

Length:

3M (can Be Customized)

Fiber Count:

Duplex

Insertion Loss:

≤ 0.3dB

Return Loss:

≥60dB

OEM /ODM:

Acceptable

Supply Ability:

1000000

Highlight:

single mode fiber optic cable

duplex fiber patch cord

Product Description

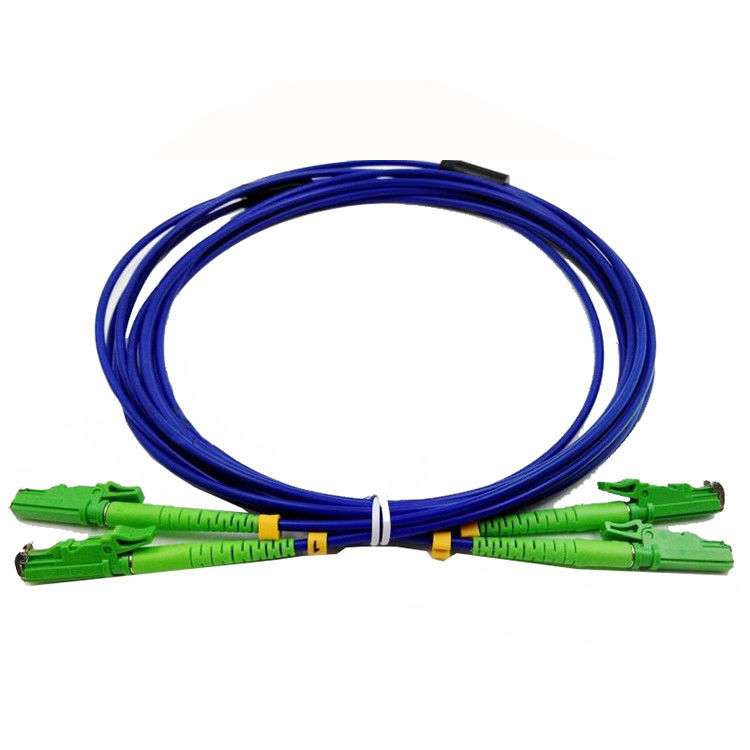

Armored E2000 APC Optical Fiber Patch Cord

This armored E2000 APC single mode duplex fiber optic patch cord features a blue cable design with high indentation strength. Available in both indoor and outdoor configurations, it utilizes PVC or LSZH jacket materials for indoor applications.

Product Features

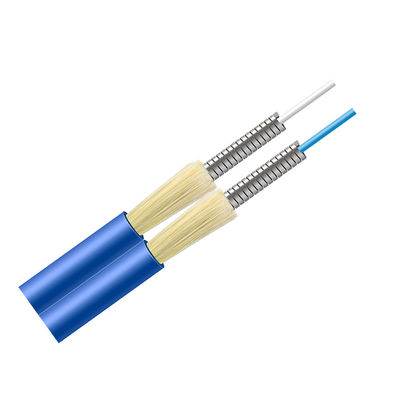

Mini diameter SUS spring tube reinforcement provides 3000N crush resistance
Dupont Kevlar strengthening delivers 300N+ tensile strength
Outer jacket complies with UL and RoHS standards
Lightweight, flexible design with excellent bend performance
Rodent-resistant construction for enhanced durability

Technical Specifications

Parameter	Specification
Mode Type	Single Mode
Cable Count	Duplex (simplex and other configurations available)
Core Type	G652D (G657A1/G657A2/G657B3/G655 available)
Cable Color	Blue (custom colors available)
Cable Diameter	3.0mm (2.0mm and custom diameters available)
Patch Cord Length	3 meters (custom lengths available)
Insertion Loss	≤ 0.3dB (≤ 0.1dB available)
Return Loss	≥55-60 dB
Wavelength	1310/1550nm
Ferrule Polish	APC
Connector Color	Green
Operating Temperature	-40°C to +85°C
Warranty	3 years after delivery

Connector Type

Ordering Information

Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode type: Single mode (UPC and APC) / Multi mode (PC)
Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
Coating material: PVC / LSZH
Fiber count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core
Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch cord length: Custom lengths available per requirements

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, though larger quantities receive more competitive pricing.

What is the pricing structure?

Pricing varies by quantity - larger orders receive more competitive rates.

Can you provide FOB pricing?

We typically recommend EXW or CFR pricing due to product size. Contact us for freight solutions.

What is your quality assurance process?

We follow IEC and European standards with imported equipment in near dust-free workshops. All products undergo 100% testing before delivery.

What is your production lead time?

2-3 working days for 5,000 pieces. Regular products are typically in stock.

What is your warranty policy?

2-year warranty for non-artificial damage. Artificial damage repairs are free with customer-paid freight.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request samples?

Free samples available for patch cords, adaptors, and attenuators with customer-paid freight.

Packaging Reference

Custom logo printing available on packaging
