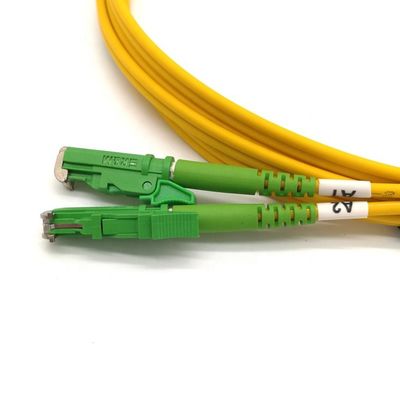

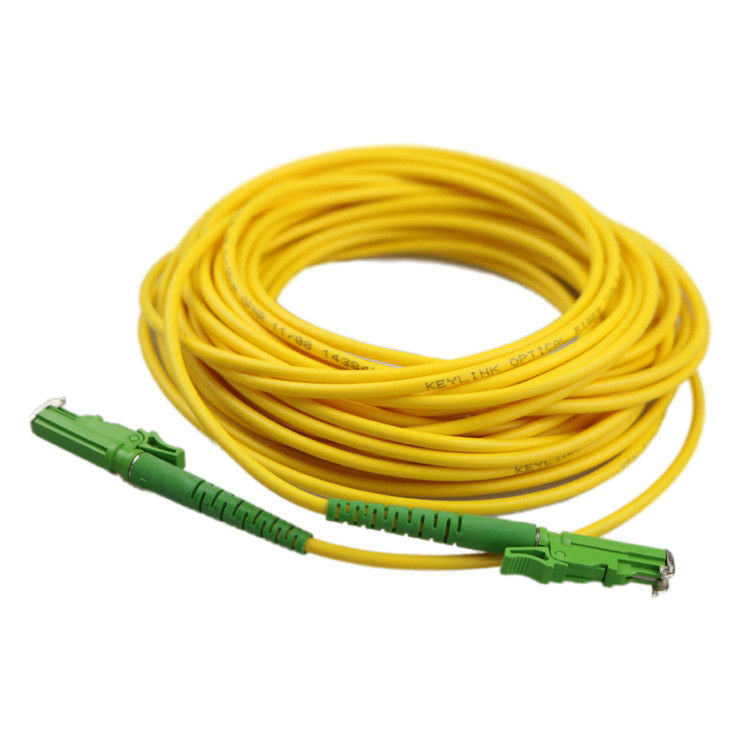

E2000 APC Metal Cap Fiber Optic Patch Cord with 9/125 Single Mode and 1310/1550 Wavelength

Brand Name:	New Light
Model Number:	E2000 APC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Products Name:

PVC Fiber Optic Patch Cord E2000 APC Metal Cap 9/125 1310/1550 Wavelength G652D

Mode Type:

Single Mode

Cable Type:

9/125um

Cable Material:

LSZH /PVC

Cable Diameter:

2.0mm Or 3.0mm

Cable Color:

Yellow

Length:

20M (can Be Customized)

Fiber Count:

Simplex

Insertion Loss:

≤ 0.3dB

Return Loss:

≥60dB

OEM /ODM:

Acceptable

Wave Length:

1310 /1550

Connector Type:

Products Name:

PVC Fiber Optic Patch Cord E2000 APC Metal Cap 9/125 1310/1550 Wavelength G652D

Mode Type:

Single Mode

Cable Type:

9/125um

Cable Material:

LSZH /PVC

Cable Diameter:

2.0mm Or 3.0mm

Cable Color:

Yellow

Length:

20M (can Be Customized)

Fiber Count:

Simplex

Insertion Loss:

≤ 0.3dB

Return Loss:

≥60dB

OEM /ODM:

Acceptable

Wave Length:

1310 /1550

Connector Type:

Supply Ability:

1000000

Highlight:

single mode fiber optic cable

duplex fiber patch cord

Product Description

PVC Fiber Optic Patch Cord E2000 APC Metal Cap

This high-quality single-mode fiber optic patch cord features E2000 APC connectors with metal dust caps, designed for 9/125 G652D single-mode fiber with 1310/1550nm wavelength. The cable features a durable PVC outer jacket (LSZH available upon request) and is RoHS compliant.

Product Specifications

Parameter	Specification
Product Name	PVC Fiber Optic Patch Cord E2000 APC Metal Cap 9/125 1310/1550 Wavelength G652D
Mode Type	Single Mode
Cable Count	Simplex (customizable)
Core Type	G652D (G657A1/G657A2/G657B3/G655 available)
Cable Color	Yellow (customizable)
Cable Diameter	2.0mm (3.0mm and custom diameters available)
Length	20 meters (customizable)
Jacket Material	PVC (LSZH available)
Insertion Loss	≤ 0.3dB (≤ 0.1dB available)
Return Loss	≥ 60dB
Wavelength	1310/1550nm
Core Size	9/125μm
Ferrule Polish	APC
Connector Color	Green
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
Cable Printing	Standard (customizable)
Warranty	3 years after delivery

Connector Type

How to Order

Connector Type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode Type: Single Mode (UPC and APC) / Multi Mode (PC)
Cable Diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
Coating Material: PVC / LSZH
Fiber Count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core
Cable Type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch Cord Length: Customizable according to requirements

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What's the price?

Pricing depends on quantity. We offer competitive pricing for bulk orders.

Can you quote FOB price?

We typically ship via air courier. EXW or CFR pricing is preferred for most orders.

How is your quality?

We follow IEC standards with imported production equipment and 100% testing before delivery.

What's your lead time?

2-3 working days for 5000 pieces. Regular products are in stock for urgent orders.

What's your warranty?

2 years warranty for non-artificial damage. Artificial damage repair available with freight paid by customer.

What's your packing?

International export packaging with custom logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for some products with freight paid by customer.
