9/125um Single Mode Indoor Fiber Optic Distribution Cable with 0.9mm Tight Buffer and G652D Core

Brand Name:	YOFC / Corning
Model Number:	simplex
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Products Name:

9/125um Single Mode Simplex 0.9 Tight Buffer Indoor Fiber Optic Distribution Cable

Mode Type:

Single Mode

Cable Type:

9/125

Cable Material:

Core Type:

YOFC Or Corning

Fiber Count:

Simplex

Wavelength:

1310/1550

Cable Diameter:

0.9mm

Cable Color:

Yellow ( Can Be 12 Colors )

OEM/ODM:

Acceptable

Buffer Type:

Tight Buffer

Supply Ability:

1000000

Highlight:

fiber optic drop cable

simplex fiber optic cable

Product Description

Indoor Fiber Optic Distribution Cable 9/125um Single Mode Simplex 0.9 Tight Buffer

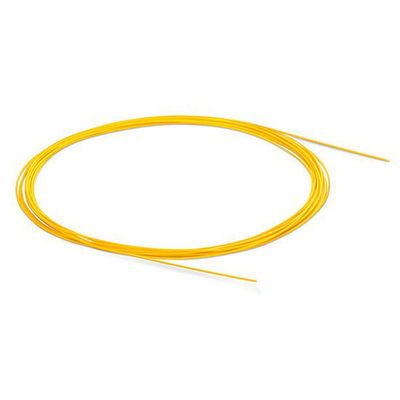

This 9/125um single mode simplex 0.9 tight buffer indoor fiber optic distribution cable is designed for reliable data transmission in indoor applications. Featuring a 0.9mm diameter with standard yellow jacket, it is also available in 12 different colors to meet your specific requirements.

Fiber Core Specifications

The cable utilizes G652D fiber core, with optional alternatives including G657A1, G657A2, and G655 cores. Each core type offers different bend resistance characteristics, with G655 providing the highest bend resistance at a premium price point.

Ordering Information

When ordering, please specify the following parameters:

Cable color
Tight buffer or loose buffer construction
PVC or LSZH jacket material
Fiber type: G652D/G657A1/G657A2/G655
Required cable length

Standard lengths available: 1000m or 2000m per drum, with custom lengths available (minimum 1000m).

Technical Specifications

Product Name	9/125um Single Mode Simplex 0.9 Tight Buffer Indoor Fiber Optic Distribution Cable
Cable Type	9/125
Cable Diameter	0.9mm
Core Type	YOFC (YOFC/CORNING)
Cable Count	Simplex
Mode Type	Single Mode
Cable Color	Yellow (blue/orange/green/brown/grey/white/red/black/yellow/purple/pink/aqua)
Buffer Type	Tight Buffer (can be loose buffer)
Jacket Material	PVC (PVC/LSZH)
Fiber Type	G652D (G652D/G657A1/G657A2/G655)

Mechanical Characteristics

Parameter	Long Term	Short Term
Tensile Strength (N)	60	100
Crush Resistance (N/100mm)	100	500
Bending Radius (CM)	Dynamic: 20xD (D: cable diameter)	Static: 10xD (D: cable diameter)

Transmission Characteristics

Parameter	Single Mode Fiber
Wavelength	1310/1550 (nm)
Attenuation (dB/km)	≤ 0.4/0.3
Minimum Bandwidth (MHz.km)	----------

Key Features

Excellent mechanical and temperature performance
Superior flexibility and bending capability
Limited shrinkage characteristics
Optional diameter, fiber/buffer type, color, and strippability
Multiple fiber types available
Custom dimensions available upon request

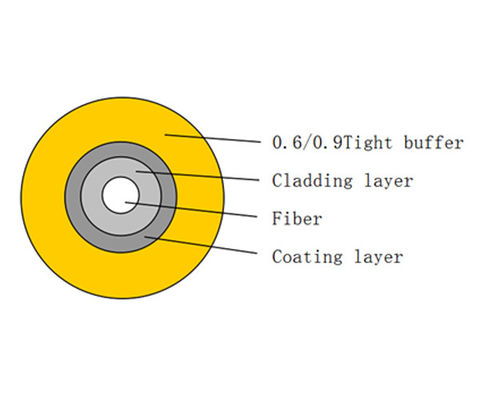

900um tight buffer fiber with aramid yarn and flame-retardant jacket
Optimized for single mode fiber applications

Applications

Indoor cable installations
Direct connector assembly
Data transmission systems

Storage Temperature

-20°C to +60°C

Product Images
