Product Details:
|
| Products Name: | 9/125um Single Mode Simplex 0.9 Tight Buffer Indoor Fiber Optic Distribution Cable | Mode Type: | Single Mode |
|---|---|---|---|
| Cable Type: | 9/125 | Cable Material: | PVC |
| Core Type: | YOFC Or Corning | Fiber Count: | Simplex |
| Wavelength: | 1310/1550 | Cable Diameter: | 0.9mm |
| Cable Color: | Yellow ( Can Be 12 Colors ) | OEM/ODM: | Acceptable |
| Buffer Type: | Tight Buffer | ||
| High Light: | fiber optic drop cable,simplex fiber optic cable |
||

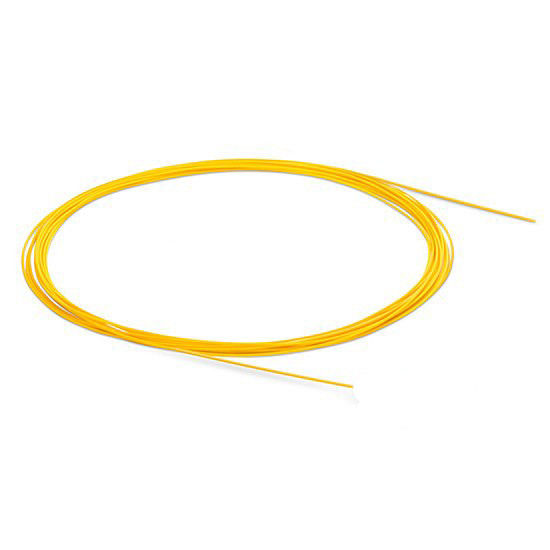

9/125um single mode simplex 0.9 tight buffer indoor fiber optic distribution cable
This type of Single mode fiber optic cable is one kinds of cable for data transmission . It is use for indoor distribution . the diameter of the cable is 0.9mm , color of cable is yellow . it also can be 12 colors as your need . So that it have 12 colors fiber optic pigtail .
This cable is G652D core , it also can be G657A1 / G657A2 / G655 .it have different anti-bend of different core . the most ant-bend core is G655 , but the price also is the most expensive one .
The length of each drum can be 1000/ 2000 meters ,or as your need . at least 1000 meters .
How to order :
1.color of cable .
2. tight buffer or loss buffer
3.PVC or LSZH
4.Fiber type : G652D/G657A1/G657A2/G655
5.length of cable
Parameter
| Product name | 9/125um single mode simplex 0.9 tight buffer indoor fiber optic distribution cable |
| cable type | 9/125 |
| cable diameter | 0.9mm |
| core type | YOFC ( YOFC / CORNING) |
| cable count | simplex |
| mode type | single mode |
| cable color | yellow ( blue /orange/green /brown/grey/white /red/black/yellow/purple/pink/aqua) |
| buffer type | tight buffer ( can be loose buffer ) |
| jacket material | PVC ( PVC / LSZH ) |
| fiber type | G652D ( G652D/G657A1/G657A2/G655) |
Mechanical Characteristics
| Tensile strength (N) | Long Term | 60 |
| Short Term | 100 | |
| Crush resistance ( N/100mm) | Long Term | 100 |
| Short Term | 500 | |
| Bending Radius(CM) |
Dynamic |
20xD (D: cable diameter) |
| Static | 10xD (D:cable diameter |
Transmission Characteristics
| single mode fiber | |
| wavelength | 1310/1550(nm) |
| Attenuation (dB/km) | ≤ 0.4/0.3 |
| minimum bandwidth (MHz.km) | ---------- |
Feature :
1. Excellent mechanical and temperature performance
2. Excellent flexiblity and bending
3. Limited shrinkage
4. Diameter,fibre /buffer type , color and strippability are optional
5. Different fiber types available
6. Special dimension available on request

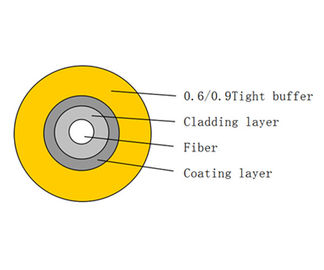

7. 900um tight buffer fiber , aramid yarn , flame-retardant jacket
8. suited to single mode fiber
Application :
Indoor cable
For direct connector assembly
Data transmission
Storage temperature
-20°~+60°
after finished products in single mode cable
