1U Rack Mount Fiber Optic Patch Panel with Oval Spring for 16C/32C Ribbon Fiber and MTP-16 Cassettes

Brand Name: NL
Model Number: rack mount
MOQ: 1~10000
Price: 10~100
Packaging Details: carton box
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001
Fiber:
16C , 32C
Material:
Specc
Color:
Black Or Customized
Application:
Telecom Network
Feature:
Applies To 3.6mm Round Cable And 16C/32C Ribbon Fiber
Connector:
MPO / MTP
Mode:
SM, MM,MMLL,16C,32C
Spring:
Oval Spring
Cable:
3.6mm Round Cable And 16C/32C Ribbon Fiber
Insertion Loss:
0.35dB ; 0.5dB
Supply Ability:
1000 set per days
Highlight:

odf fiber optic patch panel

,

fiber optic distribution box

Product Description
Oval Spring Fiber Optic Distribution Frame Patch Panel

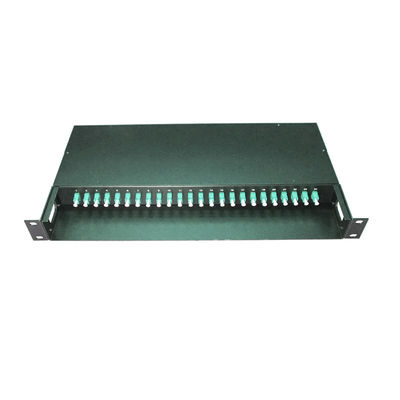

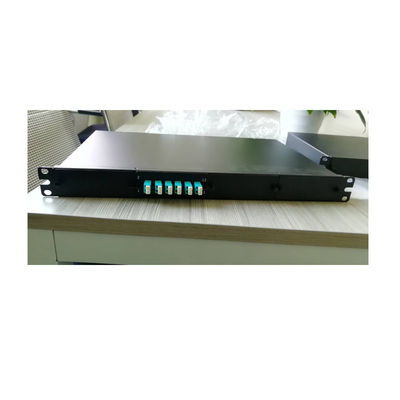

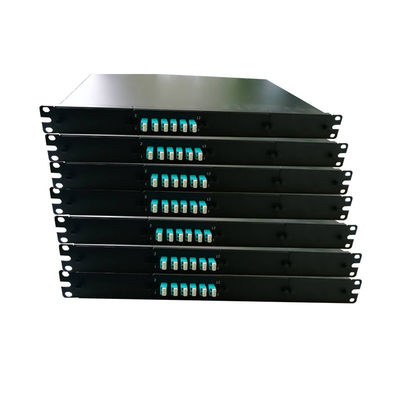

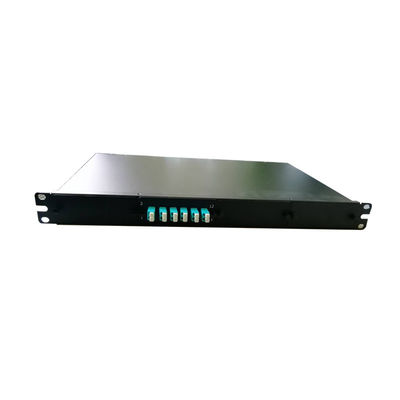

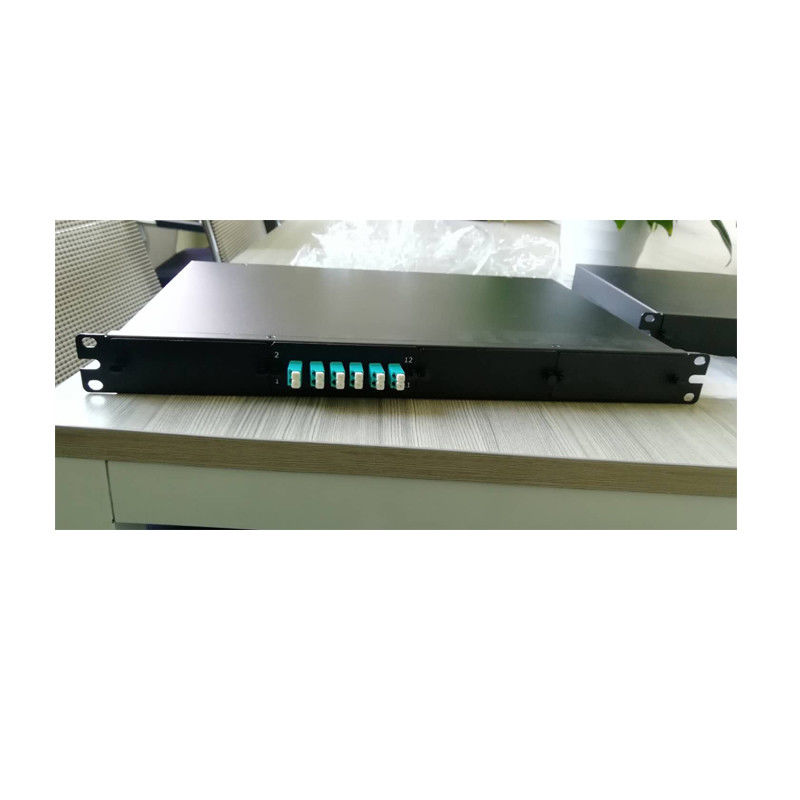

1U 19" rack mount fiber optic patch panel designed to hold up to 4 x MTP-16 cassettes for high-density applications in data centers and telecommunication systems.
Product Overview
MPO connectors with multifiber capability are engineered for high-density applications in data centers and telecommunication systems. Precision alignment is ensured through high-precision metal guide pins and ferrule pin holes. Available in SM, MM, MMLL, 16C, 32C configurations with high force spring options.
1U Rack Mount Fiber Optic Patch Panel with Oval Spring for 16C/32C Ribbon Fiber and MTP-16 Cassettes 0
Key Features
  • Independent push-pull tab option
  • Patented push-pull tab design
  • Oval spring mechanism
  • Multiple color options available
  • High-density application capability
  • Compatible with 3.6mm round cable and 16C/32C ribbon fiber
  • High force spring construction
Applications
  • Telecom networks
  • Ethernet networks
  • Optical communication equipment
Mechanical Properties
Item Criteria Conformance
△IL After 50 Matings MPO/MTP ≤0.3dB | GR-1435
△IL After 500 Matings LC/SC/FC/ST ≤0.2dB | IEC 61300-2-2
Min Bend Radius (Dynamic) 20*OD (Cable Diameter)
Min Bend Radius (Static) 15*OD (Cable Diameter)
Technical Specifications
MTP/MPO connectors interconnect cassettes, panels, or fan outs, available in standard 8, 12, 16, 24, 32, or 48 core versions using compact and rugged microcables structure. The compact cable design optimizes cableway utilization and improves airflow. These MPO/MTP cables are built with the highest quality components, with Low Loss Elite versions featuring low insertion loss for demanding high-speed networks where power budgets are critical.
1U Rack Mount Fiber Optic Patch Panel with Oval Spring for 16C/32C Ribbon Fiber and MTP-16 Cassettes 1
Items Elite Performance Standard Performance
SM MM SM MM
Insertion Loss 16F: ≤0.35dB
32F: ≤0.5dB		 16F: ≤0.35dB
32F: ≤0.7dB		 16F,32F: ≤0.7dB
Return Loss ≥55dB ≥20dB
Durability 500 times
Operation Temperature -40℃ to +85℃
Fiber Type OS2/OM3/OM4/OM5
Testing & Compliance
Test Wavelength: SM@1310/1550nm, MM@850/1300nm
Standard Conformance: GR-326, GR-1435
Environmental Conditions
Item Criteria Conformance
Operation Temperature -40°C to +60°C IEC 61753-1
Storage Temperature -45°C to +85°C
