Oval Spring Fiber Optic Distribution Frame Patch Panel Holds Up To 4 X MTP-16 Cassettes

Oval Spring Fiber Optic Distribution Frame Patch Panel Holds Up To 4 X MTP-16 Cassettes
Oval Spring Fiber Optic Distribution Frame Patch Panel Holds Up To 4 X MTP-16 Cassettes
Oval Spring Fiber Optic Distribution Frame Patch Panel Holds Up To 4 X MTP-16 Cassettes Oval Spring Fiber Optic Distribution Frame Patch Panel Holds Up To 4 X MTP-16 Cassettes Oval Spring Fiber Optic Distribution Frame Patch Panel Holds Up To 4 X MTP-16 Cassettes Oval Spring Fiber Optic Distribution Frame Patch Panel Holds Up To 4 X MTP-16 Cassettes Oval Spring Fiber Optic Distribution Frame Patch Panel Holds Up To 4 X MTP-16 Cassettes

Large Image :  Oval Spring Fiber Optic Distribution Frame Patch Panel Holds Up To 4 X MTP-16 Cassettes

Product Details:
Place of Origin: China
Brand Name: NL
Certification: ISO9001
Model Number: rack mount
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD 68-120 set
Packaging Details: carton box
Delivery Time: 8-15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 set per days

Oval Spring Fiber Optic Distribution Frame Patch Panel Holds Up To 4 X MTP-16 Cassettes

Description
Fiber: 16C , 32C Material: Specc
Color: Black Or Customized Application: Telecom Network
Feature: Applies To 3.6mm Round Cable And 16C/32C Ribbon Fiber Connector: MPO / MTP
Mode: SM, MM,MMLL,16C,32C Spring: Oval Spring
Cable: 3.6mm Round Cable And 16C/32C Ribbon Fiber Insertion Loss: 0.35dB ; 0.5dB
High Light:

odf fiber optic patch panel

,

fiber optic distribution box

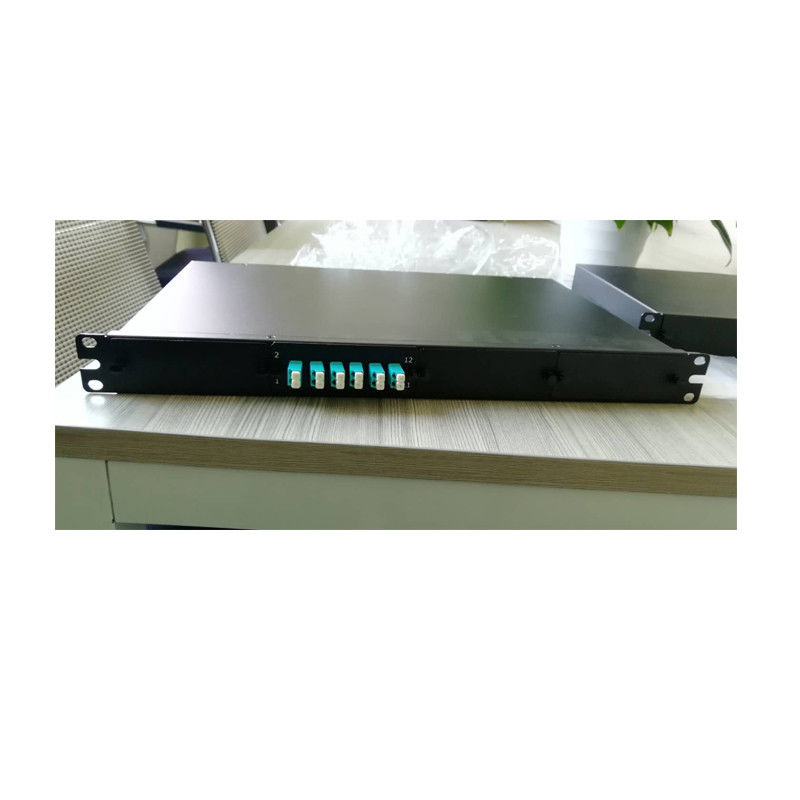

1U 19' rack mount fiber optic patch panel , holds up to 4 x MTP-16 cassettes



Description:



MPO connector comes with multifiber applies to high density in data center or telecommunication systems. It depends on the high precision metal guide pin and the high precision ferrule pin hole to ensure the optical alignment. It’s comes with SM, MM,MMLL,16C,32C, high force spring for your choice.

Oval Spring Fiber Optic Distribution Frame Patch Panel Holds Up To 4 X MTP-16 Cassettes 0







Feature :



▪ An independent push-pull tab for option
▪ Patented push-pull tab
▪ Oval spring
▪ Many colors for option
▪ High density application
▪ Applies to 3.6mm round cable and 16C/32C Ribbon fiber
▪ High force spring





Application :



▪ Telecom network
▪ Ethernet network
▪ Optical communication equipment



Mechanical Properties
Item Criteria Conformance
△IL After 50 Matings MPO/MTP ≤0.3dB GR-1435
△IL After 500 Matings LC/SC/FC/ST ≤0.2dB IEC 61300-2-2
Min Bend Radius (Dynamic) 20*OD (Cable Diameter)
Min Bend Radius (Static ) 15*OD (Cable Diameter)





Specification:



MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,16, 24 , 32 or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.

These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.

Oval Spring Fiber Optic Distribution Frame Patch Panel Holds Up To 4 X MTP-16 Cassettes 1





​Items Elite Performance Std Performance
SM MM SM MM
Insertion Loss 16F 32F 16F 32F 16F,32F 16F,32F
≤0.35dB ≤0.5dB ≤0.35dB ≤0.7dB ≤0.7dB
Return Loss ≥55dB ≥20dB ≥55dB ≥20dB
Durability 500times
Operation temperature -40℃~+85℃
Fiber Type OS2/OM3/OM4/OM5







Note:



1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;

2.Standard conformance: GR-326,GR-1435.



Environment Conditions
Item Criteria Conformance
Operation Temperature -40~60°C IEC 61753-1
Storage Temperature -45~85°C




Contact Details
NEW LIGHT OPTICS TECHNOLOGY LIMITED

Contact Person: Alice

Tel: 0086-13534063703

Fax: 00-86-85242074

Send your inquiry directly to us (0 / 3000)
