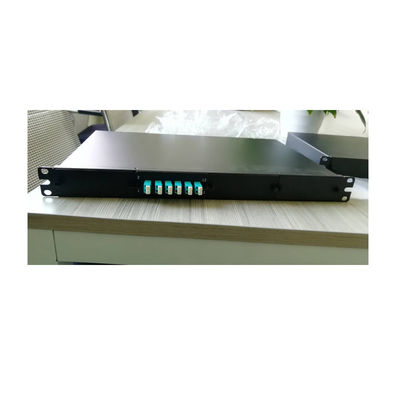

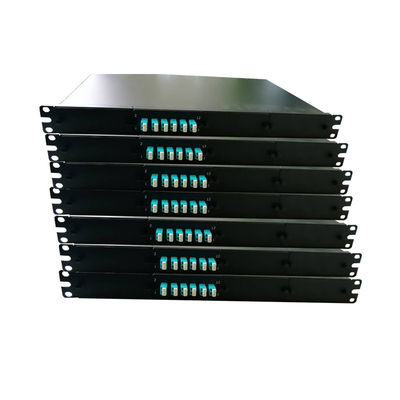

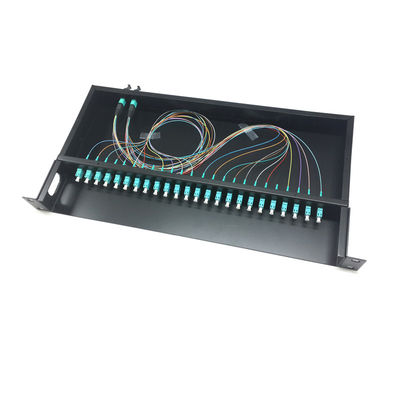

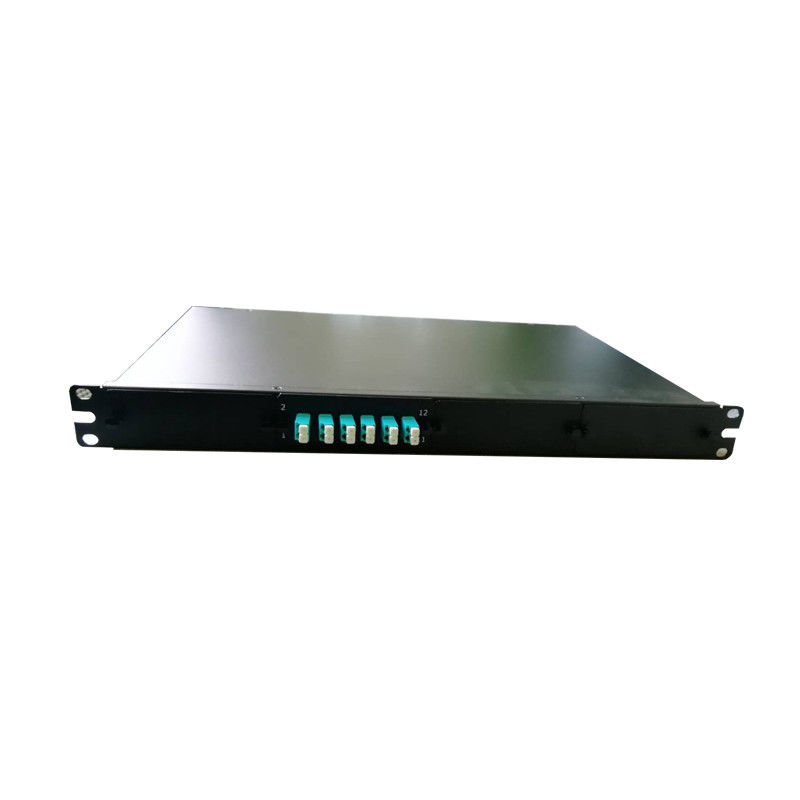

Black Color 1U 19'' Rack Mount Fiber Optic Patch Panel with 16C / 32C Ribbon MPO Connector

Brand Name: NL
Model Number: rack mount
MOQ: 1~10000
Price: 10~100
Packaging Details: carton box
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001
Fiber:
8C , 12C ,16C , 32C ,24C
Material:
Specc
Color:
Black Or Customized
Application:
Telecom Network
Feature:
Applies To 3.6mm Round Cable And 16C/32C Ribbon Fiber
Connector:
MPO / MTP
Mode:
SM, MM,MMLL,16C,32C , 24C
Spring:
Oval Spring
Cable:
3.6mm Round Cable And 16C/32C Ribbon Fiber
Insertion Loss:
0.35dB ; 0.5dB
Supply Ability:
1000 set per days
Highlight:

odf fiber optic patch panel

,

fiber optic distribution box

Product Description
Black Color Fiber Optic Distribution Frame
1U 19" Rack Mount 16C / 32C Ribbon Patch Panel
Product Overview
This 1U 19" rack mount fiber optic patch panel in black color supports 16C/32C ribbon fiber configurations, designed for high-density data center and telecommunications applications.
Technical Specifications
Items Elite Performance Standard Performance
SM MM SM MM
Insertion Loss (16F) ≤0.35dB ≤0.35dB ≤0.7dB ≤0.7dB
Insertion Loss (32F) ≤0.5dB ≤0.7dB ≤0.7dB ≤0.7dB
Return Loss ≥55dB ≥20dB ≥55dB ≥20dB
Durability 500 cycles
Operation Temperature -40℃ to +85℃
Fiber Type OS2/OM3/OM4/OM5
Product Description
MPO connectors with multifiber capability are engineered for high-density applications in data centers and telecommunication systems. These connectors utilize high-precision metal guide pins and ferrule pin holes to ensure optimal optical alignment. Available in SM, MM, MMLL, 16C, 32C configurations with high-force spring options.
Black Color 1U 19'' Rack Mount Fiber Optic Patch Panel with 16C / 32C Ribbon MPO Connector 0
Key Features
  • Independent push-pull tab for easy operation
  • Patented push-pull tab design
  • Oval spring mechanism
  • Multiple color options available
  • High-density application capability
  • Compatible with 3.6mm round cable and 16C/32C ribbon fiber
  • High-force spring for secure connections
Applications
Telecom networks, Ethernet networks, and optical communication equipment
Mechanical Properties
Item Criteria Conformance
△IL After 50 Matings (MPO/MTP) ≤0.3dB GR-1435
△IL After 500 Matings (LC/SC/FC/ST) ≤0.2dB IEC 61300-2-2
Min Bend Radius (Dynamic) 20*OD (Cable Diameter) -
Min Bend Radius (Static) 15*OD (Cable Diameter) -
Environmental Conditions
Item Criteria Conformance
Operation Temperature -40°C to +60°C IEC 61753-1
Storage Temperature -45°C to +85°C -
Compliance & Standards
IEC 61754-7 and GR-1435 compliant; RoHS/REACH and UL94-V0 inflammability grade compliant.
Testing & Certification Notes
1. Test wavelength: SM@1310/1550nm, MM@850/1300nm
2. Standard conformance: GR-326, GR-1435
