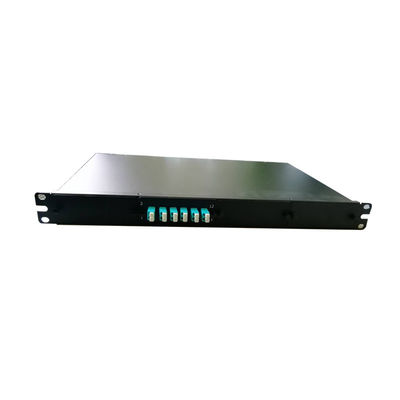

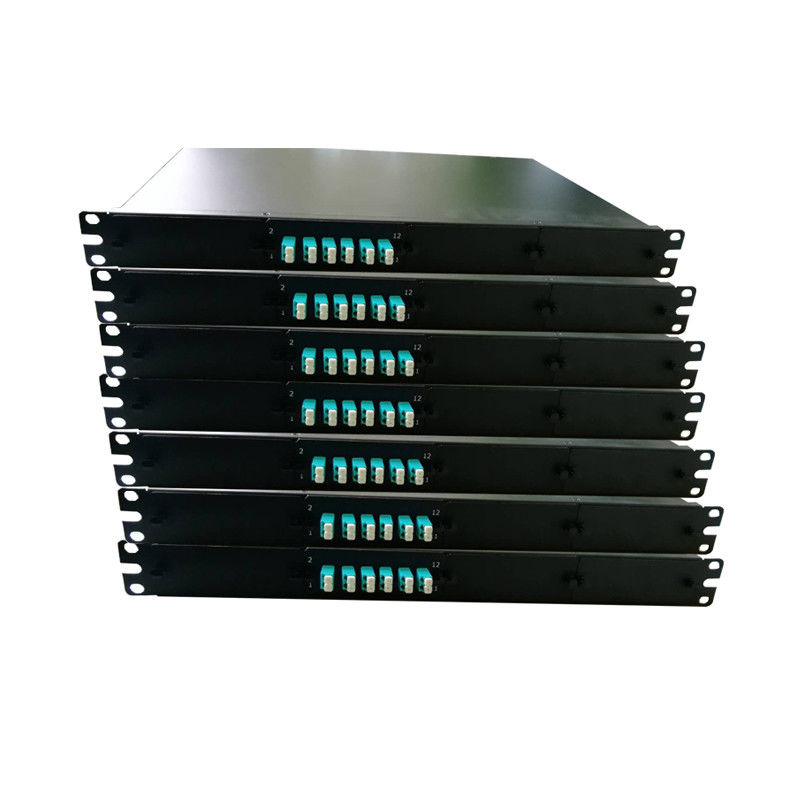

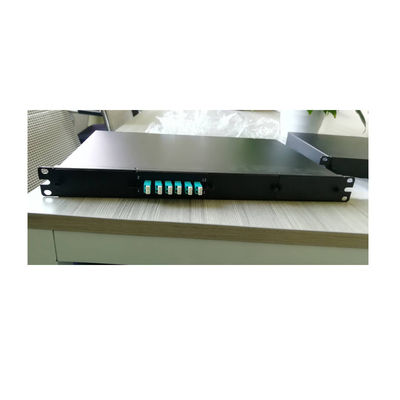

High Density 19 Inch Rack Mount Fiber Optic Distribution Frame with MPO/MTP Connector

Brand Name: NL
Model Number: rack mount
MOQ: 1~10000
Price: 10~100
Packaging Details: carton box
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001
Fiber:
16C , 32C ,24C ,8C , 12C
Material:
Specc
Color:
Black Or Customized
Application:
Date Center
Feature:
Applies To 3.6mm Round Cable And 16C/32C Ribbon Fiber
Connector:
MPO / MTP
Mode:
SM, MM,MMLL,16C,32C , 24C
Spring:
Oval Spring
Cable:
3.6mm Round Cable And 16C/32C Ribbon Fiber
Insertion Loss:
0.35dB ; 0.5dB
Supply Ability:
1000 set per days
Highlight:

odf fiber optic patch panel

,

fiber optic distribution box

Product Description
High Density Optical Fiber Distribution Frame
19-Inch Rack Mount Enclosure with 8C, 12C, 24C, 32C, and 48C Ribbon Fiber Optic Patch Panel
Key Features
  • Independent push-pull tab for easy operation
  • Patented push-pull tab design
  • Oval spring mechanism
  • Available in multiple colors
  • High density application capability
  • Compatible with 3.6mm round cable and 16C/32C ribbon fiber
  • High force spring for secure connections
Technical Specifications
MTP/MPO connectors interconnect cassettes, panels, or fan outs, available in standard 8, 12, 16, 24, 32, or 48 cores versions using compact and rugged microcables structure. The compact cable design optimizes cableway use and improves airflow.
These MPO/MTP cables are built with the highest quality components. Low loss elite versions are offered, featuring low insertion loss for demanding high-speed networks where power budgets are critical.
High Density 19 Inch Rack Mount Fiber Optic Distribution Frame with MPO/MTP Connector 0
Items Elite Performance Std Performance
Insertion Loss SM: ≤0.35dB (16F), ≤0.5dB (32F)
MM: ≤0.35dB (16F), ≤0.7dB (32F)		 SM/MM: ≤0.7dB (16F, 32F)
Return Loss ≥55dB (SM), ≥20dB (MM) ≥55dB (SM), ≥20dB (MM)
Durability 500 cycles
Operation Temperature -40℃ to +85℃
Fiber Type OS2/OM3/OM4/OM5
Product Description
MPO connector with multifiber capability applies to high density applications in data centers or telecommunication systems. Features high precision metal guide pin and ferrule pin hole to ensure optimal optical alignment. Available in SM, MM, MMLL, 16C, 32C configurations with high force spring options.
High Density 19 Inch Rack Mount Fiber Optic Distribution Frame with MPO/MTP Connector 1
Applications
  • Telecom networks
  • Ethernet networks
  • Optical communication equipment
Mechanical Properties
Item Criteria Conformance
△IL After 50 Matings MPO/MTP ≤0.3dB GR-1435
△IL After 500 Matings LC/SC/FC/ST ≤0.2dB IEC 61300-2-2
Min Bend Radius (Dynamic) 20 * OD (Cable Diameter) -
Min Bend Radius (Static) 15 * OD (Cable Diameter) -
International Standards Compliance
IEC 61754-7 and GR-1435 compliant; RoHS/REACH and UL94-V0 inflammability grade compliant.
Environmental Conditions
Item Criteria Conformance
Operation Temperature -40°C to 60°C IEC 61753-1
Storage Temperature -45°C to 85°C -
Note:
1. Test wavelength: SM@1310/1550nm, MM@850/1300nm
2. Standard conformance: GR-326, GR-1435
