products details

Home > Products >
Fiber Optic Patch Panel
>
1U Rack Mount Fiber Optic Distribution Box with 8C 12C 24C 32C 48C Capacity and 0.35dB 0.5dB Insertion Loss for High Density Applications
All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket
Contact Us
Mrs. Alice
sales03@newlightfiber.com
0086-13534063703
wechat 86 13534063703
Contact Now
name
  • name
  • name
  • name

1U Rack Mount Fiber Optic Distribution Box with 8C 12C 24C 32C 48C Capacity and 0.35dB 0.5dB Insertion Loss for High Density Applications

Brand Name: NL
Model Number: rack mount
MOQ: 1~10000
Price: 10~100
Packaging Details: carton box
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001
Fiber:
16C , 32C ,24C ,8C , 12C
Material:
Specc
Color:
Black Or Customized
Application:
Date Center
Feature:
Applies To 3.6mm Round Cable And 16C/32C Ribbon Fiber
Connector:
MPO / MTP
Mode:
SM, MM,MMLL,16C,32C , 24C
Spring:
Oval Spring
Cable:
3.6mm Round Cable And 16C/32C Ribbon Fiber
Insertion Loss:
0.35dB ; 0.5dB
Supply Ability:
1000 set per days
Highlight:

odf fiber optic patch panel

,

fiber optic distribution box

Product Description

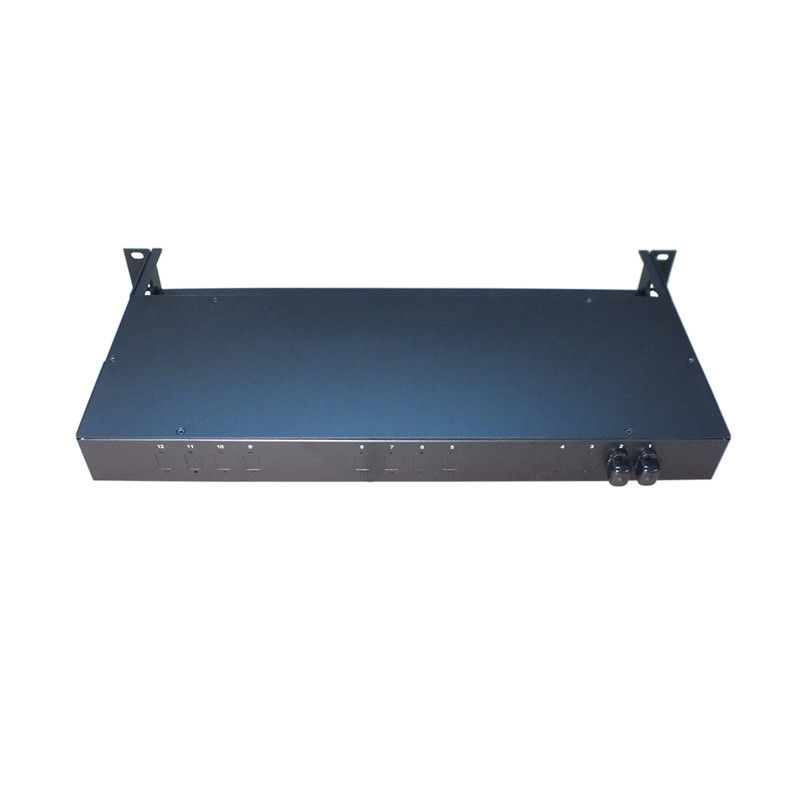

1U Rack Mount Fiber Optic Distribution Box
Available in 8C, 12C, 24C, 32C, and 48C configurations with insertion loss options of 0.35dB and 0.5dB.
Product Overview
High-density 1U rack mount fiber optic patch panel featuring MPO connectors designed for data center and telecommunications systems. Utilizes precision metal guide pins and ferrule pin holes to ensure optimal optical alignment.
Technical Specifications
Items Elite Performance Standard Performance
Insertion Loss 16F/32F SM: ≤0.35dB 16F/32F SM: ≤0.7dB
16F MM: ≤0.5dB, 32F MM: ≤0.7dB 16F/32F MM: ≤0.7dB
Return Loss SM: ≥55dB, MM: ≥20dB SM: ≥55dB, MM: ≥20dB
Durability 500 cycles
Operation Temperature -40℃ to +85℃
Fiber Type OS2/OM3/OM4/OM5
Key Features
  • Independent push-pull tab option
  • Patented push-pull tab design
  • Oval spring mechanism
  • Multiple color options available
  • High-density application capability
  • Compatible with 3.6mm round cable and 16C/32C ribbon fiber
  • High force spring construction
Product Description
MPO multi-fiber connectors engineered for high-density applications in data centers and telecommunications systems. Precision metal guide pins and ferrule pin holes ensure reliable optical alignment. Available in SM, MM, MMLL, 16C, 32C configurations with high force spring options.
1U Rack Mount Fiber Optic Distribution Box with 8C 12C 24C 32C 48C Capacity and 0.35dB 0.5dB Insertion Loss for High Density Applications 0
Applications
  • Telecom networks
  • Ethernet networks
  • Optical communication equipment
Mechanical Properties
Item Criteria Conformance
△IL After 50 Matings MPO/MTP: ≤0.3dB GR-1435
△IL After 500 Matings LC/SC/FC/ST: ≤0.2dB IEC 61300-2-2
Min Bend Radius (Dynamic) 20*OD (Cable Diameter) -
Min Bend Radius (Static) 15*OD (Cable Diameter) -
Environmental Conditions
Item Criteria Conformance
Operation Temperature -40°C to +60°C IEC 61753-1
Storage Temperature -45°C to +85°C -
Compliance & Standards
Compliant with IEC 61754-7 and GR-1435 standards. Meets RoHS/REACH requirements and UL94-V0 flammability grade.
Important Notes:
1. Test wavelength: SM@1310/1550nm, MM@850/1300nm
2. Standard conformance: GR-326, GR-1435
