32C MPO MTP Fiber Optic Patch Panel with Oval Spring for High-Density Data Centers

Brand Name:	NL
Model Number:	rack mount
MOQ:	1~10000
Price:	10~100
Packaging Details:	carton box
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Fiber:

32C ,24C ,8C , 12C , 48C ,96C

Material:

Specc

Color:

Black Or Customized

Application:

Date Center , Telecom Network

Feature:

Applies To 3.6mm Round Cable And 16C/32C Ribbon Fiber

Connector:

MPO / MTP

Mode:

SM, MM,MMLL,16C,32C , 24C

Spring:

Oval Spring

Cable:

3.6mm Round Cable And 16C/32C Ribbon Fiber

Insertion Loss:

0.35dB ; 0.5dB

Supply Ability:

1000 set per days

Highlight:

odf fiber optic patch panel

fiber optic distribution box

Product Description

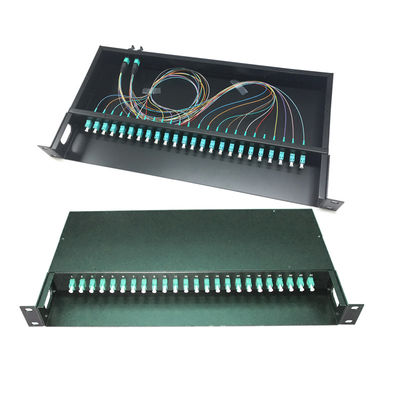

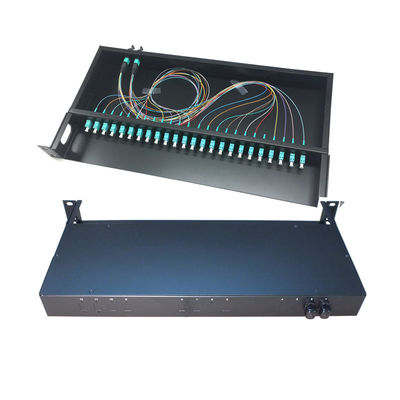

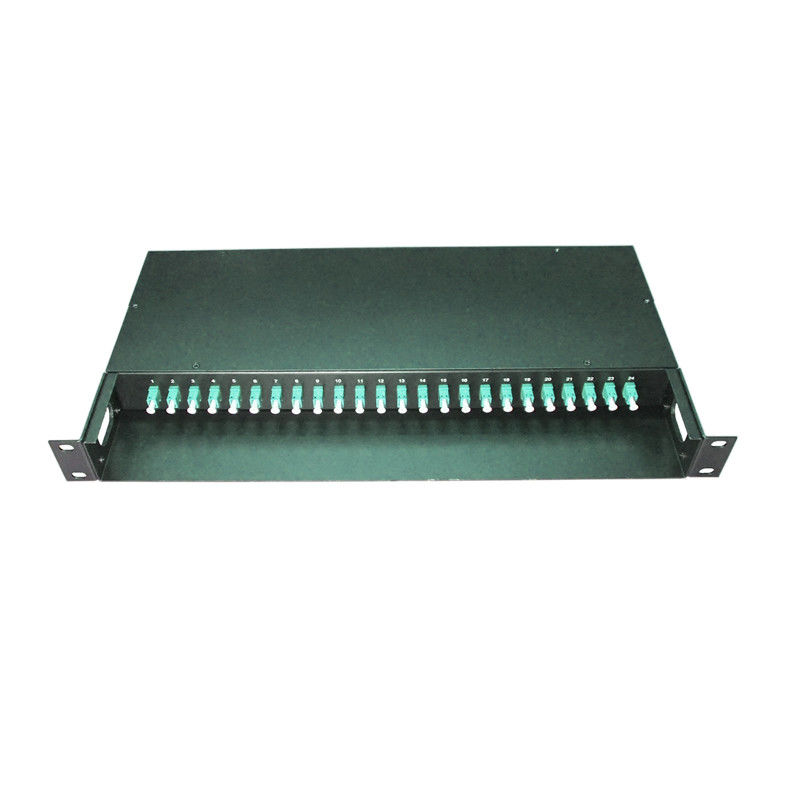

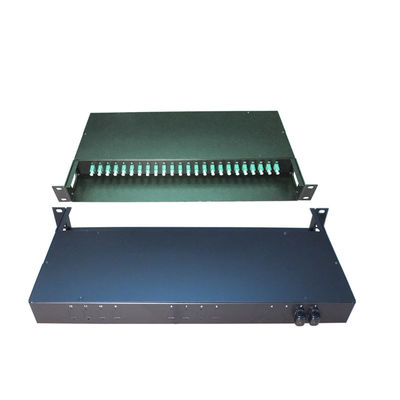

MPO / MTP Trunk Cable Ribbon Fiber Optic Patch Panel

Available in 8C, 12C, 24C, 32C, and 48C configurations with oval spring design for high-density fiber patching applications.

Product Overview

MPO Breakout cable provides a cost-effective alternative to field termination, designed for high-density fiber patching in data centers. Features Senko MPO connectors and Corning Clearcurve fiber, optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.

Technical Specifications

Items	Elite Performance	Std Performance
Insertion Loss	16F ≤0.35dB, 32F ≤0.5dB (SM) 16F ≤0.35dB, 32F ≤0.7dB (MM)	16F,32F ≤0.7dB
Return Loss	≥55dB (SM), ≥20dB (MM)	≥55dB (SM), ≥20dB (MM)
Durability	500 cycles
Operation Temperature	-40℃ to +85℃
Fiber Type	OS2/OM3/OM4/OM5

Key Features

100% pre-terminated and factory tested to ensure optimal performance
Rapid configuration and networking reduces installation time
Supports 40G and 100G network applications
Jacket material options: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F configurations
Customized products available

Product Description

MPO connector with multifiber design for high-density applications in data centers and telecommunication systems. Features high precision metal guide pin and ferrule pin hole to ensure optimal optical alignment. Available in SM, MM, MMLL, 16C, 32C configurations with high force spring options.

Applications

Telecom networks
Ethernet networks
Optical communication equipment

Mechanical Properties

Item	Criteria	Conformance
△IL After 50 Matings	MPO/MTP ≤0.3dB	GR-1435
△IL After 500 Matings	LC/SC/FC/ST ≤0.2dB	IEC 61300-2-2
Min Bend Radius (Dynamic)	20*OD (Cable Diameter)	-
Min Bend Radius (Static)	15*OD (Cable Diameter)	-

Environmental Conditions

Item	Criteria	Conformance
Operation Temperature	-40°C to +60°C	IEC 61753-1
Storage Temperature	-45°C to +85°C	-

Compliance & Standards

Compliant with IEC 61754-7 and GR-1435 standards. Meets RoHS/REACH requirements and UL94-V0 inflammability grade.

Testing & Certification

Test wavelength: SM@1310/1550nm, MM@850/1300nm

Standard conformance: GR-326, GR-1435

OEM/ODM Services

Various MPO connectors available to meet specific requirements. Compatible with 3.6mm round cable and 16C/32C Ribbon fiber configurations.
