FTTH Drop Cable with Flame Retardant LSZH Sheath and Self-Supporting Structure for Singlemode G652D/G657A Fiber

Brand Name: NL
Model Number: NLFTTH1
MOQ: 1 roll
Price: 0.1~100
Packaging Details: export packing
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO ,ROSH
Name:
FTTH Drop Cable
Fiber Count:
1 Fiber
Construction:
Self-supporting
Fiber Type:
Singlemode G652D ,G657A
Outer Jacket Material:
LSZH
Strength Member Material:
KFRP / FRP / Steel Wire
Color:
Black/White
Application:
FTTH Projects
Packaging:
Wooden Wheel
Test Repor:
Out Package Of The Cable
Fiber Struction:
Figure8
Usage:
Aerial
Supply Ability:
1000000
Highlight:

duplex fiber optic patch cable

,

fiber optic drop cable

Product Description
FTTH Fiber Optic Cable Flame Retardant LSZH Sheath Self Supporting Structure
FTTH white/black color fiber optic cable with LSZH/PVC/PE jacket designed for reliable outdoor installations.
Product Overview

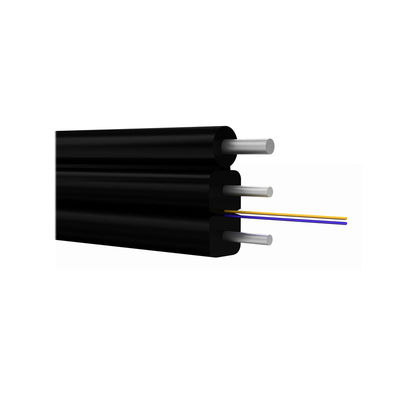

Self-supporting FTTH drop cable is constructed with one or two single-mode fibers (G.657A). Protected by two parallel strength members made of metal, steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling units, warehouses, and independent villas.
Features and Benefits
  • Self-supporting structure, light weight, easy to install
  • Durable and flame retardant LSZH sheath, low smoke zero halogen
  • Excellent mechanical and environmental performance
  • Steel wire as additional strength member has high tensile strength
  • Two parallel FRP strength members ensure good performance of anti-electromagnetic and crush resistance
Technical Specifications
Parameter Specification
Fiber count 1F/2F/4F
Attenuation 1310nm: ≤0.36 1550nm: ≤0.22
Color of fiber Blue Orange Green Brown
Fiber Type G652D/G657A1/G657A2
Strength member Steel wire/FRP/KFRP
Outer sheath LSZH Lower smoke zero halogen flame retardant & UV Anti
Cable Diameter dimensions 2.0(Height) * 3.0W ± 0.1 mm(width)
Operation temperature range -20 ℃ to + 70 ℃
Installation temperature range -0 ℃ to + 60 ℃
Transport and storage temperature range -20 ℃ to + 70 ℃
Tension Load (N) Short term: 800N Long term: 500N
Crush Load(N) Long term: 1000 N/100mm Short term: 2200N/100mm
Minimal installation bending radius 30 x OD
Minimal operation bending radius 15 x OD
Cable marking The marking length 1meter apart, as required
Packaging Details
FTTH Drop Cable with Flame Retardant LSZH Sheath and Self-Supporting Structure for Singlemode G652D/G657A Fiber 0
Item Index
Length and packaging 1000m/plywood reel
Plywood reel size 300*110*230mm
Carton size 310*310*250mm
Net weight 9kg/km
Gross weight 10kg/box
Packaging details wooden wheel
Applications
  • Outdoor aerial application
  • Used in the FTTH projects
  • High performance optical network operation
  • High speed optical routes in building
A high-capacity FTTH network gives you opportunities to build a competitive advantage and maintain an eco-sustainable network that consumes less power. With simple structure and light weight, self-supporting FTTH drop cable is highly recommended for the connection of outdoor and indoor cabling.
FTTH Drop Cable with Flame Retardant LSZH Sheath and Self-Supporting Structure for Singlemode G652D/G657A Fiber 1 FTTH Drop Cable with Flame Retardant LSZH Sheath and Self-Supporting Structure for Singlemode G652D/G657A Fiber 2
