Product Details:
|
| Material: | Plastic | Connector Type: | MPO |
|---|---|---|---|
| Mode Type: | Single Mode | Repeatability: | >1000 Times |
| Attenuation: | 1-30 DB | Return Loss: | PC ≥ 45dB UPC ≥55dB APC ≥65dB |
| Certificate: | CE , ISO , RoHS | Operate Temperature: | -40-+80 |
| Fiber Count: | 12 Core | ||
| High Light: | variable optical attenuator,single mode fiber attenuator |
||
Product Description

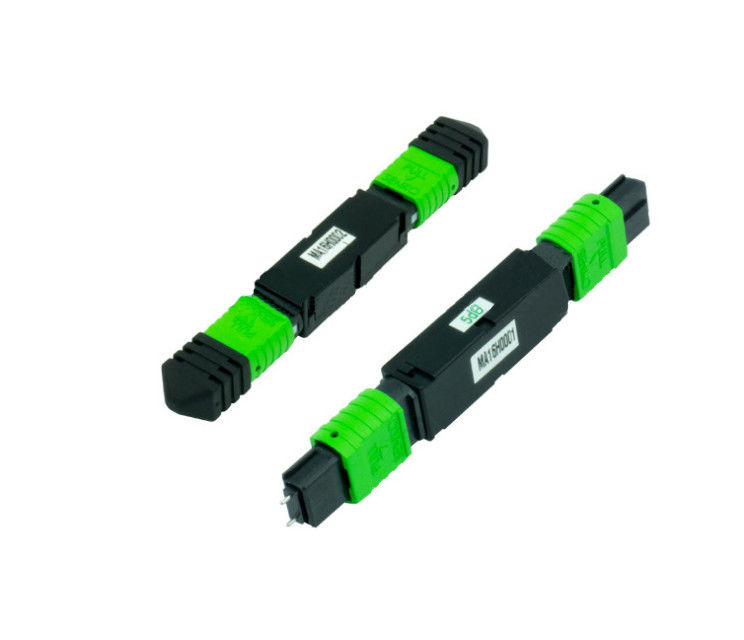

MPO / MTP male to female single mode Attenuator For 12 fiber
New Light MPO Attenuator is used to reduce optical-signal electric power in all channels of 40/100G Parallel Optic Transmission, and other equipment with using MPO interconnection.
Technique of this product makes network's composition more concise than those of conservative way which is the connection method of attenuator independently in each channel, as downsizing the volume and saving time.
This MPO Attenuator meets TIA/EIA 604-5. And IEC 61754-7 with compliance for RoHS
|
Model NO.
|
MPO(MTP)-attenuator | Core | Multicore |
|
Certification
|
RoHS, ISO9001, IEC,Tlc,SGS,Reach | Brand | OEM |
|
Sheath Material
|
PVC | Return Loss | 60dB(8c Polishing) |
|
Operation Wavelength
|
1310/1550nm | Attenuation Tolerance | 1dB( at 2-10dB), 10%( at 11-20dB) |
|
Housing Dimension
|
25.3*16.2*5.9(mm) | Jacket Color | Black,Green,Yellow |
|
Attenuation
|
1~20dB(Sm 1310/1550 Nm) | Operating Temperature | -25c~75c |
|
Specification
|
25.3*16.2*5.9(mm) | Transport Package | 1PCS/Bag, Stantard Carton Package |
|
Origin
|
China |
|
Attenuation Vale
|
0dB to 30dB |
|
Operating Wavelength
|
SM:1260nm~1620nm, MM:850/1300nm (Customer ordered)
|
|
Return Loss
|
UPC≥50dB, APC≥60dB
|
|
Polarization Loss
|
≤0.2dB
|
|
Attenuation Tolerance
|
0dB~9dB:0.5dB, 10~30dB:10% of attenuation value
|
|
Maximum Power Capability
|
250mW
|
|
Operating Temperature
|
-40°C~+85°C
|
| Storage Temperature |
-40°C~+85°C
|
Features:
High Stability and High Durability
Compact Housing Dimension
QSFP Available (Option of female/male type of MPO/MTP connector)
RoHS Compliant
Applications:
Data Center Infrastructure
Storage Area Network and Fiber Channel
Various 40G and 100Gbps Protocols
Specifications:
|
Parameter
|
Conditions |
|
Operation Wavelength
|
1310/1550nm |
|
Attenuation Tolerance
|
±1dB( at 2-10dB), ±10%( at 11-20dB) |
|
Return Loss
|
60dB(8°Polishing, SM) |
|
Operating Temperature
|
-25ºC~75ºC |
|
Attenuation
|
1~20dB |
|
Housing Dimension
|
Height 8.1 mm/Length 80.0mm/Width 11.3mm |
