MPO Attenuator Single Mode 12 Fiber Plastic Material Male to Female for 40/100G Transmission

Brand Name:	New Light
Model Number:	MPO
MOQ:	10
Price:	1~30
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO / RoHS

Material:

Plastic

Connector Type:

MPO

Mode Type:

Single Mode

Repeatability:

>1000 Times

Attenuation:

1-30 DB

Return Loss:

PC ≥ 45dB UPC ≥55dB APC ≥65dB

Certificate:

CE , ISO , RoHS

Operate Temperature:

-40-+80

Fiber Count:

12 Core

Supply Ability:

100,000 pcs per month

Highlight:

variable optical attenuator

single mode fiber attenuator

Product Description

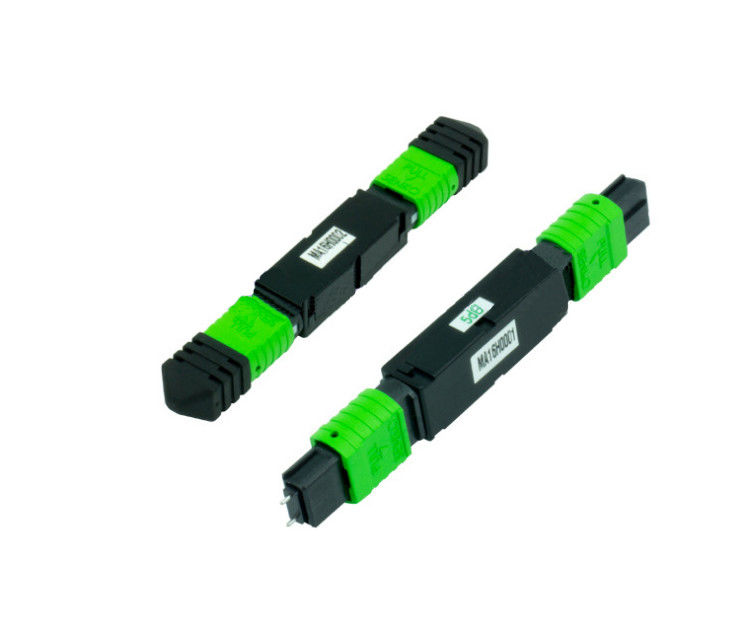

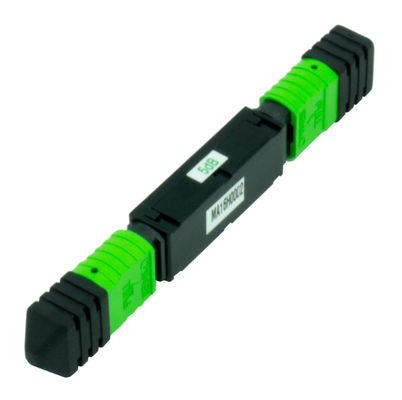

MPO/MTP Male to Female Single Mode Fiber Attenuator - 12 Fiber

The MPO/MTP male to female single mode attenuator is engineered to reduce optical signal power across all channels in 40G/100G parallel optic transmission systems and other equipment utilizing MPO interconnections.

This innovative product streamlines network architecture compared to traditional methods that require individual attenuators for each channel, resulting in space savings and installation efficiency.

Compliant with TIA/EIA 604-5 and IEC 61754-7 standards, this RoHS-certified attenuator ensures reliable performance in demanding optical network environments.

Product Specifications

Model Number	MPO(MTP)-attenuator
Core Configuration	Multicore
Certifications	RoHS, ISO9001, IEC, Tlc, SGS, Reach
Sheath Material	PVC
Return Loss	60dB (8° Polishing)
Operation Wavelength	1310/1550nm
Attenuation Tolerance	±1dB (at 2-10dB), ±10% (at 11-20dB)
Housing Dimension	25.316.25.9mm
Jacket Color	Black, Green, Yellow
Attenuation Range	1~20dB (SM 1310/1550nm)
Operating Temperature	-25°C to 75°C
Transport Package	1PCS/Bag, Standard Carton Package
Origin	China

Technical Parameters

Attenuation Value	0dB to 30dB
Operating Wavelength	SM: 1260nm~1620nm, MM: 850/1300nm (Customer ordered)
Return Loss	UPC≥50dB, APC≥60dB
Polarization Loss	≤0.2dB
Attenuation Tolerance	0dB~9dB: 0.5dB, 10~30dB: 10% of attenuation value
Maximum Power Capability	250mW
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C

WHATSAPP: 008613534063703

Key Features

High Stability and High Durability
Compact Housing Dimension
QSFP Available (Option of female/male type of MPO/MTP connector)
RoHS Compliant

Applications

Data Center Infrastructure
Storage Area Network and Fiber Channel
Various 40G and 100Gbps Protocols
