MPO Cassette Module

12 Core MPO MTP Ber Optic Cassette Module Single Mode For 19" 1U Distribution Box

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

12 Core MPO MTP Ber Optic Cassette Module Single Mode For 19" 1U Distribution Box

Brand Name:	New Light
Model Number:	MPO -LC
MOQ:	1~10000
Price:	5~100
Packaging Details:	foam + carton box
Payment Terms:	T/T, Western Union, MoneyGram , paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE / ISO / RoHS

Cassette Material:

Aluminum

Cassette Size:

117*99*35mm

MPO Connector Type:

12 Core Male

Max Capacity:

24 Cores

Suitable Adaptor:

Patch Cord Length:

0.5 Meter

Cable Diameter:

0.9mm

Cable Color:

12 Color ( Blue,orange ,green ,brown,grey ,white,red,etc)

Mode Type:

Single Mode

Cable Type:

G652D

LC Insertion Loss:

≤ 0.3dB

LC Return Loss:

≥55dB

MPO Return Loss:

≥40dB

MPO Insertion Loss:

≤ 0.75dB

Wavelength:

850/1300nm

Cable Material:

OEM/ ODM:

Acceptable

Supply Ability:

2000 pcs per month

Highlight:

mpo cassette patch panel

mtp casstte module

Product Description

12 core single mode MPO MTP fiber optic cassette module for 19" 1U distribution box

The 12 core single mode MPO MTP fiber optic cassette module if suitable for 19" 1U or 2U fiber optic distribution box .,and the the core count is according to your requirements .

single mode type 12 core MPO MTP fiber optic casstte module can transfer long distance data . The color of the LC connector is blue . and cable diameter is 0.9mm .

Due to the space of the module is small , so the length of the patch cord inside of the module is 0.3-0.5meter .

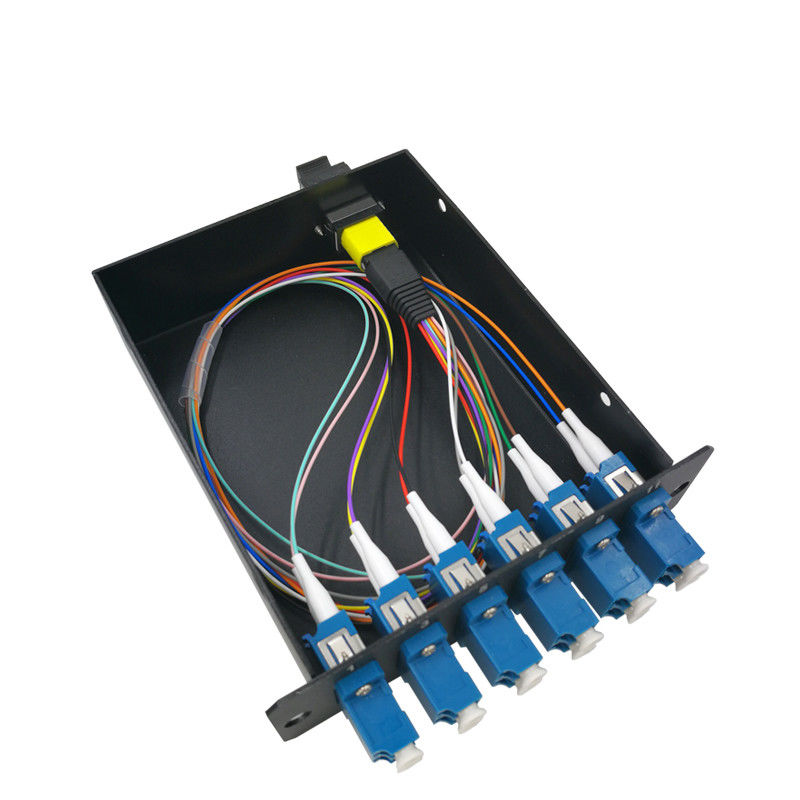

The patch cord inside of the cassette module is 1 pcs of 12 core MPO-LC single mode G652D 0.9mm PVC 0.5meter . below are the pictures of the patch cord inside of module .

Warm: this type of MPO cassette module is design for our 1U distribution box , please confirm the size of the patch panel with us before you order .otherwise it will not match for your 1U patch panel .

it have 12 core / 24 core of the module , and the patch cord inside can be customized according to your requirements .

12 Core MPO MTP Ber Optic Cassette Module Single Mode For 19" 1U Distribution Box 0

Technical Parameter

products name	12 core single mode MPO MTP fiber optic cassette module for 19" 1U distribution box
casstte size	1179935mm
mode type	single mode
cable count	12 core
core type	G652D
MPO connector	12 fiber male
cable color	12 color
cable diameter	0.9mm
patch cord length	0.5 meter ( can be customized according to your request )
out jacket material	LSZH ( can be PVC or LSZH )
LC insertion loss	≤ 0.3dB
LC return loss	≥55 dB
wave length	1310/1550nm
core type	9/125um
LC connector color	Blue
LC ferrule material	Ceramic
MPO ferrule material	plastic
MPO insertion loss	≤0.7dB
MPO return loss	≥40dB
operater temperature	-40~ +85℃
OEM/ODM	acceptable
warranty	3 years after delivery
Delivery time	2-15 working days ( according to your quantity )

How to order

1. Connector type : MPO-LC
2. Mode type : single mode / multi mode
3. Cable diameter : 0.9 mm
4. Coating material : PVC / LSZH
5. fiber count :12 core / 24core
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
