12 Core Single Mode MPO MTP Fiber Optic Cassette Module for 19" 1U Distribution Box

Brand Name:	New Light
Model Number:	MPO -LC
MOQ:	1~10000
Price:	5~100
Packaging Details:	foam + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE / ISO / RoHS

Cassette Material:

Aluminum

Cassette Size:

117*99*35mm

MPO Connector Type:

12 Core Male

Max Capacity:

24 Cores

Suitable Adaptor:

Patch Cord Length:

0.5 Meter

Cable Diameter:

0.9mm

Cable Color:

12 Color ( Blue,orange ,green ,brown,grey ,white,red,etc)

Mode Type:

Single Mode

Cable Type:

G652D

LC Insertion Loss:

≤ 0.3dB

LC Return Loss:

≥55dB

MPO Return Loss:

≥40dB

MPO Insertion Loss:

≤ 0.75dB

Wavelength:

850/1300nm

Cable Material:

OEM/ ODM:

Acceptable

Supply Ability:

2000 pcs per month

Highlight:

mpo cassette patch panel

mtp casstte module

Product Description

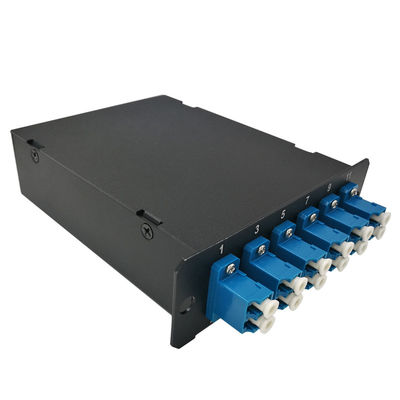

12 Core MPO MTP Fiber Optic Cassette Module - Single Mode

This 12-core single mode MPO MTP fiber optic cassette module is designed for 19" 1U or 2U fiber optic distribution boxes. The module features customizable core counts to meet your specific requirements.

Engineered for long-distance data transmission, this cassette module features blue LC connectors and 0.9mm diameter cables. The compact design accommodates internal patch cords measuring 0.3-0.5 meters in length.

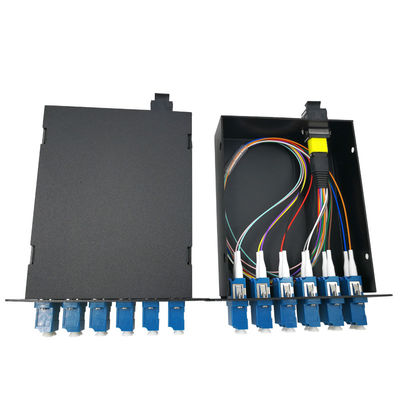

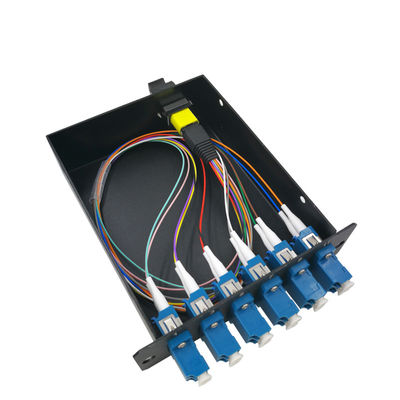

Each module contains one 12-core MPO-LC single mode G652D patch cord with 0.9mm PVC jacket and 0.5-meter length. The internal components are optimized for reliable performance in high-density fiber optic installations.

Important Note: This MPO cassette module is specifically designed for our 1U distribution boxes. Please verify your patch panel dimensions with us before ordering to ensure proper compatibility.

Available in 12-core and 24-core configurations with fully customizable internal patch cords to match your network requirements.

Technical Specifications

Parameter	Specification
Product Name	12 Core Single Mode MPO MTP Fiber Optic Cassette Module
Cassette Size	1179935mm
Mode Type	Single Mode
Fiber Count	12 Core
Core Type	G652D
MPO Connector	12 Fiber Male
Cable Color	12 Colors
Cable Diameter	0.9mm
Patch Cord Length	0.5 meter (customizable)
Jacket Material	LSZH (PVC or LSZH options available)
LC Insertion Loss	≤ 0.3dB
LC Return Loss	≥55 dB
Wavelength	1310/1550nm
Core Size	9/125μm
LC Connector Color	Blue
LC Ferrule Material	Ceramic
MPO Ferrule Material	Plastic
MPO Insertion Loss	≤0.7dB
MPO Return Loss	≥40dB
Operating Temperature	-40°C to +85°C
OEM/ODM	Acceptable
Warranty	3 Years After Delivery
Delivery Time	2-15 Working Days (quantity dependent)

Ordering Information

Required Specifications for Custom Orders:

Connector Type: MPO-LC
Mode Type: Single Mode / Multi Mode
Cable Diameter: 0.9mm
Coating Material: PVC / LSZH
Fiber Count: 12 Core / 24 Core
Cable Type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5

Contact for Orders & Customization: WhatsApp: +8613534063703
