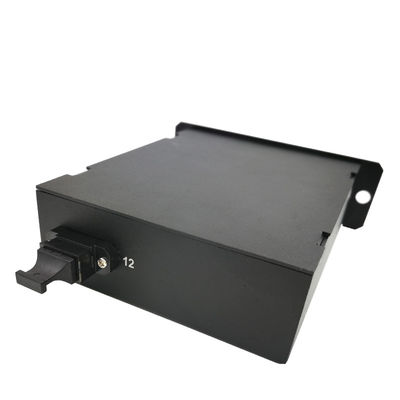

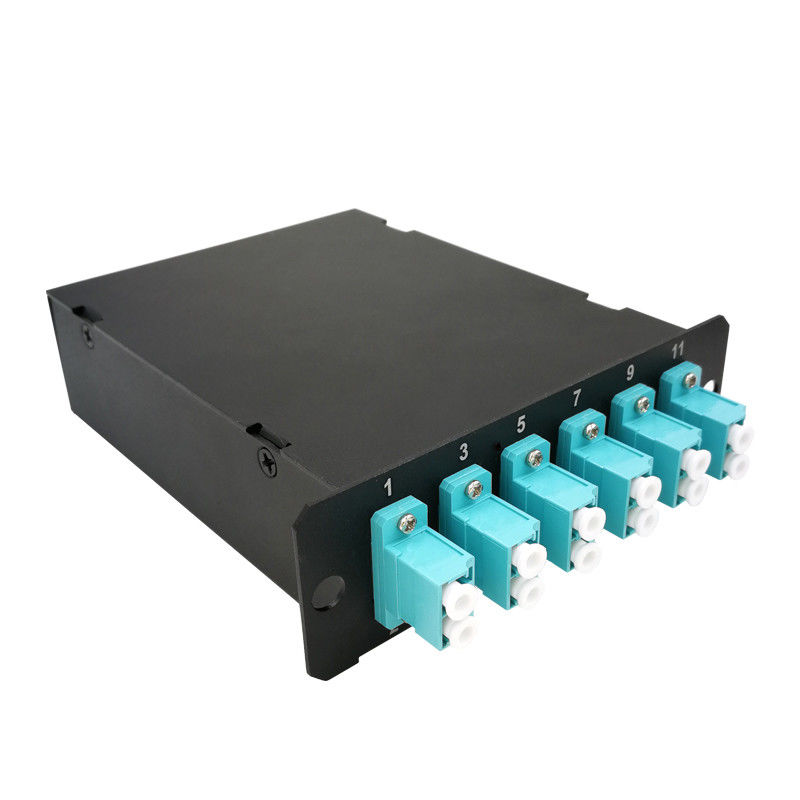

12 Fiber MPO Cassette Module Multi Mode Fiber Optic Cassette with Aluminum Material Box

Brand Name:	New Light
Model Number:	MPO -LC
MOQ:	1~10000
Price:	5~100
Packaging Details:	foam + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE / ISO / RoHS

Cassette Material:

Aluminum

Cassette Size:

117*99*35mm

MPO Connector Type:

12 Core Male

Max Capacity:

24 Cores

Suitable Adaptor:

Patch Cord Length:

0.5 Meter

Cable Diameter:

0.9mm

Cable Color:

12 Color ( Blue,orange ,green ,brown,grey ,white,red,etc)

Mode Type:

Multi Mode

Cable Type:

OM3-150

LC Insertion Loss:

≤ 0.3dB

LC Return Loss:

≥45dB

MPO Return Loss:

≥25dB

MPO Insertion Loss:

≤ 0.5dB

Wavelength:

850/1300nm

Cable Material:

OEM/ ODM:

Acceptable

Supply Ability:

2000 pcs per month

Highlight:

fiber optic cassette module

mtp casstte module

Product Description

MPO MTP Multi-Mode Fiber Optic Cassette Module

12 Fiber MPO MTP Multi-Mode Fiber Optic Cassette Module Metal Material Box

Patch Cord Specification: 12 Fiber MPO/Male-LC Multi Mode OM3-150 50/125 PVC 0.9mm 0.5 Meter

Technical Specifications

Parameter	Specification
Product Name	12 Fiber MPO MTP Multi-Mode Fiber Optic Cassette Module
Cassette Size	1179935mm
Mode Type	Multi Mode
Fiber Count	12 Core
Core Type	OM3-150
MPO Connector	12 Fiber Male
Cable Color	12 Colors
Cable Diameter	0.9mm
Patch Cord Length	0.5 Meter (Customizable)
Outer Jacket Material	LSZH (PVC or LSZH options available)
LC Insertion Loss	≤ 0.3dB
LC Return Loss	≥ 45dB
Wavelength	850/1300nm
Core Type	50/125μm
LC Connector Color	Aqua
LC Ferrule Material	Ceramic
MPO Ferrule Material	Plastic
MPO Insertion Loss	≤ 0.5dB
MPO Return Loss	≥ 25dB
Operating Temperature	-40°C to +85°C
OEM/ODM	Acceptable
Warranty	3 Years After Delivery
Delivery Time	2-15 Working Days (Based on Quantity)

Due to the compact module design, the internal patch cord length is limited to 0.3-0.5 meters.

Important Notice: This MPO cassette module is specifically designed for our 1U distribution box. Please confirm your patch panel dimensions with us before ordering to ensure compatibility.

Available in 12-core and 24-core configurations. Internal patch cords can be customized according to your specific requirements.

Ordering Information

Required Specifications for Ordering:

Connector Type: MPO-LC
Mode Type: Single Mode / Multi Mode
Cable Diameter: 0.9mm
Coating Material: PVC / LSZH
Fiber Count: 12 Core / 24 Core
Cable Type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5

Contact for Orders: WhatsApp +8613534063703
