MPO MTP Mulit Mode Fiber Optic Cassette Module Metal Material Box 12 Fiber

Brand Name:	New Light
Model Number:	MPO -LC
MOQ:	1~10000
Price:	5~100
Packaging Details:	foam + carton box
Payment Terms:	T/T, Western Union, MoneyGram , paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE / ISO / RoHS

Cassette Material:

Aluminum

Cassette Size:

117*99*35mm

MPO Connector Type:

12 Core Male

Max Capacity:

24 Cores

Suitable Adaptor:

Patch Cord Length:

0.5 Meter

Cable Diameter:

0.9mm

Cable Color:

12 Color ( Blue,orange ,green ,brown,grey ,white,red,etc)

Mode Type:

Multi Mode

Cable Type:

OM3-150

LC Insertion Loss:

≤ 0.3dB

LC Return Loss:

≥45dB

MPO Return Loss:

≥25dB

MPO Insertion Loss:

≤ 0.5dB

Wavelength:

850/1300nm

Cable Material:

OEM/ ODM:

Acceptable

Supply Ability:

2000 pcs per month

Highlight:

fiber optic cassette module

mtp casstte module

Product Description

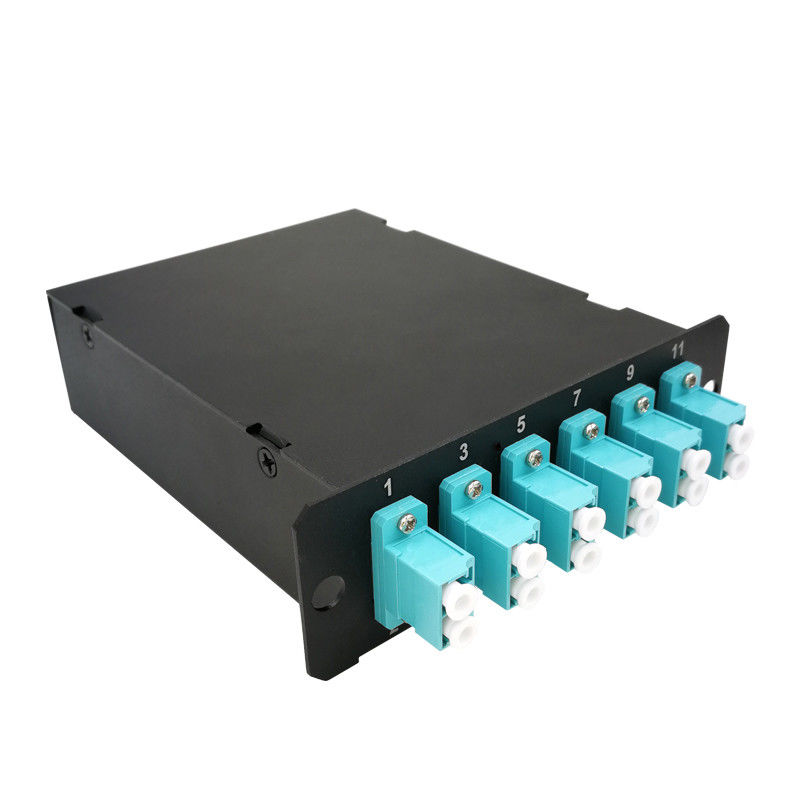

12 fiber MPO MTP mulit mode fiber optic cassette module metal material box

patch cord specification : 12 fiber MPO/male-LC multi mode OM3-150 50/125 PVC 0.9mm 0.5meter

Technical Parameter

products name	12 fiber MPO MTP mulit mode fiber optic cassette module metal material box
casstte size	1179935mm
mode type	multi mode
cable count	12 core
core type	OM3-150
MPO connector	12 fiber male
cable color	12 color
cable diameter	0.9mm
patch cord length	0.5 meter ( can be customized according to your request )
out jacket material	LSZH ( can be PVC or LSZH )
LC insertion loss	≤ 0.3dB
LC return loss	≥45 dB
wave length	850/1300nm
core type	50/125um
LC connector color	Aqua
LC ferrule material	Ceramic
MPO ferrule material	plastic
MPO insertion loss	≤0.5dB
MPO return loss	≥25dB
operater temperature	-40~ +85℃
OEM/ODM	acceptable
warranty	3 years after delivery
Delivery time	2-15 working days ( according to your quantity )

Due to the space of the module is small , so the length of the patch cord inside of the module is 0.3-0.5meter .

Warm: this type of MPO cassette module is design for our 1U distribution box , please confirm the size of the patch panel with us before you order .otherwise it will not match for your 1U patch panel .

it have 12 core / 24 core of the module , and the patch cord inside can be customized according to your requirements .

How to order

1. Connector type : MPO-LC
2. Mode type : single mode / multi mode
3. Cable diameter : 0.9 mm
4. Coating material : PVC / LSZH
5. fiber count :12 core / 24core
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
