Single Mode MPO Cassette Module with 12 Core Male MPO Connector and Aluminum Cassette for LC Duplex SC Sinplex Connector

Brand Name:	New Light
Model Number:	MPO -LC /SC
MOQ:	1~10000
Price:	5~100
Packaging Details:	foam + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE / ISO / RoHS

Cassette Material:

Aluminum

Cassette Size:

117*99*35mm

MPO Connector Type:

12 Core Male

Max Capacity:

24 Cores

Suitable Adaptor:

LC And SC

Patch Cord Length:

0.5 Meter

Cable Diameter:

0.9mm

Cable Color:

12 Color ( Blue,orange ,green ,brown,grey ,white,red,etc)

Mode Type:

Single Mode

Cable Type:

G652D

LC/SC Insertion Loss:

≤ 0.3dB

LC/SC Return Loss:

≥55dB

MPO Return Loss:

≥40dB

MPO Insertion Loss:

≤ 0.75dB

Wavelength:

1310/1550nm

Cable Material:

OEM/ ODM:

Acceptable

Supply Ability:

2000 pcs per month

Highlight:

mpo cassette patch panel

fiber optic cassette module

Product Description

Single Mode Fiber Optic Cassette MPO MTP LC Duplex SC Simplex Connector G652D Cable

Product Overview

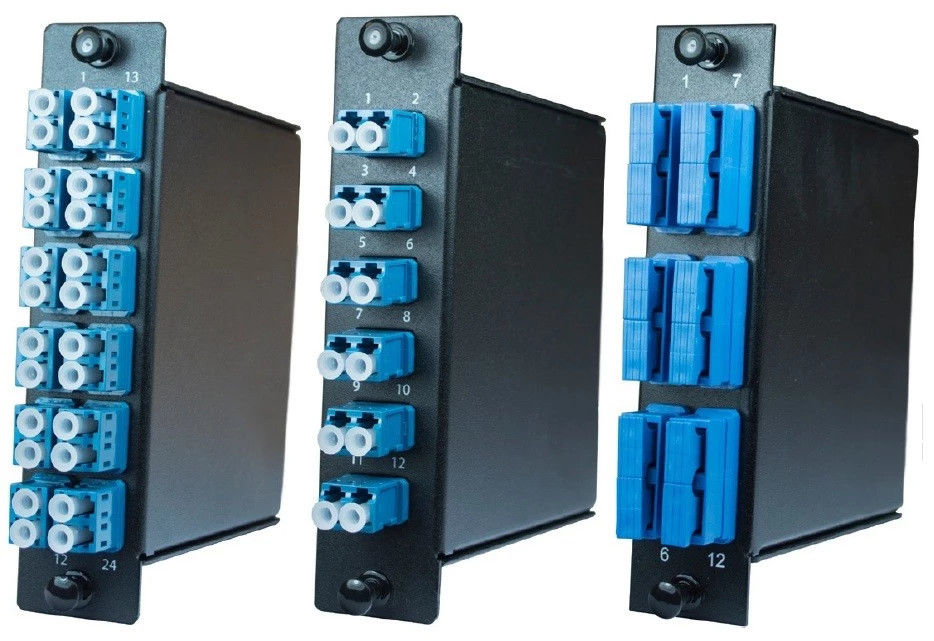

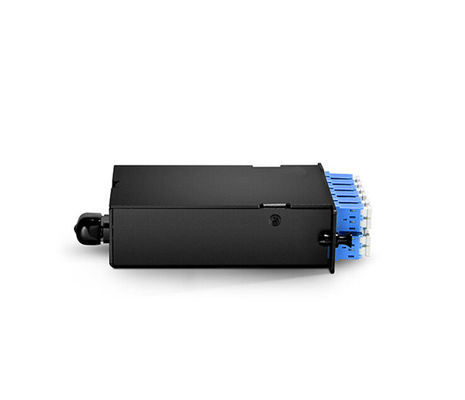

The MPO MTP single mode LC duplex SC simplex connector fiber optic cassette module provides essential space-saving solutions for telecommunications rooms and data centers.

These compact yet powerful MTP cassettes feature pre-terminated and pre-tested fiber harnesses with singlemode 9/125 micron optical fibers, offering reliable network management in constrained spaces.

Key Features

Single MTP port connection with 12-fiber capacity
Fan-out configuration to 6 duplex SC connections
Pre-terminated and factory-tested harnesses
Space-efficient design for high-density applications
Compatible with standard MTP cable assemblies

Technical Specifications

Parameter	Specification
Product Name	MPO MTP Single Mode LC Duplex SC Simplex Connector Fiber Optic Cassette Module
Cassette Size	1179935mm
Mode Type	Single Mode
Cable Count	12 Core
Core Type	G652D
MPO Connector	12 Fiber Male
Cable Color	12 Color
Cable Diameter	0.9mm
Patch Cord Length	0.5 meter (customizable)
Outer Jacket Material	LSZH (PVC or LSZH options available)
LC/SC Insertion Loss	≤ 0.3dB
LC/SC Return Loss	≥55 dB
Wavelength	1310/1550nm
Core Type	9/125μm
LC/SC Connector Color	Blue
LC/SC Ferrule Material	Ceramic
MPO Ferrule Material	Plastic
MPO Insertion Loss	≤0.75dB
MPO Return Loss	≥40dB
Operating Temperature	-40°C to +85°C
Warranty	3 Years After Delivery
Delivery Time	2-15 Working Days (based on quantity)

Important Notes

Internal patch cord length is 0.3-0.5 meters due to compact module design.

This MPO cassette module is designed for our 1U distribution box. Please confirm patch panel size compatibility before ordering.

Available in 12-core and 24-core configurations with customizable patch cord specifications.

Standard Configuration

12 core MPO/Male - LC Single Mode 9/125 G652D PVC 0.9mm 0.5meter

How to Order

Connector Type: MPO-LC
Mode Type: Single Mode / Multi Mode
Cable Diameter: 0.9mm
Coating Material: PVC / LSZH
Fiber Count: 12 Core / 24 Core
Cable Type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5

Contact for Custom Orders

WhatsApp: +8613534063703

OEM/ODM services available
