MPO Cassette Module

12 Fiber LC Adaptor Single Mode MPO Cassette Module with Aluminum Cassette for High-Density Connectivity

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

12 Fiber LC Adaptor Single Mode MPO Cassette Module with Aluminum Cassette for High-Density Connectivity

Brand Name:	New Light
Model Number:	MPO -LC
MOQ:	1~10000
Price:	5~100
Packaging Details:	foam + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE / ISO / RoHS

Cassette Material:

Aluminum

Cassette Size:

117*99*35mm

MPO Connector Type:

12 Core Male

Max Capacity:

24 Cores

Suitable Adaptor:

Patch Cord Length:

0.5 Meter

Cable Diameter:

0.9mm

Cable Color:

12 Color ( Blue,orange ,green ,brown,grey ,white,red,etc)

Mode Type:

Single Mode

Cable Type:

9/125

LC/SC Insertion Loss:

≤ 0.3dB

LC/SC Return Loss:

≥55dB

MPO Return Loss:

≥40dB

MPO Insertion Loss:

≤ 0.75dB

Wavelength:

1310/1550nm

Cable Material:

OEM/ ODM:

Acceptable

Supply Ability:

2000 pcs per month

Highlight:

mpo cassette patch panel

mtp casstte module

Product Description

LC Single Mode Connector MPO Cassette Patch Panel

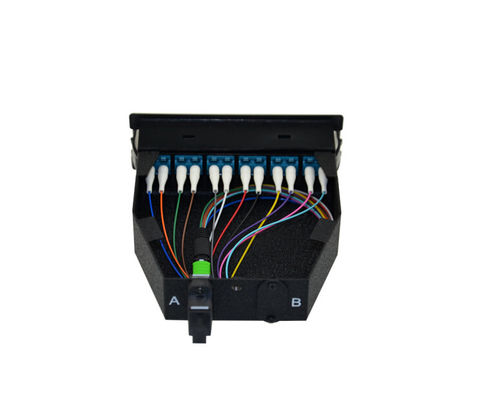

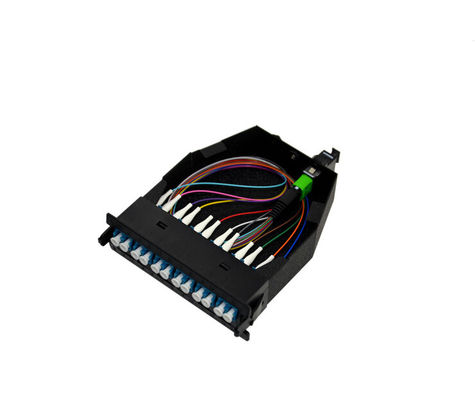

This 12-fiber MTP cassette module features LC single mode connectors with an MPO adapter, designed for high-density data center applications.

Product Overview

The MPO cassette module provides secure transition between MPO backbone connections and LC discrete connectors. This modular system enables rapid deployment of high-density data center infrastructure with improved troubleshooting and reconfiguration capabilities.

Key Features

12-core MPO male to LC single mode connectors
Includes one MTP brand adapter in back
Fan out assembly inside cassette
4 duplex LC connections in front panel
Compatible with 1U or 2U 19″ multislot chassis
Modular design for easy configuration

Technical Specifications

Cassette Size	1179935mm
Mode Type	Single Mode
Fiber Count	12 Core
Core Type	9/125 G657A1
MPO Connector	12 Fiber Male
Cable Diameter	0.9mm
Patch Cord Length	0.5 meter (customizable)
Jacket Material	LSZH (PVC available)
LC Insertion Loss	≤ 0.3dB
LC Return Loss	≥55 dB
Wavelength	1310/1550nm
LC Connector Color	Blue
LC Ferrule Material	Ceramic
MPO Ferrule Material	Plastic
MPO Insertion Loss	≤0.75dB
MPO Return Loss	≥40dB
Operating Temperature	-40°C to +85°C
Warranty	3 Years
Delivery Time	2-15 Working Days

Important Note: This MPO cassette module is designed for our 1U distribution box. Please confirm patch panel compatibility before ordering. Available in 12-core and 24-core configurations with customizable internal patch cords.

Customization Options

Available in various configurations including 12-core or 24-core modules with customizable fiber types and specifications.

How to Order

Specify connector type: MPO-LC
Select mode type: Single Mode / Multi Mode
Choose cable diameter: 0.9mm
Specify coating material: PVC / LSZH
Select fiber count: 12 core / 24 core
Choose cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5

Contact for Orders: WhatsApp +8613534063703
