LC Single Mode Connector MPO Cassette Patch Panel 12 Fiber LC Adaptor Suitable

Brand Name:	New Light
Model Number:	MPO -LC
MOQ:	1~10000
Price:	5~100
Packaging Details:	foam + carton box
Payment Terms:	T/T, Western Union, MoneyGram , paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE / ISO / RoHS

Cassette Material:

Aluminum

Cassette Size:

117*99*35mm

MPO Connector Type:

12 Core Male

Max Capacity:

24 Cores

Suitable Adaptor:

Patch Cord Length:

0.5 Meter

Cable Diameter:

0.9mm

Cable Color:

12 Color ( Blue,orange ,green ,brown,grey ,white,red,etc)

Mode Type:

Single Mode

Cable Type:

9/125

LC/SC Insertion Loss:

≤ 0.3dB

LC/SC Return Loss:

≥55dB

MPO Return Loss:

≥40dB

MPO Insertion Loss:

≤ 0.75dB

Wavelength:

1310/1550nm

Cable Material:

OEM/ ODM:

Acceptable

Supply Ability:

2000 pcs per month

Highlight:

mpo cassette patch panel

mtp casstte module

Product Description

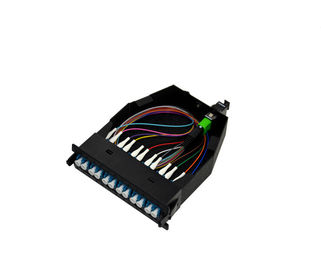

12 fiber MTP casstte module for LC single mode connector with 1pcs MPO adaptor

Casstte patch cord specification :12 core MPO/male -LC single mode 9/125 G657A1 LSZH 0.9mm 0.5meter

The singlemode or multimode MPO connector are multifiber connections used in high-density backplane and Printed Circuit Board (PCB) applications in data and telecommunications systems. The MPO fiber cable connector offers up to 12 times the density of standard connectors, providing significant space and cost savings.

MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching.

Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 2U 19″ multislot chassis.

What's Inside:

One MTP brand adaptor in back
Fan out assembly inside the cassette
4 duplex LC connections in the front
Cassette module body can be configured to multiple manufacturers fit and form factor

Technical Parameter

products name	MTP casstte module with multi mode aqua LC 4C adaptor and connetor 12core
casstte size	1179935mm
mode type	single mode
cable count	12 core
core type	9/125 G657A1
MPO connector	12 fiber male
cable color	12 color
cable diameter	0.9mm
patch cord length	0.5 meter ( can be customized according to your request )
out jacket material	LSZH ( can be PVC or LSZH )
LC /SC insertion loss	≤ 0.3dB
LC /SC return loss	≥55 dB
wave length	1310/1550nm
core type	9/125um
LC /SCconnector color	Blue
LC/SC ferrule material	Ceramic
MPO ferrule material	plastic
MPO insertion loss	≤0.75dB
MPO return loss	≥40dB
operater temperature	-40~ +85℃
OEM/ODM	acceptable
warranty	3 years after delivery
Delivery time	2-15 working days ( according to your quantity )

Due to the space of the module is small , so the length of the patch cord inside of the module is 0.3-0.5meter .

Warm: this type of MPO cassette module is design for our 1U distribution box , please confirm the size of the patch panel with us before you order .otherwise it will not match for your 1U patch panel .

it have 12 core / 24 core of the module , and the patch cord inside can be customized according to your requirements .

How to order

1. Connector type : MPO-LC
2. Mode type : single mode / multi mode
3. Cable diameter : 0.9 mm
4. Coating material : PVC / LSZH
5. fiber count :12 core / 24core
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
