24 Fiber 0.9mm Cable MTP Cassette Module with OM5 PC Polish LC Adaptor Patch Cord

Brand Name:	New Light
Model Number:	MPO -LC
MOQ:	1~10000
Price:	5~100
Packaging Details:	foam + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE / ISO / RoHS

Cassette Material:

Aluminum

Cassette Size:

117*99*35mm

MPO Connector Type:

24 Core Male

Max Capacity:

24 Cores

Suitable Adaptor:

Patch Cord Length:

0.5 Meter

Cable Diameter:

0.9mm

Cable Color:

12 Color ( Blue,orange ,green ,brown,grey ,white,red,etc)

Mode Type:

Multi Mode

Cable Type:

50/125 OM5

LC/SC Insertion Loss:

≤ 0.3dB

LC/SC Return Loss:

≥45dB

MPO Return Loss:

≥25dB

MPO Insertion Loss:

≤ 0.5dB

Wavelength:

850/1300nm

Cable Material:

OEM/ ODM:

Acceptable

Supply Ability:

2000 pcs per month

Highlight:

mpo cassette patch panel

mtp casstte module

Product Description

24 Fiber 0.9mm Cable MTP Cassette Module Green LC Adaptor OM5 PC Polish Patch Cord

Product Overview

0.5M 24 fiber 0.9mm cable MTP cassette module green LC adaptor OM5 PC polish patch cord

Cassette patch cord specification: 2 pcs 12 core MPO/male - LC multimode 50/125 OM5 LSZH 0.9mm 0.5meter

Fibertronics fiber optic MTP/MPO cassettes provide an easy and cost-effective no-splice solution for transferring from multi-fiber cables to fiber optic patch cables without using splice-on pigtails.

Product Features

Made with high-quality fiber optic cable
Available in various fiber modes: Single-mode (9/125um), Multimode OM1 (62.5/125um), Multimode OM3 (50/125um) and others
Multiple connector port options: LC/UPC, LC/PC, LC/APC, SC/UPC, SC/PC, SC/APC, FC, FC/APC, and ST fiber optic connectors
Available with Male or Female MTP/MPO connectors

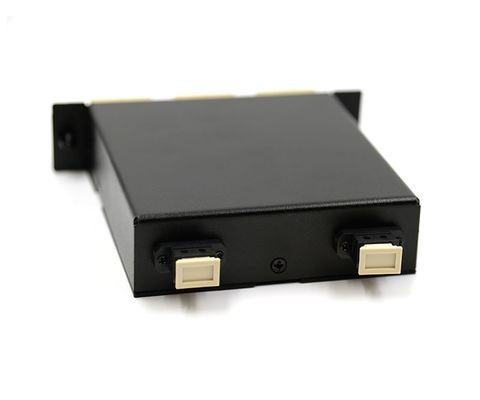

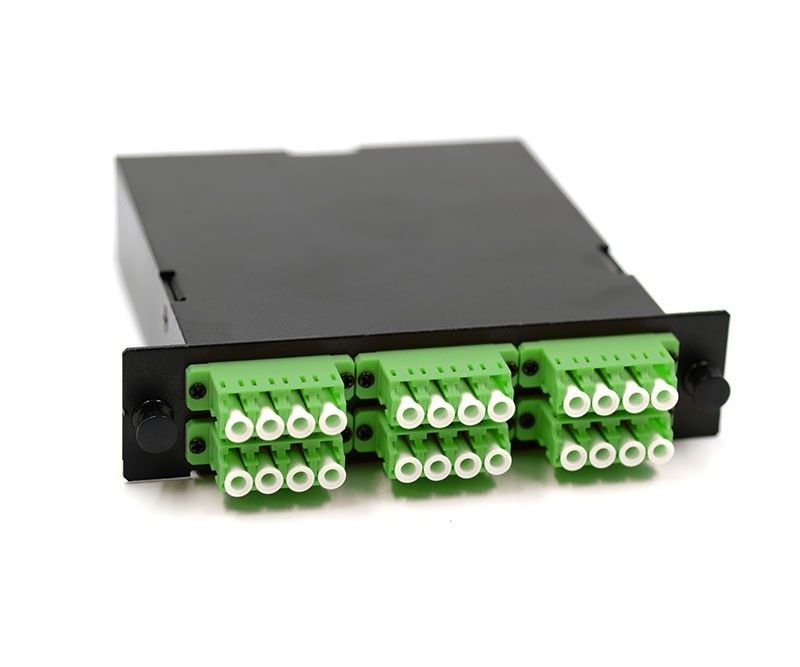

24 fiber modules feature 24 fiber LC (12 duplex LC capacity) on front and two 12 fiber MPO adapters on rear
Internal cable harness connects front and rear adapters
Compatible with MPO cassette series rack and wall mount patch panels

Technical Specifications

Product Name	24 fiber 0.9mm cable MTP cassette module 50/125 PC polish 0.5meter fiber optic patch cord
Cassette Size	1179935mm
Mode Type	Multimode
Cable Count	24 core
Core Type	OM3-300
MPO Connector	12 fiber male
Cable Color	12 color
Cable Diameter	0.9mm
Patch Cord Length	0.5 meter (customizable)
Outer Jacket Material	LSZH (PVC or LSZH options available)
LC/SC Insertion Loss	≤ 0.3dB
LC/SC Return Loss	≥45 dB
Wavelength	850/1300nm
Core Type	50/125um
LC/SC Connector Color	Aqua
LC/SC Ferrule Material	Ceramic
MPO Ferrule Material	Plastic
MPO Insertion Loss	≤0.5dB
MPO Return Loss	≥25dB
Operating Temperature	-40°C to +85°C
OEM/ODM	Acceptable
Warranty	3 years after delivery
Delivery Time	2-15 working days (depending on quantity)

Important Notes

Due to the compact module space, the internal patch cord length is 0.3-0.5 meter.

This MPO cassette module is designed for our 1U distribution box. Please confirm patch panel size with us before ordering to ensure compatibility.

Available in 12 core / 24 core configurations with customizable internal patch cords.

How to Order

Connector type: MPO-LC
Mode type: Single mode / Multi mode
Cable diameter: 0.9 mm
Coating material: PVC / LSZH
Fiber count: 12 core / 24 core
Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
