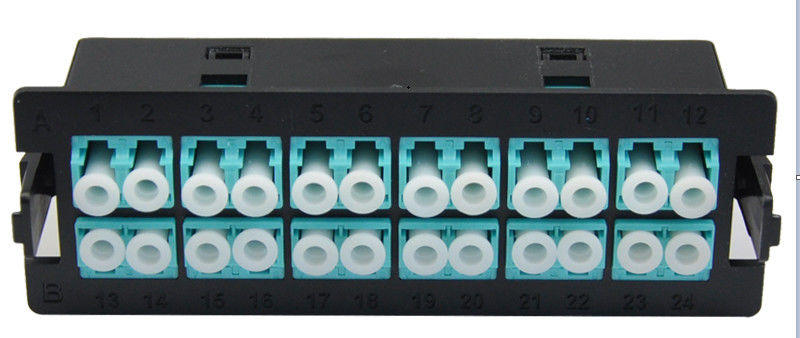

Black LC Insert Duplex Fiber Optic Patch Panel 24 Port For 1U Distribution Box

     black LC insert duplex 24 port fiber optic patch panel for 1U distribution box

One 1U distribution box  have 4 port  . each port can be SC / LC / MPO /E2000 type patch panel .

If for LC connector  ,the patch panel can be 6 pcs duplex adaptor ,  the bottom 6 ports can covered by plastic clips as the picture below

The patch pannel is use for 19inch 1U distribution frame , also can called distribution box . it is easy to install and replace when the old patch panel is out of work .

This plastic LC duplex 24 port fiber optic patch panel only application for our 1U distribution box , because it have a clip on two side , it can be installed without screws  ,it is more convenient .

This patch panel is LC duplex 24 ports patch panel , it can be single mode and multi mode according to your requirements .It can max for 24 fiber LC connector . it is use 12 pcs duplex LC adaptor.

The material of the patch panel is plastic . it can save lots of cost for shipping and not it will be not rusted when using .It is a new type of patch panel and very polular in our market  .

The patch panel is use for wire the fiber optic pigtail type 1U distribution box  .

Application picture

Features and Benefits

Multiple adapter options
Fits standard 19” racks
45° open working angle
Up to 48 fibres in 1U

Applications

Indoor applications
Data centres
Telecommunication networks
Premise
Data communication

Specification

How to order :

1. connector type : LC /SC /ST / E2000

2. simplex  / duplex

3. fiber count : 12 fiber / 24 fiber / 48 fiber / 96 fiber

4. 1U box size .

5. quantity
