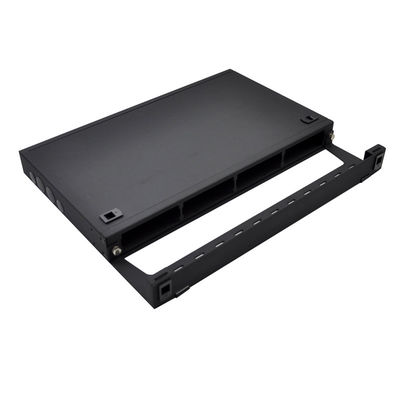

Sliding Type 19 Inch Rack Mount Fiber Optic Patch Panel with 12/24 Port SC/LC/E2000 for FTTH

Brand Name:	New light
Model Number:	12/ 24 F panel
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Fiber:

12 / 24 Fiber

Color:

Black

Material:

SPECC

Aplication:

Data Centers,pre-terminated Installations

Adapter Type:

MPO / MTP Adapter

Front Panel:

LC , SC , ST , FC , E2000

Size:

19 Inch

Max Capacity:

From 12 Fiber To 144 Fiber

Interface:

Powder Coated

Product Name:

24 Fiber Rack Mounted MPO/MTP Fiber Optic Patch Panel

Tray:

12/24/48/72/96 Core

Weight:

Supply Ability:

10000 per day

Highlight:

fiber optic parts and accessories

fiber optic accessories

Product Description

Sliding Type Rack Mount Fiber Patch Panel

Fully equipped FTTH 12/24 port SC/LC/E2000 patch panel designed for high-density fiber optic network applications.

Product Overview

This sliding type patch panel features replaceable adapters (FC, SC, ST, LC) and supports both ribbon and standard fiber optic cables. The optical cable termination box provides secure fixing and welding functions, connecting optical cables to pigtails with precision.

Constructed from high-quality electrolytic plate with electrostatic spray processing, the panel offers robust structure and attractive appearance. The reversible laminated splicing plate is detachable for easy maintenance and configuration.

Available Configurations

Multiple models available to accommodate 12, 24, 36, 48, 72, 96, and 144 core fiber applications. Compatible with various adapter interfaces including SC, ST, FC, LC, MTRJ, and E2000. Optional fiber accessories and pigtails available.

Modular Design

Features a module box encapsulation structure that integrates seamlessly with wiring boxes. Compact design provides high density while maintaining convenient operation and accessibility.

Installation Compatibility

Designed for installation in 19-inch standard integrated distribution boxes, network cabinets, and open frames. Manufactured from high-quality cold-rolled sheet material with electrostatic spray treatment for uniform color and finish.

Applications

Telecommunications subscriber loop systems
Fiber to the home (FTTH) deployments
LAN/WAN network infrastructure
CATV systems and broadband networks

Key Features

Optical cable branch connection termination
19-inch standard rack mounting structure
Adapter installation compatibility
Drawer structure for easy operation
Compact space-saving design
Simplified management and operation
Standard size with lightweight construction
Rational structural design

Mechanical and Environmental Specifications

Parameter	Specification
Operating Temperature	-25℃ to +40℃
Storage Temperature	-25℃ to +55℃
Relative Humidity	≤85% (+30℃)
Air Pressure	70Kpa to 106Kpa
Color	Black

Dimensions

Model	MPO-LC Type Cassette Quantity	Height	Dimensions (LxWxH)
MPO-LC	2	1U	430 * 354.1 * 44mm
