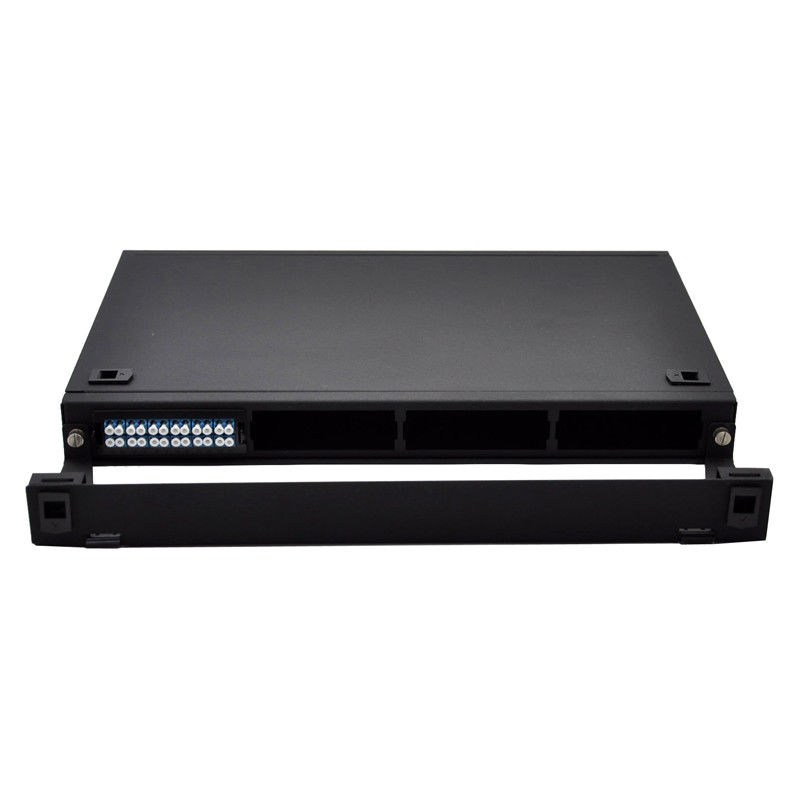

Sliding Type Rack Mount Fiber Patch Panel Fully Equipped FTTH 12 / 24 Port SC / LC / E2000

Sliding Type Rack Mount Fiber Patch Panel Fully Equipped FTTH 12 / 24 Port SC / LC / E2000
Sliding Type Rack Mount Fiber Patch Panel Fully Equipped FTTH 12 / 24 Port SC / LC / E2000
Sliding Type Rack Mount Fiber Patch Panel Fully Equipped FTTH 12 / 24 Port SC / LC / E2000 Sliding Type Rack Mount Fiber Patch Panel Fully Equipped FTTH 12 / 24 Port SC / LC / E2000 Sliding Type Rack Mount Fiber Patch Panel Fully Equipped FTTH 12 / 24 Port SC / LC / E2000 Sliding Type Rack Mount Fiber Patch Panel Fully Equipped FTTH 12 / 24 Port SC / LC / E2000

Large Image :  Sliding Type Rack Mount Fiber Patch Panel Fully Equipped FTTH 12 / 24 Port SC / LC / E2000

Product Details:
Place of Origin: China
Brand Name: New light
Certification: ROHS ;ISO9001
Model Number: 12/ 24 F panel
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: USD 68-120 set
Packaging Details: opp bag+Carton box
Delivery Time: 2-15 working days
Payment Terms: T/T, Western Union, MoneyGram ,Paypal
Supply Ability: 10000 per day

Sliding Type Rack Mount Fiber Patch Panel Fully Equipped FTTH 12 / 24 Port SC / LC / E2000

Description
Fiber: 12 / 24 Fiber Color: Black
Material: SPECC Aplication: Data Centers,pre-terminated Installations
Adapter Type: MPO / MTP Adapter Front Panel: LC , SC , ST , FC , E2000
Size: 19 Inch Max Capacity: From 12 Fiber To 144 Fiber
Interface: Powder Coated Product Name: 24 Fiber Rack Mounted MPO/MTP Fiber Optic Patch Panel
Tray: 12/24/48/72/96 Core Weight: 6kg
High Light:

fiber optic parts and accessories

,

fiber optic accessories

Sliding Type Fully Equipped FTTH 12 / 24 Port SC / LC / E2000 Patch Panel



Product description:



The panel of the adapter can be replaced with FC, SC, ST, LC. ...applies to both ribbon and normal cables.
The optical cable terminal box has the function of fixing and welding, and functions as a termination cable; it is used to connect the optical cable and the pigtail. The use of high-quality electrolytic plate, the overall electrostatic spray processing, the structure is strong, beautiful appearance; the use of reversible laminated splicing plate, detachable; suitable for ribbon and non-ribbon optical cable.



There different models to fit for 12 core fiber,24 core fiber,36 core fiber,48 core fiber, 72 core fiber,96 core fiber,144 core fiber applications. They can be with different adapter interface including the SC, ST, FC, LC MTRJ,e2000 etc . Related fiber accessories and pigtails are optional.



The module box encapsulation structure, collocation to the wiring boxes, compact structure, high density, use convenient operation.



It can be installed in a 19-inch standard integrated distribution box, network cabinet and open frame.Connect the optical path terminal.It is made of high quality cold rolled sheet material, surface electrostatic spraying treatment, no impurities, no bubble, and even color.



Sliding Type Rack Mount Fiber Patch Panel Fully Equipped FTTH 12 / 24 Port SC / LC / E2000 0



Application:



1. Telecommunications subscriber loop

2. Fiber to the home (FTTH)

3. LAN/WAN

4. CATV





Features:



Used to the branch connection of optical cable termination

19'' Standard Structure, Rack mounting

Available for the installation of adaptors

Drawer Structure, Easy for Operation.

Compact design for space saving

Easy for management and operation

Standard size, light weight and reasonable structure





Mechanical and environmental characteristics:



Projects Parameter
Operating temperature -25℃~+40℃
Storage temperature -25℃~+55℃
Relative humidity ≤85%(+30℃)
Air pressure 70Kpa~106Kpa
Color Black






Dimension:



Model MPO-LC Type Cassette Quantity Height Dimension(LxWxH)
MPO-LC 2 1U 430*354.1*44mm









Sliding Type Rack Mount Fiber Patch Panel Fully Equipped FTTH 12 / 24 Port SC / LC / E2000 1



Sliding Type Rack Mount Fiber Patch Panel Fully Equipped FTTH 12 / 24 Port SC / LC / E2000 2
