D80 FSI 600um Fiber Core Diameter Optical Fiber Patch Cord with 1700um Tight Cladding for High Power Laser Transmission

Brand Name:	New Light
Model Number:	D80
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

D80

Cable Diameter:

8.0 Mm

Fiber Core Diameter:

600um

Numerical Aperture:

0.22

Gladding Diameter:

750um

Fiber Length:

5-20

Color:

Green

Length:

OEM/ODM:

Acceptable

Package:

1 Pcs/bag

Tight Cladding Diameter（Um）:

1700

Connector Type:

D80

Cable Diameter:

8.0 Mm

Fiber Core Diameter:

600um

Numerical Aperture:

0.22

Gladding Diameter:

750um

Fiber Length:

5-20

Color:

Green

Length:

OEM/ODM:

Acceptable

Package:

1 Pcs/bag

Tight Cladding Diameter（Um）:

1700

Supply Ability:

1000000

Highlight:

single mode fiber optic cable

duplex fiber patch cord

Product Description

D80 FSI 600um Energy Optical Fiber Patch Cord

High-performance optical fiber patch cord with 1700um tight cladding diameter and silica core, designed for industrial laser applications.

Product Overview

Precision-engineered D80 SI300um energy laser-welding optical fiber patch cord with silica core features end-face precision grinding for large core energy fiber transmission.

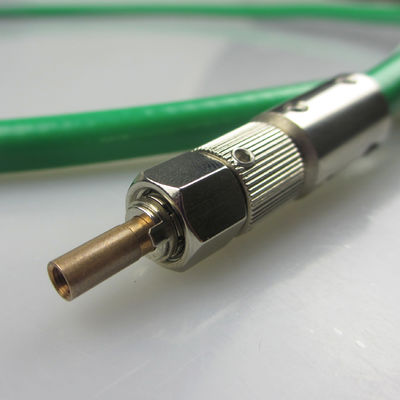

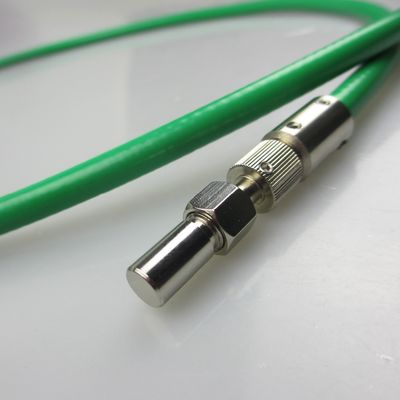

Equipped with high-precision D80 connector featuring air gap and sapphire protection, this patch cord enables high-power laser flexible transmission of up to 600W per single fiber.

With transmission efficiency exceeding 90% and stable working performance, the connector incorporates advanced ring protection technology to enhance heat dissipation and extend service life, meeting demanding requirements for laser welding, cutting, and other high-power applications.

Key Features

Sapphire protection connector
High quality stainless steel armored protection
Available in various core sizes
Precision ground end faces
High transmission efficiency (>90%)

Applications

High power laser transmission
Laser welding and cutting
Atmosphere spectrum measurement
Laser cleaning

Competitive Advantages

Quality packaging and brand-name components
International and military specifications compliance
Experienced technical staff support
Comprehensive guarantee and warranty
Competitive pricing with prompt delivery
Green product certification
Small orders accepted
Distributorships offered

Optical Fiber Transmission Line Specifications

Product Model	Fiber Core Diameter (µm)	Numerical Aperture	Cladding Diameter (µm)	Tight Cladding Diameter (µm)	Fiber Length (M)	Sheath Diameter (mm)
D80-SI-200	200	0.22	500	1300	5-20	8
D80-SI-300	300	0.22	500	1300	5-20	8
D80-SI-400	400	0.22	500	1300	5-20	8
D80-SI-600	600	0.22	750	1700	5-20	8
D80-GI-200	200	0.25	500	1300	5-20	8
D80-GI-300	300	0.25	500	1300	5-20	8
D80-GI-400	400	0.25	500	1300	5-20	8
D80-GI-600	600	0.25	750	1700	5-20	8

Optical Fiber Core Diameter End Face Analysis

A: 200um core diameter after precision grinding

B: 300um core diameter end face at 200x magnification

C: 400um core diameter end face at 200x magnification

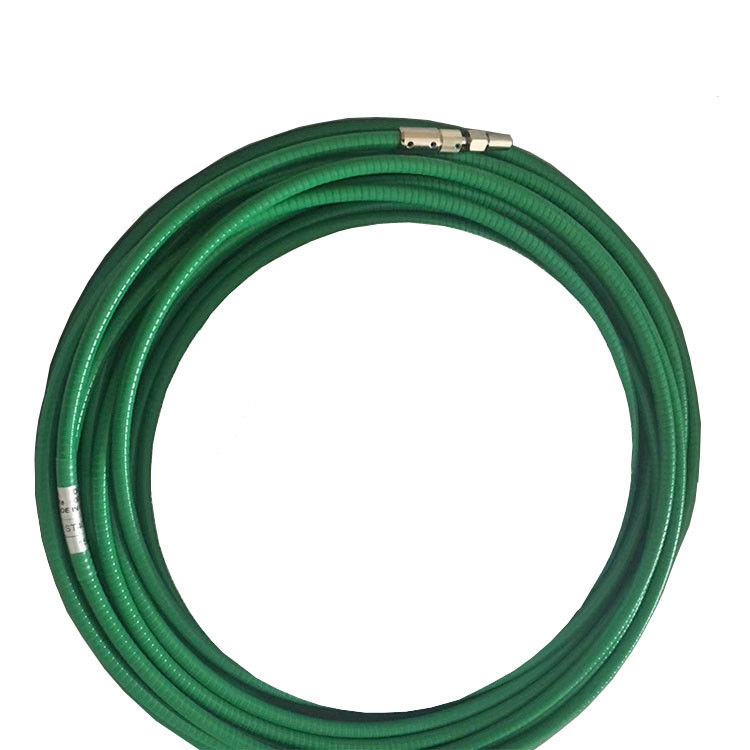

D: Finished product overview
