OTDR Multimode Fiber Optic Patch Cord with SC-SC Connector 3.0mm LSZH OM3 50/125 for Precise Testing

Brand Name:	New Light
Model Number:	SC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

SC - SC

Cable Type:

Simplex

Cable Diameter:

3.0 Mm

Jacket Material:

LSZH

Mode Type:

Multi Mode

Insertion Loss:

≤ 0.3dB

Wave Length:

1310/1550

Wavelength:

1310/1550nm

Cable Color:

White

Return Loss:

≥65dB

Material:

SR Polypropylene

Dimension:

238x141x66mm

Connector Type:

SC - SC

Cable Type:

Simplex

Cable Diameter:

3.0 Mm

Jacket Material:

LSZH

Mode Type:

Multi Mode

Insertion Loss:

≤ 0.3dB

Wave Length:

1310/1550

Wavelength:

1310/1550nm

Cable Color:

White

Return Loss:

≥65dB

Material:

SR Polypropylene

Dimension:

238x141x66mm

Supply Ability:

1000000

Highlight:

single mode fiber optic cable

duplex fiber patch cord

Product Description

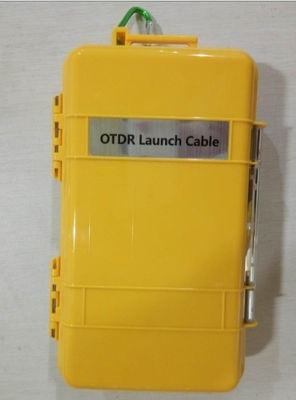

OTDR Multimode Fiber Optic Cable SC-SC Launch 3.0 LSZH OM3 50/125 Patch Cord

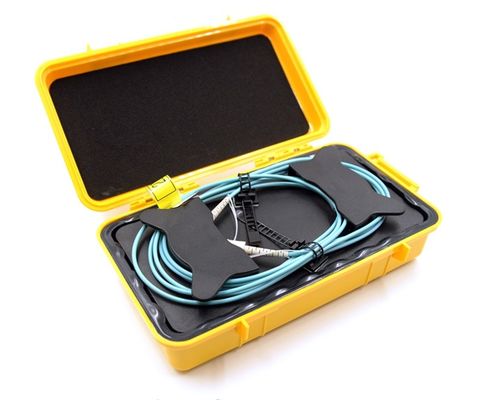

This OTDR multimode fiber optic launch cable features SC/PC connectors on both ends and is designed for precise optical time-domain reflectometer testing. The cable connects the OTDR to the link-under-test, accurately measuring insertion loss and reflectance of near-end connections.

Key Benefits:

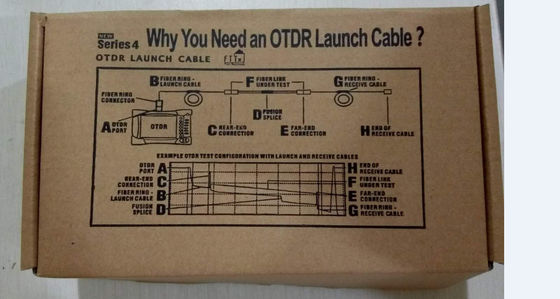

Eliminates blind spots and dead zones in OTDR measurements
Provides accurate loss and distance measurements
Reveals insertion loss and reflectance of near-end connections
Enables precise OTDR testing with reliable results

Technical Specifications

Parameter	Specification
Product Name	OTDR Multimode Fiber Optic SC-SC Launch Cable
Mode Type	Multimode
Cable Configuration	Simplex (Duplex Available)
Core Type	OM3
Cable Color	Aqua
Cable Diameter	3.0mm
Jacket Material	LSZH (PVC or LSZH Available)
Wavelength	1310/1550nm
Core Size	50/125μm
Connector Color	Beige
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
Cable Printing	Standard Print (Customizable)
Warranty	3 Years After Delivery
Delivery Time	2-15 Working Days (Based on Quantity)

Product Features

Compliant with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005 standards
Low insertion loss with high return loss performance
High-density connection design for easy operation
Exceptional reliability and stability
Excellent repeatability and exchangeability

Applications

Testing Equipment

FTTX+LAN

Optical Fiber CATV

Optical Communication Systems

Telecommunications

Custom Ordering Options

Connector Type: SC, FC, LC, ST, MPO, MTP, MU, MTRJ, E2000, SMA
Mode Type: Single Mode (UPC/APC), Multimode (PC)
Cable Diameter: 0.9mm, 2.0mm, 3.0mm (Custom Sizes Available)
Jacket Material: PVC or LSZH
Fiber Count: Simplex, Duplex, 4, 6, 8, 12, 24, 48, 96 cores
Cable Type: G652D, G657A1, G657A2, G657B2, G657B3, G655, OM1, OM2, OM3-150, OM3-300, OM4, OM5
Patch Cord Length: Custom lengths available
MPO/MTP Options: Specify method (A/B/C type), gender (male/female), fiber count
