5M Length LSZH SC-LC Fiber Optic Patch Cord with ≥60dB Return Loss for Single Mode Applications

Brand Name:	New Light
Model Number:	SC -LC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector:

SC-LC

Polish:

Fiber Count:

Simplex

Retrun Loss:

≥ 60dB

Fiber Diameter:

2.0mm

Material:

Connector:

SC-LC

Polish:

Fiber Count:

Simplex

Retrun Loss:

≥ 60dB

Fiber Diameter:

2.0mm

Material:

Supply Ability:

1000000

Highlight:

single mode fiber optic cable

duplex fiber patch cord

Product Description

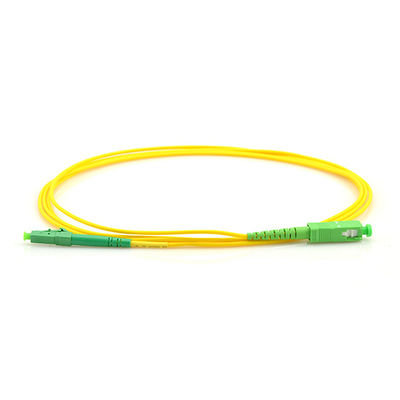

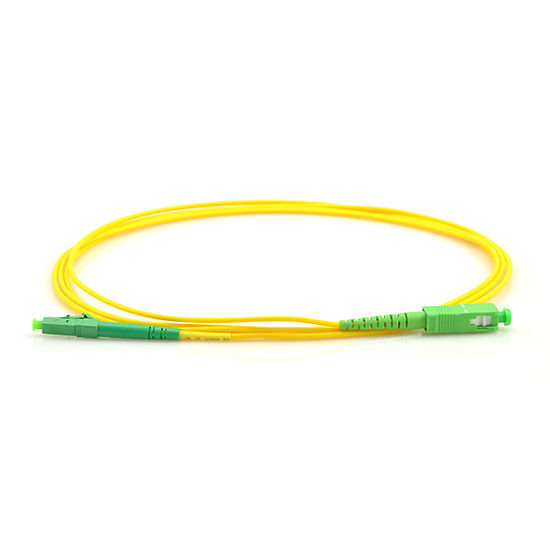

FTTH 5M Yellow Fiber Optic Patch Cord SC/LC Single Mode

This high-quality fiber optic patch cord features SC to LC connectors in green, designed for reliable data transmission in FTTH applications. The 5-meter yellow cable is constructed with single-mode G657A1 fiber for optimal performance.

Product Applications

Widely used in fiber optic sensors and data transmission systems. Ideal for connections between optical transceivers and terminal boxes in telecommunications infrastructure.

Technical Specifications

Parameter	Specification
Mode Type	Single Mode
Cable Count	Simplex
Core Type	G657A1
Cable Color	Yellow (Customizable)
Cable Diameter	3.0mm
Patch Cord Length	5 meters (Customizable)
Jacket Material	LSZH (PVC or LSZH options available)
Insertion Loss	≤ 0.3dB
Return Loss	≥65 dB
Wavelength	1310/1550nm
Core Size	9/125μm
Connector Color	Green
Ferrule Material	Ceramic
Operating Temperature	-40°C to +85°C
Cable Printing	Standard (Customizable)
Warranty	3 Years
Delivery Time	2-15 working days (quantity dependent)

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What is the pricing?

Pricing is quantity-dependent. We provide competitive pricing for bulk orders.

Can you provide FOB pricing?

We typically ship via air courier. EXW or CFR pricing is recommended for most orders.

How is your quality control?

We follow IEC standards with imported production equipment and 100% testing before delivery.

What is your lead time?

2-3 working days for 5,000 pieces. Regular products are available from stock.

What is your warranty policy?

2-year warranty for non-artificial damage. Artificial damage repairs are free with customer-paid freight.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request samples?

Free samples available for patch cords and adapters with customer-paid freight.
