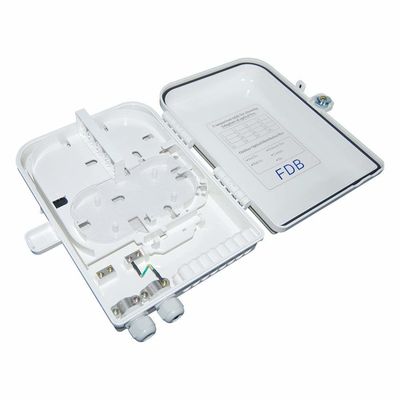

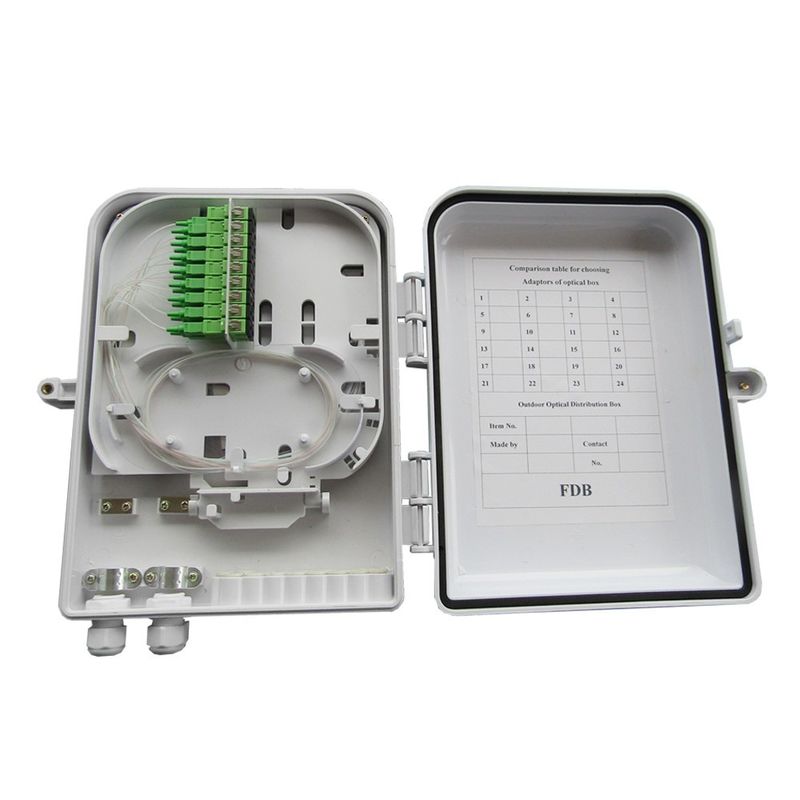

16 Core ABS Material FTTH Termination Box Wall Mountable for FTTX Access System

Brand Name: New Light
Model Number: 16 fiber
MOQ: 10
Price: 2~100
Packaging Details: standard export package
Payment Terms: T/T,Western Union,MoneyGram,paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO ,ROSH
Material:
ABS
Fiber Count:
Fiber
Size:
318（H）×265（W）×90（D）mm
Supply Ability:
10,000 pcs per month
Highlight:

outdoor fiber termination box

,

wall mount fiber termination box

Product Description
16 Core White NBDD-FQX16A FTTH Termination Box
High-quality ABS material injection molding fiber optic termination box designed for FTTX access system terminal links, compliant with YD/T2150-2010 industry standards.
Product Overview
The NBDD-FQX16A FTTH Termination Box is engineered for reliable performance in both indoor and outdoor environments. Constructed from high-strength ABS new material with excellent sealing and aging resistance properties.
Environmental Specifications
  • Operating Temperature: -40℃ to +60℃
  • Humidity: ≤95% at +40℃
  • Atmospheric Pressure: 70KPa to 108KPa
Physical Specifications
  • Dimensions: 318mm (H) * 265mm (W) * 90mm (D)
  • Weight: 1.1 kg
  • Structure: Includes box, shunt bracket, fiber melting tray, optical cable insert fixed unit, butterfly type cable fixing unit, seal components, and line-ring components
Installation Methods
Wall Mounting
  • Mark and drill 4 mounting holes according to backplane specifications
  • Install plastic expansion sleeves
  • Secure box to wall using M8 * 40mm screws
  • Position box and tighten all fasteners
  • Insert optical cables according to construction requirements
  • Secure box door with key column to prevent water ingress
Pole Mounting
  • Remove box installation backplane and hoop
  • Thread hoop through installation backplane
  • Secure backboard to pole using hoop
  • Verify secure attachment to prevent accidents
  • Follow optical cable insertion procedures as per wall mounting
Product Configuration
Product Name Model Quantity Remark
Box NBDD-FQX16A 1 pc
Fiber heat shrinkable sleeve Ф1.5*60mm 16 pcs
Nylon cable ties 3*100mm 4 pcs
Expansion bolt M8*40mm 4 pcs
Key 1 pc
Packaging Information
Packing Dimensions 560 * 350 * 530 mm
Quantity per Case 10 PCS/Case
Gross Weight 13 KG/Case
Net Weight 11 KG/Case
Contact via WhatsApp: 008613534063703
