FTTH Termination Box

16 Core White NBDD-FQX16A FTTH Termination Box ABS New Material Injection Molding

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

16 Core White NBDD-FQX16A FTTH Termination Box ABS New Material Injection Molding

Brand Name:	New Light
Model Number:	16 fiber
MOQ:	10
Price:	2~100
Packaging Details:	standard export package
Payment Terms:	T/T, Western Union, MoneyGram, paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Material:

Fiber Count:

Fiber

Size:

318（H）×265（W）×90（D）mm

Supply Ability:

10,000 pcs per month

Highlight:

outdoor fiber termination box

wall mount fiber termination box

Product Description

16 core white NBDD-FQX16A FTTH Termination box ABS new material injection molding

1. description :

The 16 core NBDD-FQX16A FTTH Termination box is produced and developed by our company, and the product’s performance in accordance with the industry standard requirements of YD/T2150-2010. It’s mainly used in FTTX access system terminal link. The box made of high strength ABS new material injection molding, which has good sealing and aging resistance. In addition, it can be hanging on the wall outdoors or indoors to install and use.

2.The main performance product

2.1. The environmental requirements:

The Temperature:-40℃～+60℃

The Humidity:≤95%(+40℃)

The atmospheric pressure:70KPa～108KPa

2.2. The structure and size of box:

2.1.1 The Size:318(H)×265(W)×90(D)mm.

2.2.2 The Weight: 1.1KG

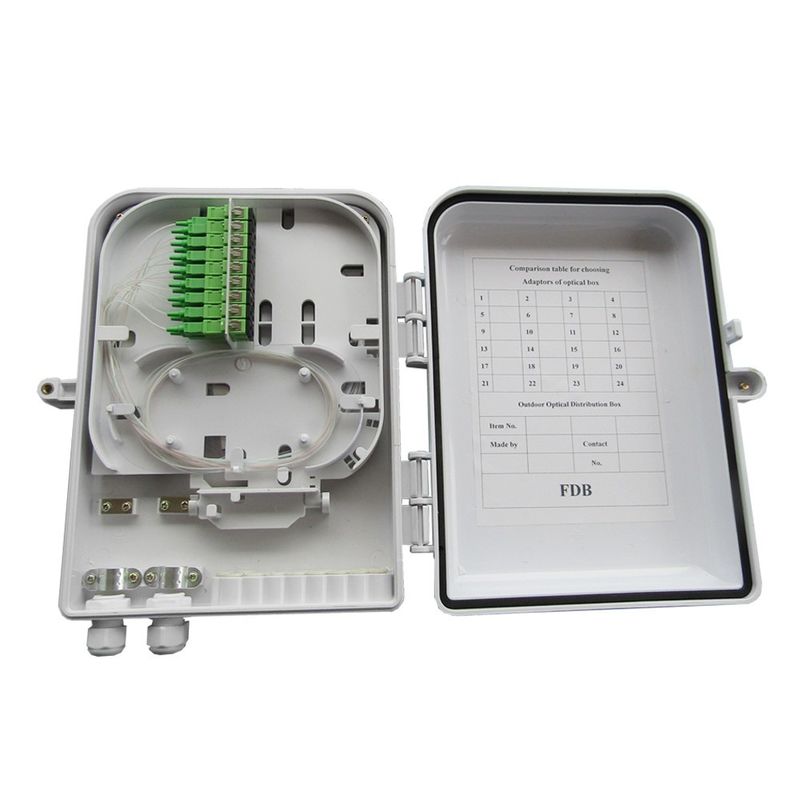

2.2.2 The Structure:the 16 core NBDD-FQX16A FTTH Termination box mainly consist of the box , shunt bracket, fiber melting tray, optical cable insert fixed unit, butterfly type cable fixing unit, seal components and line-ring components. As shown in the pictures.

3.The installation instruction of the box

3.1. Installation:Wall hanging

3.1.1 According to the backplane mounting hole’s distance, hit 4 mounting holes on the wall, and knock the plastic expansion sleeve.

3.1.2 Fixed the box on the wall with M8 * 40 screws.

3.1.3 Position the upper end of the box into the wall hole, and then use M8 * 40 screws fix the box on the wall.

3.1.4 Check the box installation, close the door after qualified. In order to prevent rainwater from entering the box, the box should be tightened by a key column.

3.1.5 Insert the outdoor optical cable and butterfly type optic cable according to the construction requirements.

3.2 Hanging rod installation

3.2.1 Remove the box installation backplane and hoop, take the hoop penetrated into the installation backplane.

3.2.2 Fixed the backboard on the pole through the hoop. In order to prevent accidents, it’s necessary to check whether the hoop locking the pole to ensure that the box is firm and reliable, no loose.

3.2.3 The box installation and the optical cable insertion is same as 3.1.3,3.1.4.

Product configuration list

Product name	Models	Quantity	Remark
Box	NBDD-FQX16A	1pc
Fiber heat shrinkable sleeve	Ф1.5×60mm	16pcs
Nylon cable ties	3×100mm	4pcs
Expansion bolt	M8×40mm	4pcs
Key		1pc

Packing

Packing measurement(MM)

560×350×530

Quality (PCS/Case)

Gross weight(KG/Case)

Net weight(KG/Case)

13KG

11KG

16 Core White NBDD-FQX16A FTTH Termination Box ABS New Material Injection Molding 1
