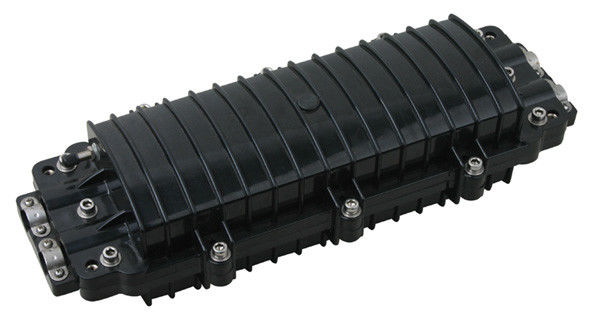

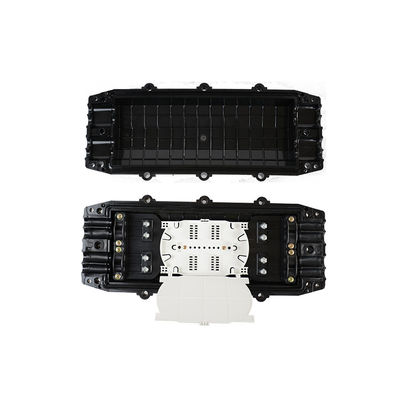

Waterproof Outdoor Fiber Optic Joint Enclosure For 24 Core ABS Material

Waterproof Outdoor Fiber Optic Joint Enclosure For 24 Core ABS Material

    • Waterproof Outdoor Fiber Optic Joint Enclosure For 24 Core ABS Material
    • Waterproof Outdoor Fiber Optic Joint Enclosure For 24 Core ABS Material
  • Waterproof Outdoor Fiber Optic Joint Enclosure For 24 Core ABS Material

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: New Light
    Certification: ISO,RoHS , CE
    Model Number: 2 in 2 out

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: can be negotiated
    Packaging Details: opp bag + carton box
    Delivery Time: 2-10 working days after received payment
    Payment Terms: T/T, Western Union, MoneyGram,paypal
    Supply Ability: 20000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Waterproof Outdoor Fiber Optic Joint Enclosure For 24 Core ABS Material Material: ABS
    Installation Type: Pole-moungting / Direct Buried Fiber Count: 24 Core
    Weight And Size: 2.1kg 460**180*110mm Material: Alimunium Alloy/PC (Polycarbonate)
    Color: Black Joint Box Max Capacity: 24 Core,96 Fibers,48 Core
    Type: Horizontal

    Fiber Optic Joint Closure Product Name



    Waterproof Outdoor Fiber Optic Joint Enclosure For 24 Core ABS Material



    The material of the Fiber optic joint closure can be customized according to your requirements .



    It have ABS material  , PC material , ABS+PC material , pollay so on  .



    There are have MOQ if you need customized material or color  .





    Fiber Optic Joint Closure Information :



    Name Waterproof Outdoor Fiber Optic Joint Enclosure For 24 Core ABS Material
    In and Out Port No. Four ports,two input two output
    Fiber optical cable diameter Small port:Φ8~Φ17.5, Big port:Φ10~Φ17.5
    Fiber melting No. Single core:1~12 cores(can be extend to 16 cores);Ribbon beam :24 cores
    Max capacity Single-core :72cores ;Ribbon beam :144cores
    Sealing way Mechanical Sealing /Heat-shrinkable sealing
    Sealing tape Unvulcanized self-adhesive sealing tape
    Installation application aerial, pole-mounting, wall-mounting and direct buried
    Material Closure body is made by Super ABS/PPR material, and the bolt was made in stainless steel
    Working Environment

    Working temperature: -5°C to +40°C,Relative humidity:≤85%(at +30°C),Atmospheric pressure: 70Kpa-106Kpa
    Weight and Size Splice closure weight:2.1kg. Size:460×180×110(mm)





    Fiber Optic Joint Closure additional parts :



    1 Insulated rubber tape two roll waterproof tape
    2 Splice cassette one set 12 core cassette
    3 Cable fixing device two stainless steel bolt sets
    4 Internal hexagonal wrench two sets
    5 Heat shrinkable tube one package
    6 stainless steel tie one set







    Fiber Optic Joint Closure Packing Details



    Packing Packed by Carton.Then covered with waterproof membrane.
    Normal splice closure factory quantity Standard quantity is 8 or 10 sets with a tolerance of 5% or other required.
    Carton Weight Approx. 24kg per carton.Carton Size:515*425*575mm



    Waterproof Outdoor Fiber Optic Joint Enclosure For 24 Core ABS Material

    FQA :



    1. Q : Are you manufacturer ?

    A: yes, we are manufacturer in Shenzhen,China



    2. Q : What's your MOQ ?

    A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .



    3. Q : What's the price ?

    A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .



    4. Q: Can you quote FOB price ?

    A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .



    We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .



    EXW price or CFR price will be better . You can contact us for more solution if you need .



    5. Q: How is your quality ?

    A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .



    All the products are 100% test before delivery .



    6. Q : Whats your lead time ?

    A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .

    For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .



    7. Q : Whats your warranty ?

    A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .



    8. Q : Whats your packing ?

    A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing



    9. Q: Can you do OEM/ODM ?

    A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .



    10. Q: Can I have a sample ?

    A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .

    For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.



    11. Q: How can I order ?

    A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .

    2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .

    3. When you accept the quotation , we will make Profoma Invoice with our bank account .

    4. We will arrange the production for you after we received payment .

    5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .

    6. We will try our best to meet your requirements for long-term cooperation .



    12. Q: What your payment term ?

    A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
