Optical Fiber Patch Cord

Duplex 62.5/125 Fiber Optic Patch Cord with Low Insertion Loss ≤0.3dB and SC-SC Connector for Mode Conditioning

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Duplex 62.5/125 Fiber Optic Patch Cord with Low Insertion Loss ≤0.3dB and SC-SC Connector for Mode Conditioning

Brand Name:	New Light
Model Number:	SC -SC ( LC ,ST ,FC ,etc )
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector:

SC-SC (SC-LC , LC-LC ,ST-LC ,ST-SC )any Connector

Polish:

PC / UPC

Fiber Count:

Duplex

Insertion Loss:

≤ 0.3dB

Fiber Type:

Simplex And Duplex, G652D, G655, Anything, SM Or MM

Insertion Loss:

≤0.3dB, < 0.2dB, <=3.0 DB

Material:

PVC, LSZH

Connector:

SC-SC (SC-LC , LC-LC ,ST-LC ,ST-SC )any Connector

Polish:

PC / UPC

Fiber Count:

Duplex

Insertion Loss:

≤ 0.3dB

Fiber Type:

Simplex And Duplex, G652D, G655, Anything, SM Or MM

Insertion Loss:

≤0.3dB, < 0.2dB, <=3.0 DB

Material:

PVC, LSZH

Supply Ability:

1000000

Highlight:

single mode fiber optic cable

duplex fiber patch cord

Product Description

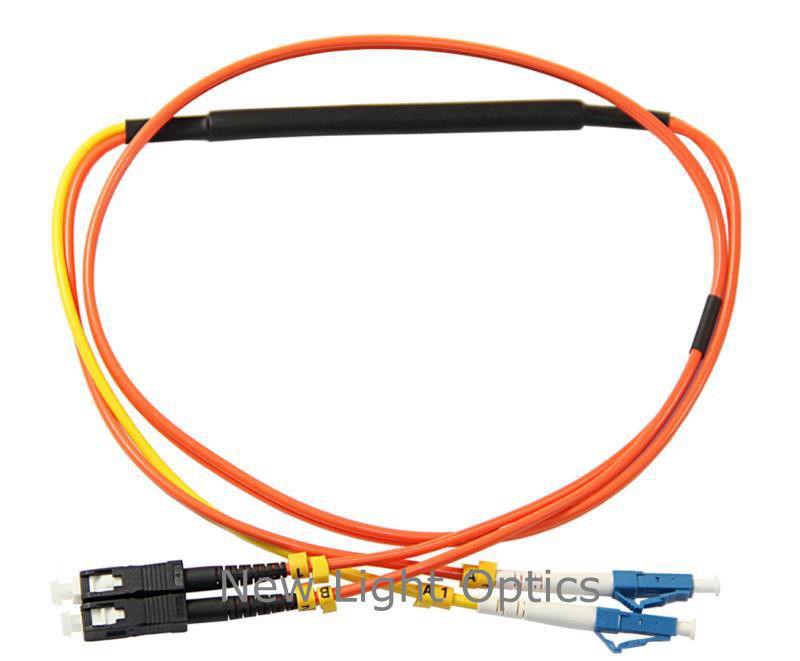

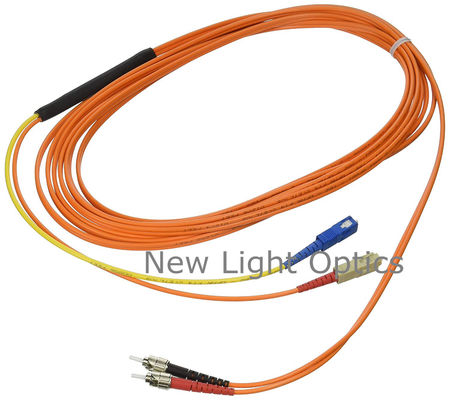

Duplex 62.5/125 Optical Fiber Patch Cord

Professional fiber optic mode conditioning jumping cable designed for 1000BASE-LX/LH Gigabit Ethernet applications in multimode cable plants.

Product Overview

New Light manufactures standard and customized length 50/125, 62.5/125 and OEM equivalent mode conditioning fiber optic patch cords for 1000BASE-LX/LH Gigabit Ethernet (1300nm long wavelength) applications installed into existing multimode cable plants.

Installation Instructions

For gigabit LX switches equipped with SC or LC connectors:

Connect the yellow leg (Singlemode) to the transmit side
Connect the orange leg (multimode) to the receive side
Maintain this configuration on both ends
Transmit and receive swapping can only be done at the cable plant side

How Mode Conditioning Works

Mode conditioning patch cords eliminate multiple signals by allowing the single-mode launch to be offset away from the center of a multimode fiber, creating a launch similar to typical multimode LED launches.

Technical Specifications

Parameter	Specification
Insertion Loss	D→B: ≤ 0.30dB (850nm, 1300nm) B→D: ≤ 0.30dB (850nm, 1300nm) C→A: ≤ 15.0dB (50/125um); ≤ 18.0dB (62.5/125um) (850nm, 1300nm) A→C: ≤ 0.30dB (850nm, 1300nm) C→A: ≤ 2.10dB (50/125um); ≤ 2.60dB (62.5/125um) (1310nm, 1550nm)
Return Loss	SM APC ≥ 60.0dB; SM UPC ≥ 50.0dB; MM PC ≥ 35.0dB
Durability	1,000 mating cycles, typical ≤ 0.20dB
Operating Temperature	-20℃ to +70℃
Storage Temperature	-40℃ to +85℃

Available Connectors

FC, ST, SC, LC and MT-RJ connectors available

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity?

MOQ can be 1 piece, but larger quantities receive more competitive pricing.

How is your product quality?

We follow IEC and European standards with imported production equipment. All products are 100% tested before delivery.

What is your lead time?

2-3 working days for 5,000 pieces. Regular products are available from stock.

What is your warranty policy?

2-year warranty for non-artificial damage. Artificial damage repairs are free with customer covering freight costs.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request samples?

Free samples available for adaptors, attenuators, patch cords, and pigtails with freight prepaid by customer.

Payment Terms: T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
