Black Metal Round SC UPC Optical Fiber Adaptor For Bare Fiber Optic Cable

Black Metal Round SC UPC Optical Fiber Adaptor For Bare Fiber Optic Cable

  • Black Metal Round SC UPC Optical Fiber Adaptor For Bare Fiber Optic Cable
  • Black Metal Round SC UPC Optical Fiber Adaptor For Bare Fiber Optic Cable
  • Black Metal Round SC UPC Optical Fiber Adaptor For Bare Fiber Optic Cable
Black Metal Round SC UPC Optical Fiber Adaptor For Bare Fiber Optic Cable
Product Details:
Place of Origin: Shenzhen China
Brand Name: New Light
Certification: CE / ISO / RoHS
Model Number: SC UPC
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: can be negotiated
Packaging Details: standard export package
Delivery Time: 2-10 working days
Payment Terms: T/T, Western Union, MoneyGram, paypal
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Material: Metal Connector Type: SC UPC
Repeatability: >1000 Times Color: Blue
Package: 10 Pcs / Plastic Plate OEM/ODM: Acceptable
Type: Singlemode Application: FTTH FTTB FTTX Network,Telecommunication/Fiber Optic CATV/Multimedia
High Light:

fiber optic cable adapter

,

sc simplex adapter

Fiber Optic Adaptor Product Name:



Black Metal round SC UPC Optical Fiber Adaptor For Bare Fiber Optic Cable





Fiber Optic Adaptor Common Description :



Bare fiber adaptor is an auxiliary tool for optical fiber data testing .Because the bare fiber adaptor plug hole and bare fiber through the hole without epoxy glue and any medium . The bare fiber is easy to be inserted and pulled out and repeatedly used ,it has low insertion loss and easy speration

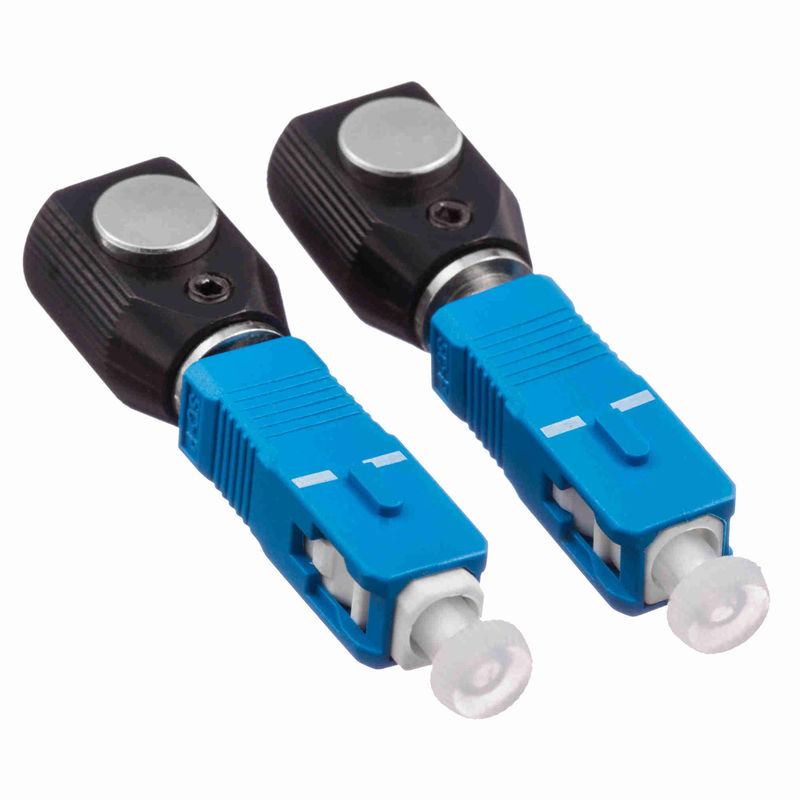

This is round type SC UPC bare fiber adaptor , the bottom is black metal material , connector is blue color SC UPC polishing  .



The color of the bottom also have gray metal color ,as the shown below . It can be choosen according to your requirements .



Fiber Optic Adaptor Prameter



Product Name black metal round SC UPC optical fiber adaptor for bare fiber optic cable
Inserion Loss ≤0.15dB
Durability >1000 times
Operating Temp -40~70°C
Material Metal
Connector Type SC
Polish Type UPC
Fiber Mode single mode
Color blue
Core simplex
Flange without
OEM/ODM acceptable





Fiber Optic Adaptor Features :



1. Connector structure , easy to be use

2.Plug and connector mudules can be replaced

3. insert hole diameter size canbe customized

4. Operation over 10000 times

5. Stable , reliable and reproducible

6. High precision of mechanical dimensions



Fiber Optic Adaptor Operation Instructions



Step 1 : Prepare materials :bare fiber adaptor , cleans pater , industrial alcohol , optical fiber scribe , optical fiber stripper .



Step 2 : the fiber coating was stripped 15-20mm



Step 3 : used the industrial alcohol clean the fiber



Step 4 :  press the fiber adaptor switch (square bare fiber adaptor press the plywood, round bare fiber adaptor press the round button ). Slowly push the fiber along the inlet hole until it extends out of the fiber - opitc ferrule 4-6mm to release the fiber switch to compress the fiber  .



Step 5 : use the optical fiber cross pen , cut open the bottom of the fiber is exposed at the end of the ceramic . then put the fiber broken ,after the end of use the fiber will be pulled out repeatability





​Fiber Optic Adaptor Type :



Black Metal Round SC UPC Optical Fiber Adaptor For Bare Fiber Optic Cable 0

Black Metal Round SC UPC Optical Fiber Adaptor For Bare Fiber Optic Cable 1



FQA :



1. Q : Are you manufacturer ?

    A: yes, we are manufacturer in Shenzhen,China



2. Q : What's your MOQ ?

    A:  MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .



3. Q : What's the price ?

    A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price  .



4. Q: Can you quote FOB price ?

    A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .



    We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .



EXW price or CFR price will be better . You can contact us for more solution if you need  .



5. Q: How is your quality ?

    A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments  .



        All the products are 100% test before delivery .



6. Q : Whats your lead time ?

    A :  We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc  .

          For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs  . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us  .



7. Q : Whats your warranty ?

    A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage  . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .



8. Q :  Whats your packing ?

    A :  We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing



9. Q: Can you do OEM/ODM  ?

    A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement  .



Packing for reference :



Black Metal Round SC UPC Optical Fiber Adaptor For Bare Fiber Optic Cable 2
