Black Metal SC UPC Fiber Optic Adapter for Bare Fiber with >1000 Times Durability

Brand Name:	New Light
Model Number:	SC UPC
MOQ:	100
Price:	0.08~1.5
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Material:

Metal

Connector Type:

SC UPC

Repeatability:

>1000 Times

Color:

Package:

10 Pcs / Plastic Plate

OEM/ODM:

Acceptable

Type:

Singlemode

Application:

FTTH FTTB FTTX Network,Telecommunication/Fiber Optic CATV/Multimedia

Supply Ability:

1000000

Highlight:

fiber optic cable adapter

sc simplex adapter

Product Description

Black Metal Round SC UPC Optical Fiber Adaptor For Bare Fiber Optic Cable

Bare fiber adaptor is an auxiliary tool for optical fiber data testing. Because the bare fiber adaptor plug hole and bare fiber through the hole without epoxy glue and any medium, the bare fiber is easy to be inserted and pulled out and repeatedly used. It has low insertion loss and easy separation.

This is round type SC UPC bare fiber adaptor with black metal bottom material and blue SC UPC polishing connector. Gray metal color bottom is also available upon request.

Technical Specifications

Parameter	Specification
Product Name	Black metal round SC UPC optical fiber adaptor for bare fiber optic cable
Insertion Loss	≤0.15dB
Durability	>1000 times
Operating Temperature	-40°C to 70°C
Material	Metal
Connector Type	SC
Polish Type	UPC
Fiber Mode	Single mode
Color	Blue
Core	Simplex
Flange	Without
OEM/ODM	Acceptable

Product Features

Connector structure, easy to use
Plug and connector modules can be replaced
Insert hole diameter size can be customized
Operation over 10000 times
Stable, reliable and reproducible
High precision of mechanical dimensions

Operation Instructions

Prepare materials: bare fiber adaptor, cleaning paper, industrial alcohol, optical fiber scribe, optical fiber stripper
Strip the fiber coating 15-20mm
Clean the fiber with industrial alcohol
Press the fiber adaptor switch (square bare fiber adaptor press the plywood, round bare fiber adaptor press the round button). Slowly push the fiber along the inlet hole until it extends out of the fiber-optic ferrule 4-6mm, then release the fiber switch to compress the fiber
Use the optical fiber cross pen to cut the exposed fiber end at the ceramic, then pull out the fiber for repeatability

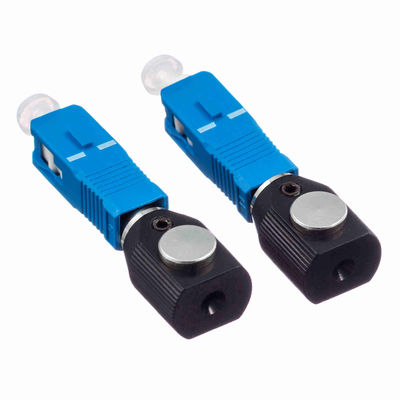

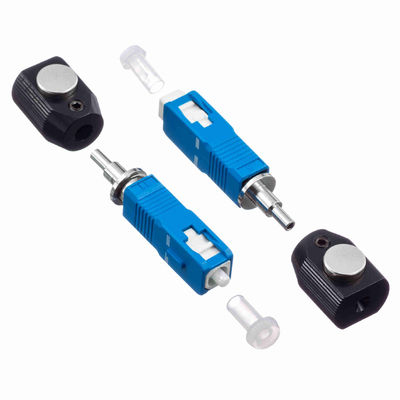

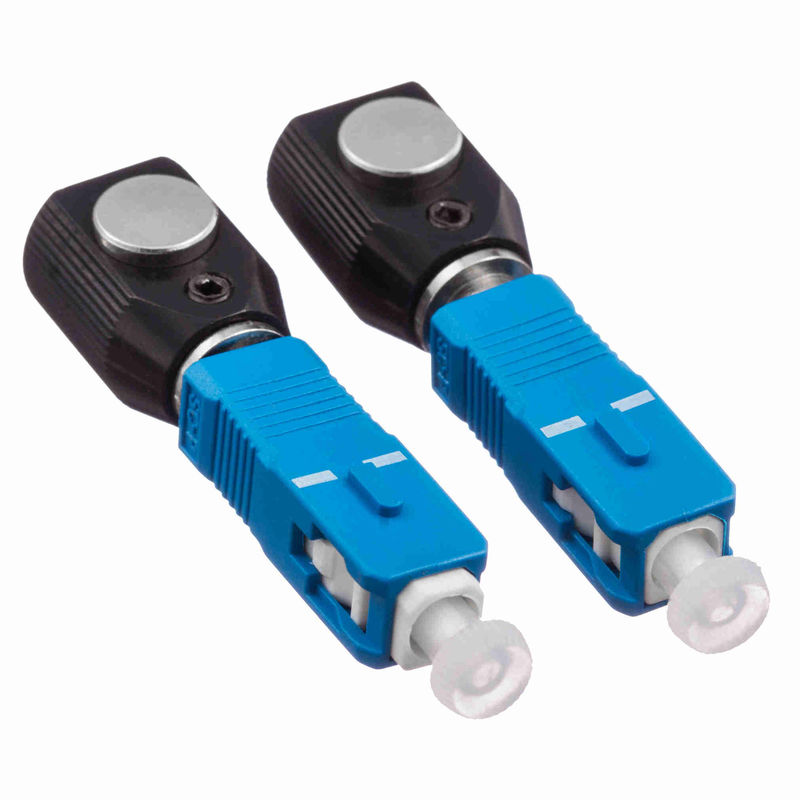

Product Images

WhatsApp: 008613534063703

Frequently Asked Questions

Are you manufacturer?

Yes, we are manufacturer in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we don't recommend ordering just 1 piece as the cost and price will be higher. Larger quantities receive better pricing.

What's the price?

Price depends on quantity. We offer competitive pricing for larger quantities.

Can you quote FOB price?

Yes, but due to small size and weight, most deliveries are by air (DHL, TNT, UPS, FEDEX). We recommend EXW or CFR pricing. We offer competitive logistics solutions for both small and large quantities.

How is your quality?

Our production follows IEC and European standards in nearly dust-free workshops with imported production and quality control equipment. All products are 100% tested before delivery.

What's your lead time?

We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pieces. Regular products are in stock and we handle urgent orders.

What's your warranty?

Patch cords have 2-year warranty for non-artificial damage. For artificial damage, we repair for free but customer pays freight.

What's your packing?

We use international export packaging and can print your logo on the packaging.

Can you do OEM/ODM?

Yes, we accept OEM/ODM and can sign confidentiality agreements.
