SC Bare Fiber Adaptor Square Shape Single Mode UPC Polishing for FTTH FTTB FTTX Networks

Brand Name:	New Light
Model Number:	SC UPC
MOQ:	100
Price:	0.08~1.5
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Adaptor Shape:

Square Shape

Bottom Color:

Repeatability:

>1000 Times

Connector Color:

Blue UPC Polishing

Package:

10 Pcs / Plastic Plate

OEM/ODM:

Acceptable

Material:

Gray Metal

Application:

FTTH FTTB FTTX Network,Telecommunication/Fiber Optic CATV/Multimedia

Supply Ability:

1000000

Highlight:

sc simplex adapter

lc fiber optic adapter

Product Description

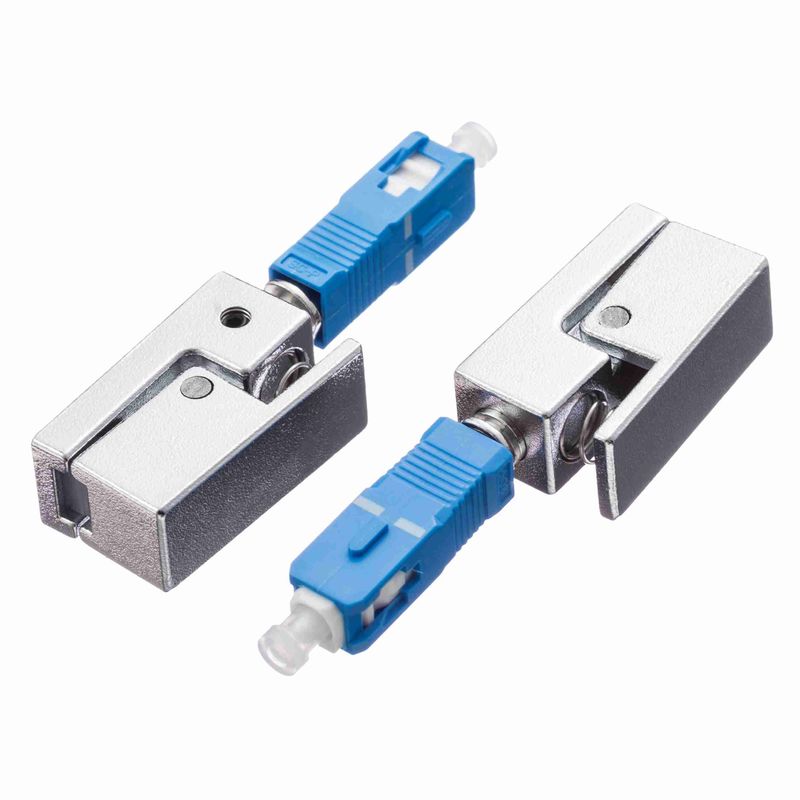

SC Bare Fiber Adaptor - Square Shape Single Mode UPC Polishing

This square-shaped metal SC bare fiber adaptor features a blue SC connector with UPC polishing ceramic ferrule and a square metal base. Highly regarded by clients for its reliable performance and ease of use.

Bare fiber adaptors are essential tools for optical fiber data testing, offering convenient installation without epoxy glue or additional mediums. Simply remove the cable coating and insert the bare fiber through the hole. These adaptors provide low insertion loss, easy operation, and support repeated use.

Product Specifications

Parameter	Specification
Product Name	SC Bare Fiber Adaptor Square Shape Single Mode UPC Polishing
Insertion Loss	≤0.15dB
Durability	>1000 times
Operating Temperature	-40°C to 70°C
Material	Metal (gray color)
Connector Type	SC Single Mode
Polish Type	UPC polishing ferrule
Fiber Mode	G652D, G657A1, G657A2, G657B3, G655, etc.
Connector Color	Blue
Core Count	Simplex
Flange	Without
OEM/ODM	Acceptable
Packing	10 pcs / plastic plate
MOQ	10 pcs

Key Features

Simple connector structure for easy operation
Replaceable plug and connector modules
Customizable insert hole diameter sizes
Operation lifespan exceeding 10,000 cycles
Stable, reliable, and reproducible performance
High precision mechanical dimensions

Operation Instructions

Prepare materials: bare fiber adaptor, cleaning paper, industrial alcohol, optical fiber scribe, and optical fiber stripper
Strip 15-20mm of fiber coating
Clean the fiber with industrial alcohol
Press the fiber adaptor switch and slowly push the fiber through the inlet hole until it extends 4-6mm from the ferrule, then release to compress the fiber
Use an optical fiber scribe to cut the exposed fiber end and remove the broken fiber tip

Product Images

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

Minimum order quantity is 1 piece, but we recommend ordering larger quantities for better pricing.

What's the price?

Pricing depends on quantity. We provide competitive pricing for larger orders.

Can you quote FOB price?

We typically ship via air courier (DHL, TNT, UPS, FedEx). For large orders, we can provide sea freight options. EXW or CFR pricing is preferred.

How is your quality?

We produce according to IEC and European standards in near dust-free workshops using imported equipment. All products undergo 100% testing before delivery.

What's your lead time?

We operate three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are available from stock.

What's your warranty?

Patch cords include 2-year warranty for non-artificial damage. Artificial damage repairs are free, but customer covers shipping costs.

What's your packing?

We use international export packaging and can print customer logos on packaging.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Packaging Reference
