SC Bare Fiber Adapter with Metal Material UPC Polish and Square Shape for FTTH FTTB Networks

Brand Name:	New Light
Model Number:	SC UPC
MOQ:	100
Price:	0.08~1.5
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Adaptor Shape:

Square Shape

Installation:

Press

Repeatability:

>1000 Times

Connector Color:

SC UPC

Package:

Foam + Carton Box

OEM/ODM:

Acceptable

Material:

Metal

Application:

FTTH FTTB FTTX Network,Telecommunication/Fiber Optic CATV/Multimedia

For Fiber Type:

9/125um G652D,G657A1,G657A2,etc

Supply Ability:

1000000

Highlight:

sc simplex adapter

lc fiber optic adapter

Product Description

SC Bare Optical Fiber Adapter UPC Single Mode

Professional SC UPC single mode bare fiber adapter featuring metal construction and square design for reliable optical fiber testing applications.

Product Overview

This SC UPC bare fiber adapter is designed for single mode applications with blue connector color indicating UPC polishing. The adapter features simple installation and is widely used for optical fiber data testing due to its convenience and low insertion loss.

Technical Specifications

Parameter	Specification
Product Name	SC Bare Optical Fiber Adapter UPC Single Mode Type Metal Material Square Adaptor
Insertion Loss	≤0.15dB
Durability	>1000 times
Operating Temperature	-40°C to 70°C
Material	Metal
Connector Type	SC
Polish Type	UPC
Fiber Mode	G652D, G657A1, G657A2, G657B3, G655, etc.
Connector Color	Blue
Core Count	Simplex
Flange	Without
Packing	10 pcs / plastic plate
MOQ	10 pcs

Key Features

Simple connector structure for easy operation
Plug and connector modules are replaceable
Customizable insert hole diameter size
Operation capability exceeding 10,000 times
Stable, reliable, and reproducible performance
High precision mechanical dimensions

Operation Instructions

Prepare materials: bare fiber adapter, cleaning paper, industrial alcohol, optical fiber scribe, and optical fiber stripper
Strip 15-20mm of fiber coating
Clean the fiber using industrial alcohol
Press the fiber adapter switch and slowly push the fiber along the inlet hole until it extends 4-6mm from the fiber optic ferrule
Release the fiber switch to compress the fiber
Use optical fiber cross pen to cut the exposed fiber end and remove broken fiber

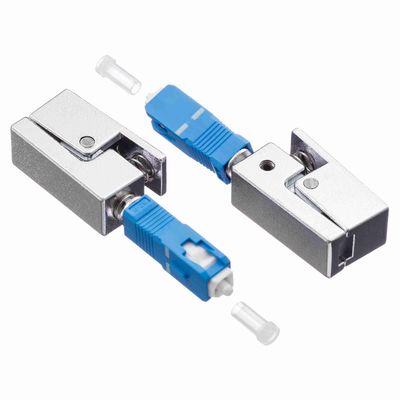

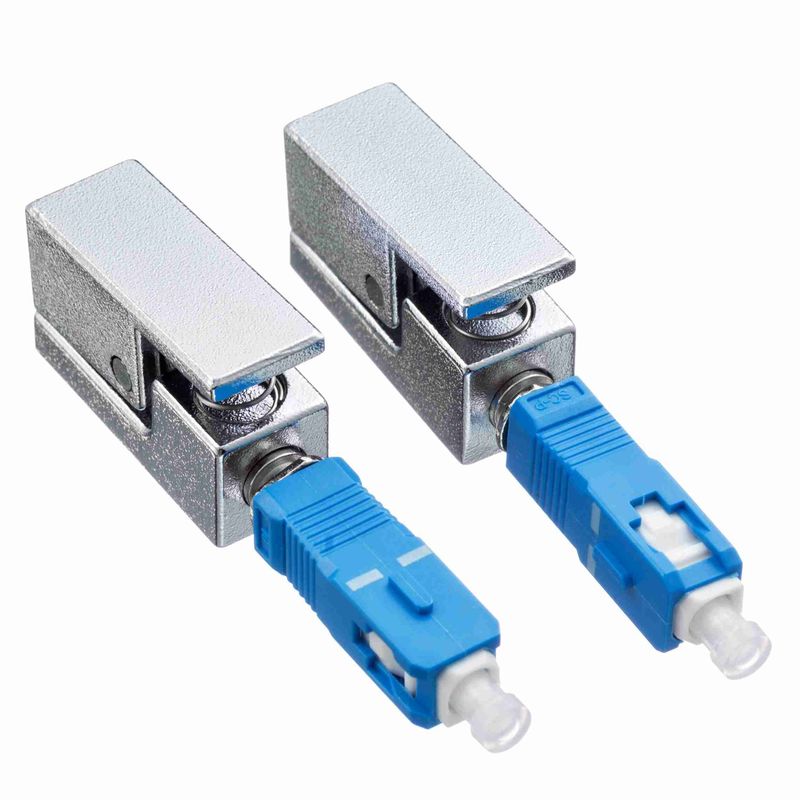

Product Images

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What is the price?

Pricing depends on quantity. We offer competitive pricing for larger orders.

Can you provide FOB pricing?

We typically ship via air freight (DHL, TNT, UPS, FedEx). EXW or CFR pricing is recommended for most orders.

How is your quality control?

We follow IEC and European standards with imported production equipment. All products undergo 100% testing before delivery.

What is your lead time?

We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces.

What is your warranty policy?

We offer 2 years warranty for patch cords for non-artificial damage.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Packaging

We use international export packaging and can customize with your logo upon request.
