|Adaptor Shape:||Square Shape||Installation:||Press|
|Repeatability:||>1000 Times||Connector Color:||SC UPC|
|Package:||Foam + Carton Box||OEM/ODM:||Acceptable|
|Material:||Metal||Application:||FTTH FTTB FTTX Network,Telecommunication/Fiber Optic CATV/Multimedia|
|For Fiber Type:||9/125um G652D,G657A1,G657A2,etc|
sc simplex adapter,
lc fiber optic adapter
Fiber Optic Adaptor Product Name:

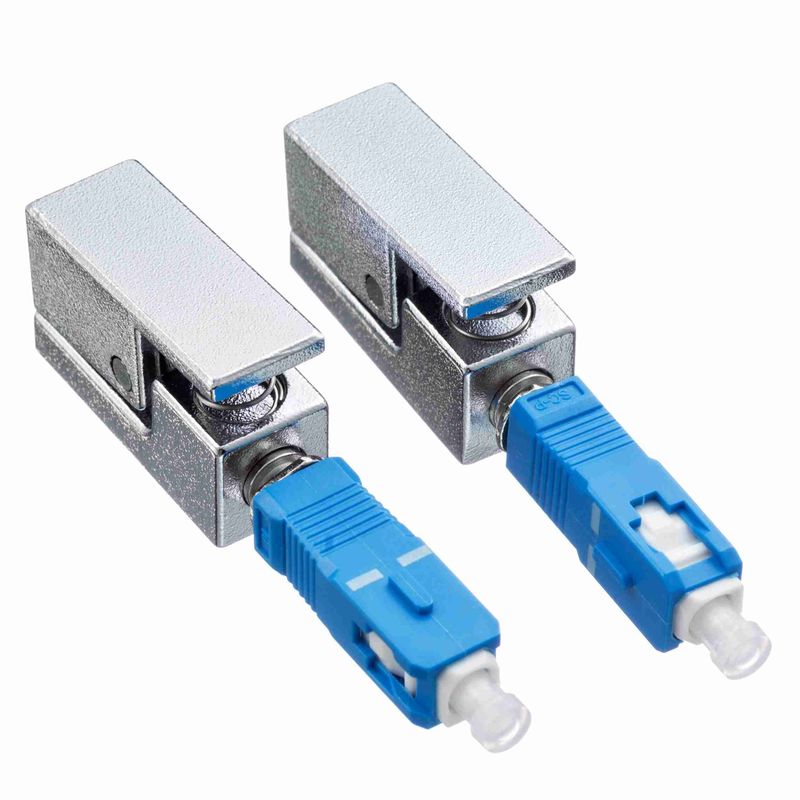

SC Bare Optical Fiber Adapter UPC Single Mode Type Metal Material Square Adaptor
Fiber Optic Adaptor Description :
SC UPC is single mode , ferrule is UPC polishing ,connector color is blue color . APC also is single mode,but there are different , it is green color connector ,and the ferrule is 8° angle polishing . When you order the connector , except let us know single mode or multi mode , also need let us know the ferrule polishing type , PC / UPC / APC . So we can provide the right products for you .
This type of SC bare fiber adaptor has simple installation .After you received , opend the packing , take out the SC adaptor ,Press the plywood ,Slowly push the fiber along the inlet hole until it extends out of the fiber - opitc ferrule 4-6mm to release the fiber switch to compress the fiber . then you can install it very easy .
Bare fiber adaptor is an widly use tool for optical fiber data testing .Because It it very convenient to use and install . After finished remove the coating on the cable , use the bare fiber through the hole without epoxy glue and any medium . The bare fiber is easy to be inserted and pulled out and repeatedly used ,it has low insertion loss and easy operation
Fiber Optic Adaptor Prameter
|Product Name||SC Bare Optical Fiber Adapter UPC Single Mode Type Metal Material Square Adaptor|
|Fiber Mode||G652D ,G657A1 ,G657A2 ,G657B3 ,G655,etc|
|Color of connector||blue|
|packing||10 pcs / plastic plate|
Fiber Optic Adaptor Features :
1. Connector structure , easy to be use
2.Plug and connector mudules can be replaced
3. insert hole diameter size canbe customized
4. Operation over 10000 times
5. Stable , reliable and reproducible
6. High precision of mechanical dimensions
Fiber Optic Adaptor Operation Instructions
Step 1 : Prepare materials :bare fiber adaptor , cleans pater , industrial alcohol , optical fiber scribe , optical fiber stripper .
Step 2 : the fiber coating was stripped 15-20mm
Step 3 : used the industrial alcohol clean the fiber
Step 4 : press the fiber adaptor switch (square bare fiber adaptor press the plywood, round bare fiber adaptor press the round button ). Slowly push the fiber along the inlet hole until it extends out of the fiber - opitc ferrule 4-6mm to release the fiber switch to compress the fiber .
Step 5 : use the optical fiber cross pen , cut open the bottom of the fiber is exposed at the end of the ceramic . then put the fiber broken ,after the end of use the fiber will be pulled out repeatability
Fiber Optic Adaptor Type :
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .
Packing for reference :
