Fiber Optic Adapter

Metal Material UPC Polish SC Connector Fiber Optic Adapter with Easy Installation for FTTH Network

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Metal Material UPC Polish SC Connector Fiber Optic Adapter with Easy Installation for FTTH Network

Brand Name:	New Light
Model Number:	SC UPC
MOQ:	100
Price:	0.08~1.5
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Adaptor Shape:

Round Type

Installation:

Without Tool ,press Button

Repeatability:

>1000 Times

Connector Color:

SC UPC

Package:

Standard Export Package

OEM/ODM:

Acceptable

Material:

Plastic + Metal

Application:

FTTH FTTB FTTX Network,Telecommunication/Fiber Optic CATV/Multimedia

For Fiber Type:

Single Mode Cable

Supply Ability:

1000000

Highlight:

fiber optic cable adapter

sc simplex adapter

Product Description

SC Bare Fiber Optic Adapter - Metal UPC Couplers

Round type SC bare optic fiber adapters with UPC and APC ferrule polishing types. These hot-selling connectors are widely used for testing, data control systems, and various fiber optic telecommunications applications due to their easy installation method.

Available Options

Available in two bottom colors: black and gray (gray is more popular). Please specify your preferred color and ferrule polishing type when inquiring.

Easy Installation Process

Simple installation saves time and reduces tool requirements. Press the plywood soft, slowly push the fiber along the inlet hole until it extends 4-6mm from the fiber-optic ferrule, then release the fiber switch to compress the fiber.

Technical Specifications

Parameter	Specification
Insertion Loss	≤0.15dB
Durability	>1000 times
Operating Temperature	-40°C to 70°C
Material	Metal
Connector Type	SC
Bottom Shape	Round type
Polish Type	UPC single mode
Fiber Mode	G652D, G657A1, G657A2, G657B3, G655, etc.
Connector Color	Blue
Core Count	Simplex
Flange	Without
OEM/ODM	Available
Packing	10 pcs / plastic plate
MOQ	10 pcs (contact for sample information)

Key Features

Simple connector structure for easy use
Replaceable plug and connector modules
Customizable insert hole diameter size
Operation over 10,000 times
Stable, reliable, and reproducible performance
High precision mechanical dimensions

Operation Instructions

Materials Needed: bare fiber adapter, cleaning paper, industrial alcohol, optical fiber scribe, optical fiber stripper

Strip fiber coating 15-20mm
Clean fiber with industrial alcohol
Press fiber adapter switch and slowly push fiber along inlet hole until it extends 4-6mm from ferrule
Release fiber switch to compress fiber
Use optical fiber cross pen to cut exposed fiber end and remove broken fiber

Contact: WhatsApp 008613534063703

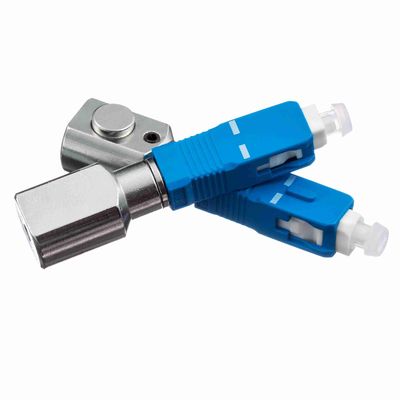

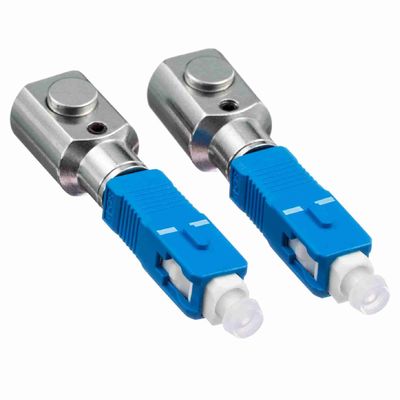

Product Images

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we recommend larger quantities for better pricing.

Q: What's the price?

A: Pricing depends on quantity. We offer competitive pricing for larger orders.

Q: Can you quote FOB price?

A: We typically ship via air freight (DHL, TNT, UPC, FEDEX). EXW or CFR pricing is preferred.

Q: How is your quality?

A: We follow IEC and European standards with imported production equipment. All products are 100% tested before delivery.

Q: What's your lead time?

A: 2-3 working days for 5000 pieces of fiber optic patch cords. Regular products are in stock.

Q: What's your warranty?

A: 2 years warranty for patch cords for non-artificial damage.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for adapters, attenuators, patch cords, and pigtails (freight paid by customer).

Packing Reference
