MPO MTP Cable OM3 OM4 Patch Cord with Male or Female Connector and 8 12 24 Fiber Options

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP

Material:

LSZH Or PVC

Mode Type:

OM3/OM4

Core Type:

8/12/24 Core

Cable Color:

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

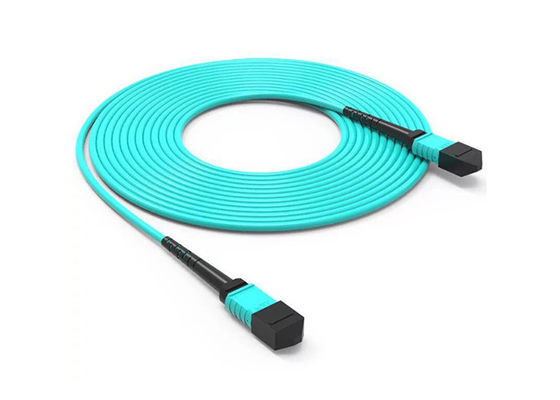

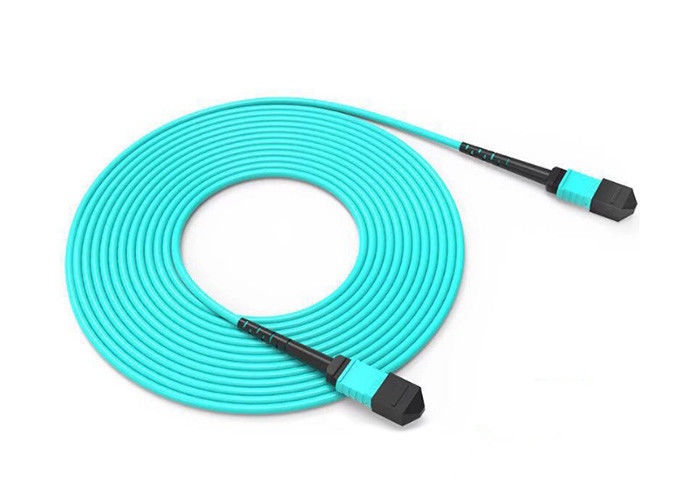

MPO/MTP Trunk Cable - OM3/OM4 Patch Cord

High-density MPO/MTP male or female trunk cable assemblies with 8, 12, or 24 fiber configurations for data center and enterprise network applications.

Product Overview

MPO/MTP ribbon and trunk multicore cable assemblies enable rapid deployment of high-density backbone cabling in data centers and other high-fiber environments. These solutions significantly reduce network installation and reconfiguration time and costs.

MTP/MPO connectors are designed to interconnect cassettes, panels, or fan-outs, available in standard 8, 12, 24, or 48 core versions using compact and rugged microcable structures. The compact design optimizes cableway utilization and improves airflow.

All MPO/MTP cables are manufactured with premium quality components. Low loss elite versions are available, featuring minimal insertion loss for demanding high-speed networks where power budgets are critical.

Applications

Data communication networks
Optical system access networks
Storage area networking fiber channel
High density architectures

Key Features

100% pre-terminated and factory tested to ensure optimal transfer performance
Rapid configuration and networking reduces installation time
Supports 40G and 100G network applications
Available jacket materials: LSZH, OFNR, OFNP
Supports up to 12F, 24F, 48F, 72F, 96F, 144F configurations
Customized products available upon request

Technical Specifications

Parameter	Specification
Connector	MPO/MTP (Female or Male)
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	Single-mode: ≤ 0.75dB (standard), ≤0.35dB (typical) Multi-mode: ≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	Single-mode: ≥60dB; Multi-mode: ≥35dB

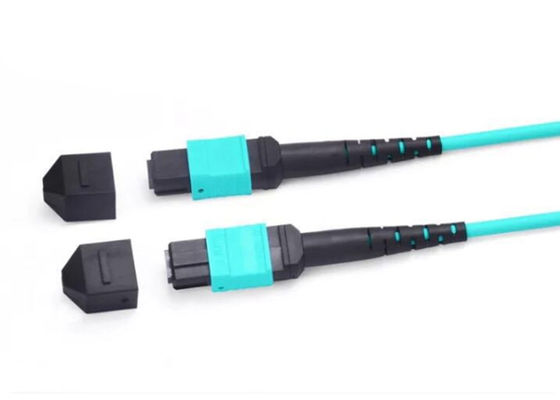

MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12, 24 fiber
Connector Types	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652, G655, G657), Multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, bundle fiber optic cable

Polarity Methods

Three polarity methods (Type A, Type B, and Type C) are used to guarantee proper bi-directional allocation.

Packaging

Products are packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact: WhatsApp +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single unit costs are higher.

What are your prices?

Pricing depends on quantity. We provide competitive pricing for bulk orders upon request.

Can you quote FOB prices?

We typically ship via air courier (DHL, TNT, UPS, FEDEX) and recommend EXW or CFR pricing. Sea freight options available for large volume orders.

How is your quality control?

We manufacture according to IEC and European standards in near dust-free workshops using imported production and quality control equipment. All products undergo 100% testing before delivery.

What is your lead time?

We operate three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are typically in stock.

What is your warranty policy?

Patch cords carry a 2-year warranty against non-artificial damage. Artificial damage repairs are free, but freight costs are the customer's responsibility.

What packaging do you use?

We use international export packaging and can print customer logos upon request.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request samples?

Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays freight). For high-value products, sample charges apply but are refundable with orders.

How do I place an order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue a proforma invoice upon acceptance. Production begins after payment confirmation.

What are your payment terms?

We accept T/T, Western Union, PayPal, and MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
