MPO MTP Cable MPO Patch Cord with 8 / 12 / 24 Fiber Core Customizable Length and Low Insertion Loss

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MT / MPO / MTP

Material:

PVC(OFNR OFNP) Or LSZH

Mode Type:

SM/OM1/OM2/OM3/OM4/OM5

Core Type:

4/8/12/24 Core

Cable Color:

Yellow / Aqua / Magenta

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

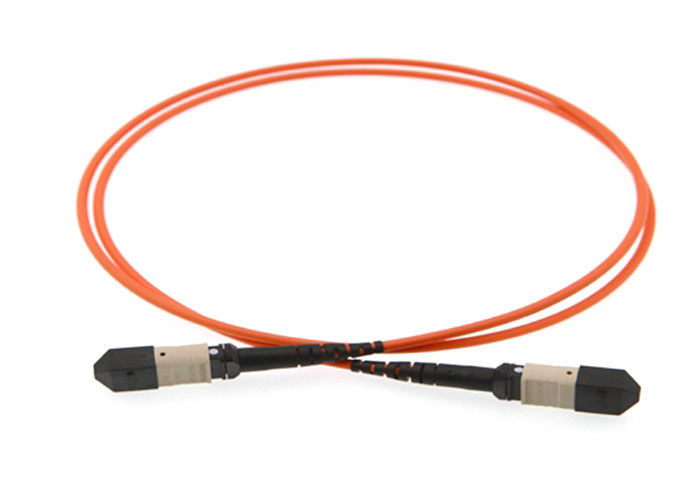

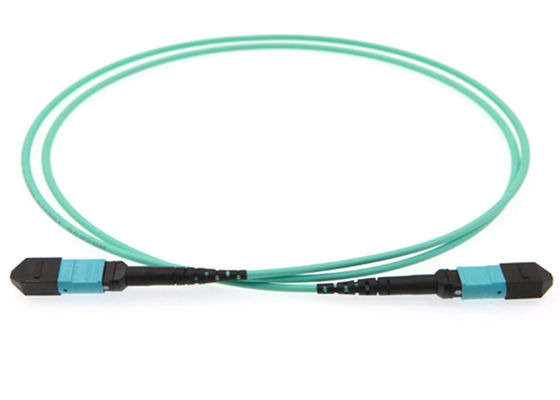

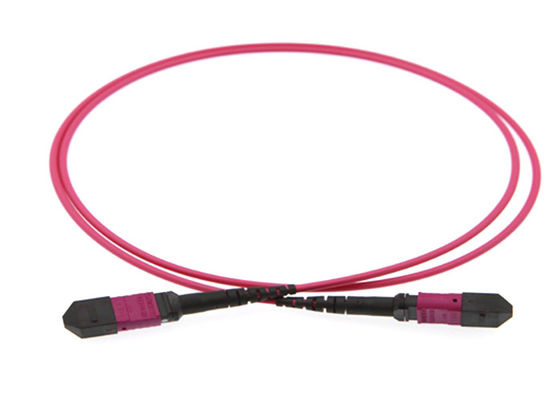

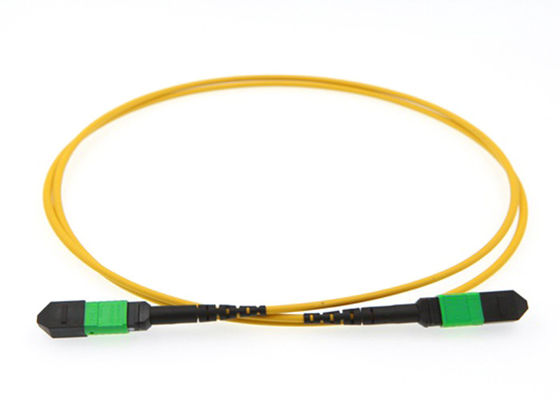

MPO to MPO Patch Cord Trunk Cable

High-performance MPO/MTP trunk cables available in 8, 12, and 24 fiber core configurations for reliable data center and telecom applications.

Product Overview

The MTP/MPO connector features a push-pull latching mechanism with audible click for secure connections. Precision molded MT ferrules, combined with metal guide pins and exact housing dimensions ensure optimal fiber alignment during mating. These cables interconnect cassettes, panels, or fan-outs and are available in standard 8, 12, 24, or 48 core versions using compact, rugged microcables that optimize cable management and improve airflow.

Built with premium components, our low loss elite versions offer minimal insertion loss for demanding high-speed networks where power budgets are critical.

Applications

Telecom networks
System cabling infrastructure
Precision telecom equipment
Cable loopback inspection

Key Features

Single-mode or multi-mode options available
PC (plane) or APC (8 degree) connector types
Various insertion loss indices and color options
Stable performance with PIN fixed positioning
Plug type connector with locking structure
High density design for efficient wiring and management
Compliant with Telcordia GR-1435-CORE and RoHS standards

Technical Specifications

Parameter	Specification
Connector	MPO/MTP (Female or Male)
Operating Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	Single-mode: ≤ 0.75dB (standard), ≤0.35dB (typical) Multi-mode: ≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	Single-mode: ≥60dB Multi-mode: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12, 24 fiber
Other End Connector	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652, G655, G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, bundle fiber optic cable

Polarity Methods

Three polarity methods (Type A, Type B, and Type C) ensure proper bi-directional allocation for reliable connectivity.

Packaging & Shipping

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact Information

WhatsApp: +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-unit orders incur higher costs.

What are your prices?

Pricing varies by quantity. We provide competitive quotes based on your specific requirements and order volume.

Can you provide FOB pricing?

Yes, though most shipments are via air courier (DHL, TNT, UPS, FedEx). We recommend EXW or CFR pricing for optimal freight solutions.

How is your product quality?

We adhere to IEC and European standards with near dust-free production facilities, imported equipment, and comprehensive quality control. All products undergo 100% testing before shipment.

What is your lead time?

With three specialized factories, we can process 5,000 patch cords in 2-3 working days. Regular products are typically in stock for immediate shipment.

What is your warranty policy?

Patch cords carry a 2-year warranty against non-artificial damage. Artificial damage repairs are free, with freight costs covered by the customer.

What packaging do you use?

International export-standard packaging with optional custom logo printing available.

Do you offer OEM/ODM services?

Yes, we support both OEM and ODM with confidentiality agreements available.

Can I request samples?

Free samples available for adaptors, attenuators, patch cords, and pigtails (freight paid by customer). Higher-value products require sample charges.

How do I place an order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue a proforma invoice upon acceptance.

What are your payment terms?

T/T, Western Union, PayPal, MoneyGram. For large orders: 50% deposit, 50% balance before shipment.
