Fiber Optic Adapter

Metal Material FC Fiber Optic Adapter for Single Mode Bare Fiber with Easy Installation

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Metal Material FC Fiber Optic Adapter for Single Mode Bare Fiber with Easy Installation

Brand Name:	New Light
Model Number:	FC UPC
MOQ:	100
Price:	0.08~1.5
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Adaptor Shape:

Longer Type FC

Installation:

Without Tool ,press Button

Connector Color:

SC UPC

Material:

Metal

Application:

FTTH FTTB FTTX Network,Telecommunication/Fiber Optic CATV/Multimedia

For Fiber Type:

Single Mode Bare Fiber Cable

Product Name:

FC Bare Optic Fiber Adapter Gray Metal FC Fiber Optic Connector Couplers

Warranty:

1 Year

Supply Ability:

1000000

Highlight:

fiber optic cable adapter

sc simplex adapter

Product Description

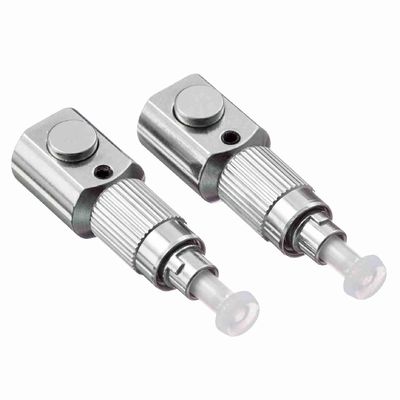

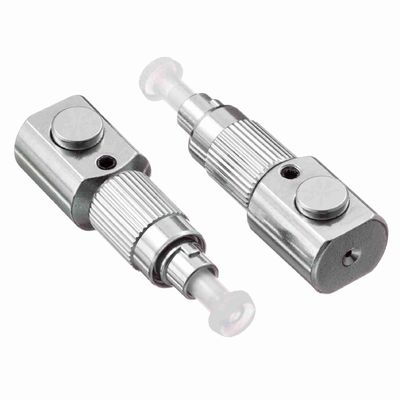

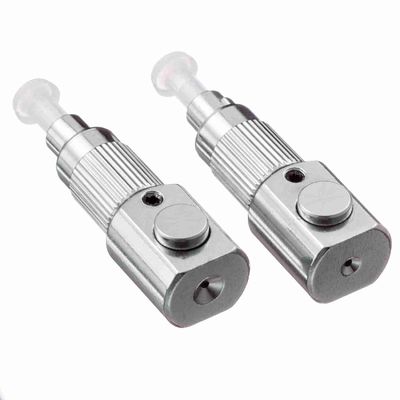

FC Bare Optic Fiber Adapter

Gray Metal FC Fiber Optic Connector Couplers for reliable fiber optic connectivity solutions.

Product Overview

This FC connector bare fiber optic cable adapter is available in two configurations: long FC connector type and short FC connector type. Both variants offer identical functionality with the only difference being length, allowing selection based on specific application requirements.

Bare fiber optic adapters are widely utilized across various applications due to their straightforward installation process and versatility in testing, data control systems, and telecommunications environments.

Key Advantages

Streamlined installation minimizes time requirements and reduces the need for multiple tools. The installation process involves pressing the plywood soft, gradually inserting the fiber through the inlet hole until it extends 4-6mm beyond the fiber-optic ferrule, then releasing the fiber switch to secure the connection.

These adapters serve as essential tools for optical fiber data testing, offering convenience in installation and operation. After removing the cable coating, the bare fiber passes through the hole without requiring epoxy glue or additional mediums. The design facilitates easy insertion, removal, and repeated use while maintaining low insertion loss.

Technical Specifications

Product Name	FC Bare Optic Fiber Adapter Gray Metal FC Fiber Optic Connector Couplers
Insertion Loss	≤0.15dB
Durability	>1000 times
Operating Temperature	-40°C to 70°C
Material	Metal
Connector Type	FC
Bottom Shape	Long FC Type
Polish Type	UPC Single Mode
Fiber Mode	G652D, G657A1, G657A2, G657B3, G655, etc.
Connector Color	Gray
Core Count	Simplex
Flange	Without
OEM/ODM	Available
Packing	10 pcs / plastic plate
MOQ	10 pcs (contact for sample information)

Product Features

Connector structure designed for ease of use
Replaceable plug and connector modules
Customizable insert hole diameter sizes
Operation capability exceeding 10,000 cycles
Stable, reliable, and reproducible performance
High precision mechanical dimensions

Installation Instructions

Step 1: Prepare materials: bare fiber adapter, cleaning paper, industrial alcohol, optical fiber scribe, optical fiber stripper.

Step 2: Strip 15-20mm of fiber coating.

Step 3: Clean the fiber using industrial alcohol.

Step 4: Press the fiber adapter switch (square bare fiber adapter: press plywood; round bare fiber adapter: press round button). Slowly push the fiber along the inlet hole until it extends 4-6mm beyond the fiber-optic ferrule, then release the fiber switch to compress the fiber.

Step 5: Use optical fiber cross pen to cut the exposed fiber end at the ceramic. After fiber breakage, the fiber can be pulled out for repeatability.

Product Types

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What is the pricing?

Pricing varies by quantity. We provide competitive pricing for bulk orders.

Can you provide FOB pricing?

We typically ship via air freight (DHL, TNT, UPS, FEDEX). EXW or CFR pricing is recommended for optimal freight solutions.

How is your quality control?

We adhere to IEC and European standards with imported production equipment. All products undergo 100% testing before delivery.

What is your production lead time?

We maintain three factories in China with rapid production capabilities. Standard products are typically in stock, with 2-3 working days for 5,000 pieces of fiber optic patch cords.

What is your warranty policy?

Patch cords include 2-year warranty for non-artificial damage. Artificial damage repairs are free with customer covering freight costs.

What packaging do you use?

International export packaging with optional custom logo printing available.

Do you offer OEM/ODM services?

Yes, we support OEM/ODM and can sign confidentiality agreements.

Can I request samples?

Free samples available for adapters, attenuators, patch cords, and pigtails with freight prepaid by customer.

How do I place an order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue proforma invoice upon acceptance.

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.

Packaging Reference

Contact Us: WhatsApp 008613534063703
