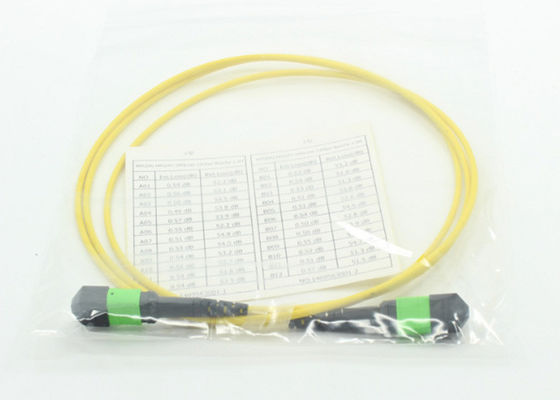

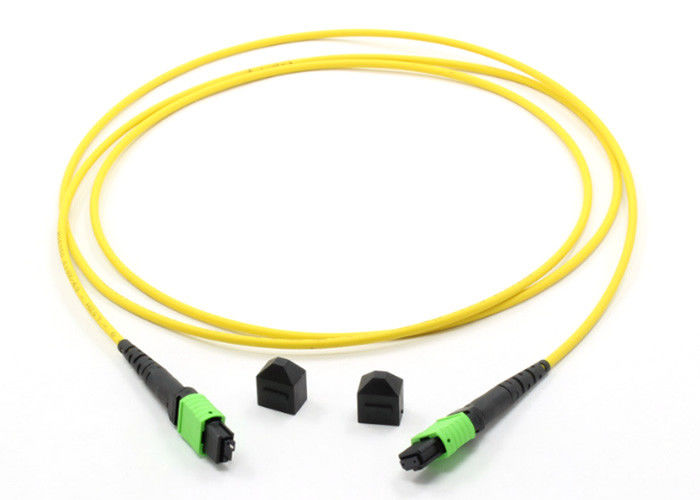

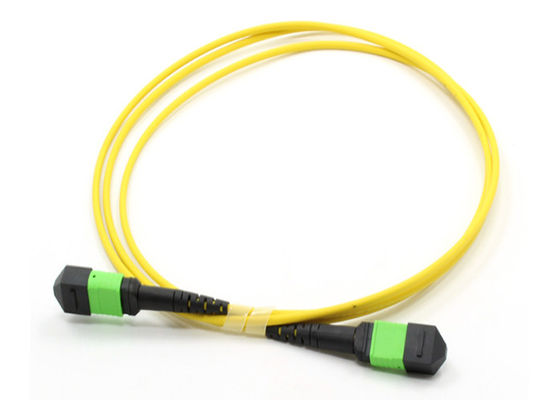

Single Mode MPO MTP Cable MPO Male to MPO Female 8/12 Fiber Patch Cord with LSZH Material

Brand Name:	New Light
Model Number:	MPO / Male - MPO / Female
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

CE , ISO , RoHS

Connector Type:

MPO Male / MPO Female

Material:

Mode Type:

Single Module

Core Type:

8 Core / 12 Core

Cable Color:

Yellow

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

MPO MTP Trunk Cable - MPO Male to MPO Female Single-Mode 8/12 Fiber Patch Cord

High-performance MPO MTP trunk cables designed for modern data center and network infrastructure applications, available with 8, 12, and 24 fiber sub-units to support Base-8, Base-12, or Base-24 connectivity requirements.

Product Overview

These premium MPO/MTP cables are manufactured with the highest quality components. Low loss elite versions are available featuring minimal insertion loss for demanding high-speed networks where power budgets are critical.

Applications

Regional network wiring between different buildings
Optical link interconnection in active devices
Data communication networks
Optical system access networks
Storage area network fiber channel
High-density architecture deployments

Key Features

Rapid configuration and networking, reducing installation time
Supports 40G and 100G network applications
Multiple jacket materials available: LSZH, OFNR, OFNP
Supports fiber counts from 12F to 144F with custom options

Technical Specifications

Parameter	Specification
Connector	MPO/MTP (Female or Male)
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	Single-mode: ≤0.75dB (standard), ≤0.35dB (typical) Multi-mode: ≤0.50dB (standard), ≤0.35dB (typical)
Return Loss	Single-mode: ≥60dB Multi-mode: ≥35dB

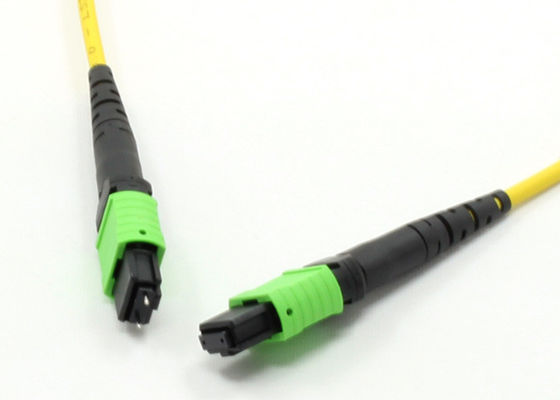

MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Options	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652, G655, G657), Multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, bundle fiber optic cable

Polarity Methods

Three polarity methods (Type A, Type B, and Type C) are used to guarantee proper bi-directional allocation for optimal network performance.

Packaging & Shipping

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact Us: WhatsApp +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-unit orders incur higher costs.

What is the pricing?

Pricing is quantity-dependent. We provide competitive pricing for bulk orders upon request with specifications and quantities.

Can you quote FOB price?

We primarily ship via air couriers (DHL, TNT, UPS, FEDEX). For large shipments, we can provide sea freight options. EXW or CFR pricing is preferred.

How is your quality control?

We follow IEC and European standards with near dust-free workshops, imported production equipment, and 100% testing before delivery.

What is your lead time?

We operate three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pieces, with regular products in stock.

What is your warranty policy?

Patch cords include a 2-year warranty for non-artificial damage. Artificial damage repairs are free, but freight costs are customer responsibility.

What is your packaging?

We use international export packaging and can print customer logos upon request.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request samples?

Free samples available for adaptors, attenuators, patch cords, and pigtails (freight paid by customer). High-value products require sample charges.

How do I place an order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue a proforma invoice upon acceptance.

What are your payment terms?

T/T, Western Union, PayPal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
