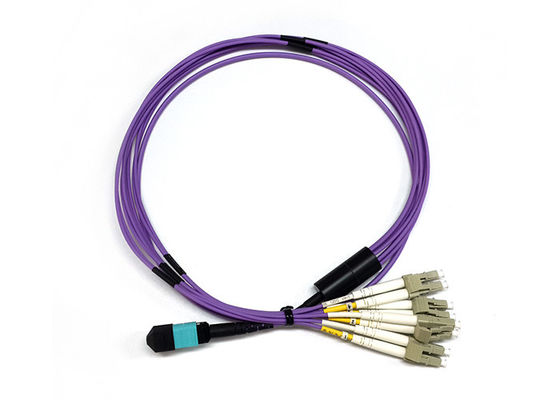

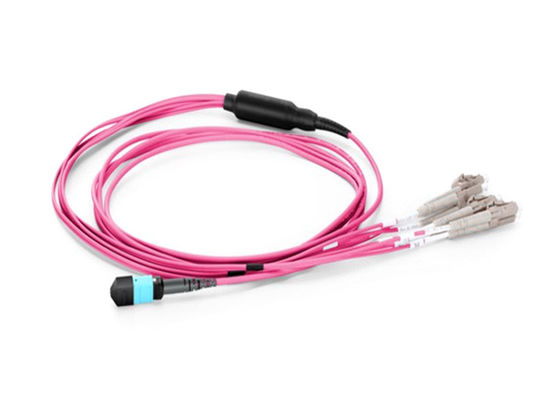

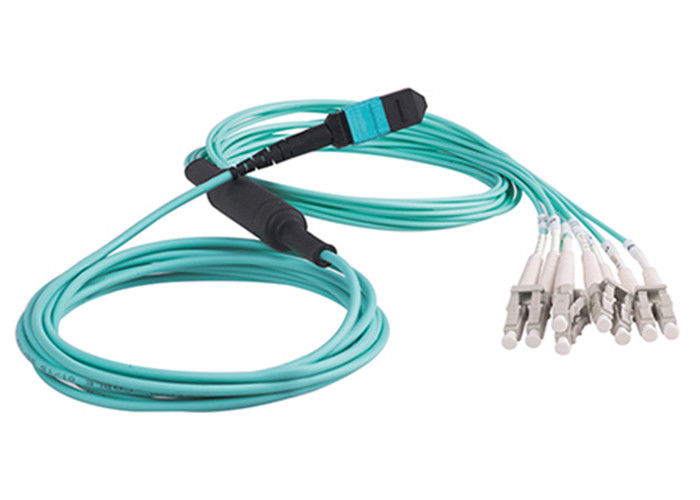

MPO MTP Fan Out Cable 8/12/24 Core Fiber Optic Patch Cord with Customizable Length and Low Insertion Loss

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

MPO MTP Fan Out Cable 8/12/24 Core Fiber Optic Patch Cord with Customizable Length and Low Insertion Loss

Brand Name:	New Light
Model Number:	MPO - LC / MTP - LC
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP, LC, FC, SC, ST

Cable Material:

LSZH Or PVC

Fiber Type:

G652D/G657A1/G657A2/OM3/OM4

Core Type:

8/12/24 Core

Cable Color:

Yellow/Aqua/Violet/Magenta

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

MPO MTP Fan Out Cable - MPO to LC Duplex Breakout 8/12 Fiber Optic Patch Cord

Product Overview

MPO MTP Fan Out Cable breakout LC/FC/SC/ST connector, designed to adapt 8, 12, or 24 cores within a single module unit. These assemblies are engineered to directly interconnect MTP/MPO cassettes, panels, or backbone trunk assemblies with active equipment ports, optimizing data center rack space and simplifying fiber management. By replacing traditional MTP/MPO module Fan-Out Assemblies, they reduce interconnection complexity and improve power budget efficiency.

Applications

Light signal connections in residential, industrial park, and commercial building computer rooms
Optical fiber communication systems, cable television networks, and telecommunication networks
Short distance connections within single racks or cabinets
Storage Area Networks
Data center infrastructure

Key Features

Multiple fiber connectivity system
Customizable cable and fan-out lengths
High density and backbone cabling with plug-and-play functionality
Available in 8/12/24 core fiber configurations
Compact design for easy management
Low IL & Standard IL insertion loss options
Custom connection methods for QSFP requirements

Technical Parameters

Parameter	Specification
Connector	MPO/MTP (F or M)
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
MPO Insertion Loss	SM: ≤ 0.75dB (standard), ≤0.35dB (typical); MM: ≤ 0.50dB (standard), ≤0.35dB (typical)
MPO Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Type (Other End)	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, Bundle fiber optic cable

Technical Drawings

Packaging

Products are securely packaged using OPP bags and outer carton boxes to ensure protection during delivery and transportation.

Contact: WhatsApp +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single unit costs are higher.

What's the price?

Pricing depends on quantity. We provide competitive pricing for larger orders upon request.

Can you quote FOB price?

Yes, but due to typically small size and weight, most shipments are via air couriers. We recommend EXW or CFR pricing for optimal freight solutions.

How is your quality?

We adhere to IEC and European standards with near dust-free workshops, imported production equipment, and 100% product testing before delivery.

What's your lead time?

With three factories in China, we maintain 2-3 working days lead time for 5000 pieces of fiber optic patch cords, with regular products in stock.

What's your warranty?

2-year warranty for patch cords covering non-artificial damage. Artificial damage repairs are free with customer covering freight costs.

What's your packing?

International export packaging with optional custom logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails with freight prepaid. Higher value products require sample charges.

How can I order?

Contact us with product specifications and quantity. We'll provide pricing, lead time, and proforma invoice. Production begins after payment confirmation.

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
