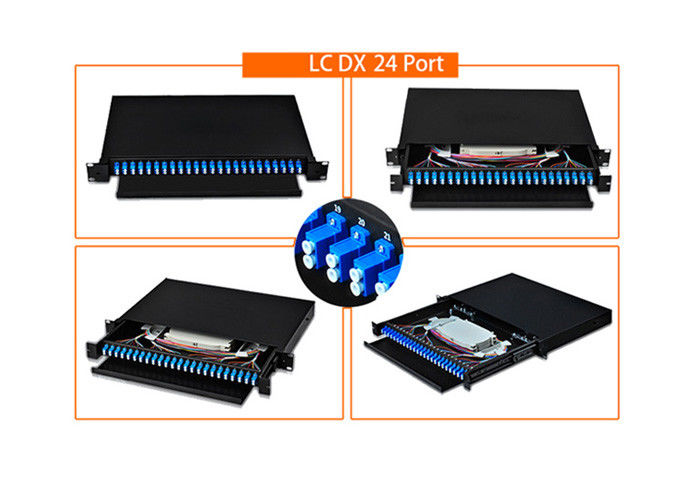

19 Inch 24 LC Port Fiber Optic Patch Panel with Cold Plate Spray Molding for Data Centers

Brand Name:	New light
Model Number:	12/ 24 core ptach panel
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Port:

24 LC

Color:

Black / Gray

Material:

SPECC

Aplication:

Data Centers,pre-terminated Installations

Adapter Type:

LC/SC/FC/ST

Front Panel:

LC , SC , ST , FC , E2000

Size:

19 Inch

Max Capacity:

From 12 Fiber To 144 Fiber

Interface:

Powder Coated

Product Name:

24 Fiber Rack Mounted MPO/MTP Fiber Optic Patch Panel

Tray:

12/24/48/72/96 Fiber

Weight:

Supply Ability:

10000 per day

Highlight:

fiber optic accessories

fiber optic termination panel

Product Description

1U Fiber Optic Patch Panel - Cold Plate Spray Molding Square Hole Single Module

This 1U cold plate spray molding square hole single module fiber optic patch panel is designed for efficient fiber optic management in telecommunications and networking applications.

Product Overview

Our comprehensive fiber optic management solution includes patch panels, distribution frames, distribution boxes, ODF units, indoor/outdoor wall boxes, and optical terminal boxes. These products are essential for connecting indoor/outdoor optical cables, patch cords, and pigtails in fiber optic networks.

The sliding drawer type fiber optic distribution box with 48 ports serves as a fiber optic splice patch panel/ODF, specifically designed for FTTH network connections. Featuring a 1U cold rolled steel pull-out type single mode fiber patch panel, it provides reliable distribution and terminal connection capabilities for various optical fiber systems.

The modular box encapsulation structure, when combined with wiring boxes, offers compact design, high density, and convenient operation for network technicians.

Configuration Options

Available in multiple configurations to accommodate various fiber core requirements: 12-core, 24-core, 36-core, 48-core, 72-core, 96-core, and 144-core fiber applications. Compatible with various adapter interfaces including SC, ST, FC, LC, MTRJ, and E2000. Related fiber accessories and pigtails are available as optional components.

Applications

Telecommunications subscriber loop systems
Fiber to the Home (FTTH) deployments
LAN/WAN network infrastructure
CATV and broadband distribution systems

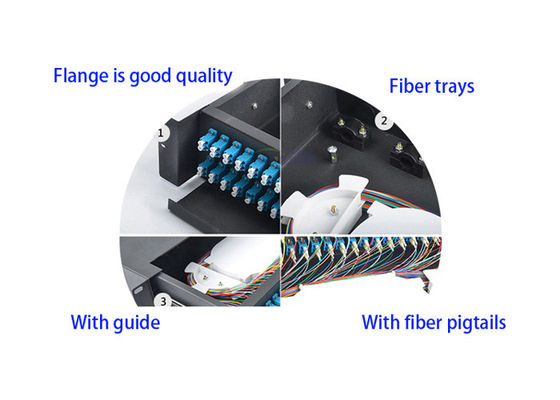

Key Features

Designed for branch connection of optical cable termination
19-inch standard rack mounting structure
Compatible with various adapter installations
Drawer structure for easy operation and maintenance
Compact design optimizes space utilization
Simplified management and operation procedures
Standard dimensions with lightweight, rational structure

Mechanical and Environmental Specifications

Parameter	Specification
Operating Temperature	-25℃ to +40℃
Storage Temperature	-25℃ to +55℃
Relative Humidity	≤85% (+30℃)
Air Pressure	70Kpa to 106Kpa
Color	Black

Dimensions

Model	Fiber Quantity	Height	Dimensions (LWH)
Rack Mount	12/24/48/96 Core	1U	430 * 354.1 * 44mm
